Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KW10-Z7P
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Operating Temperature:
- -25℃~+75℃, -25℃~+75℃
- Protection Level:
- IP40
- Item:

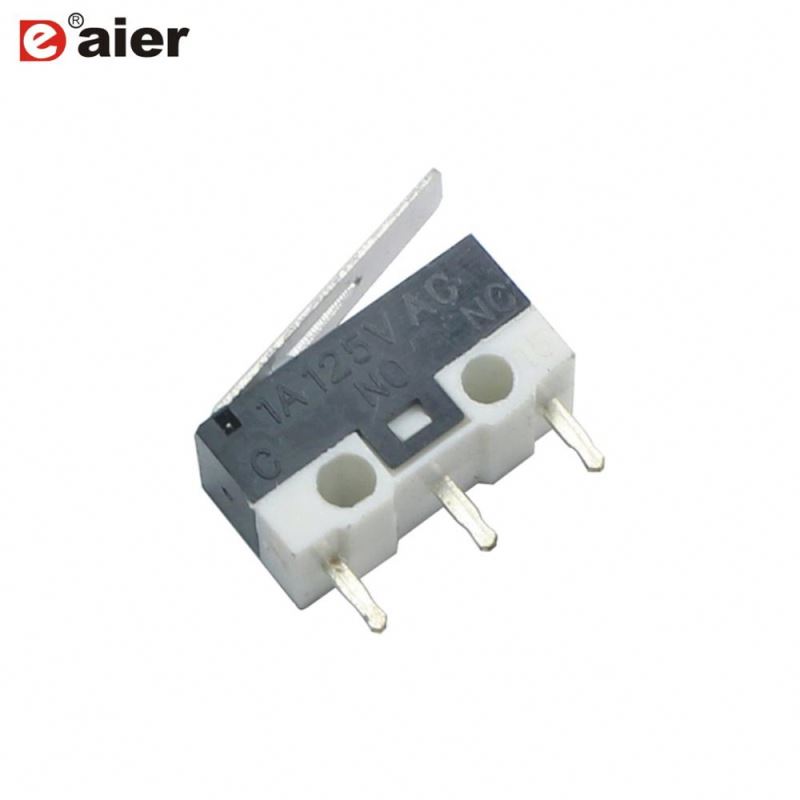

- T75 1A Single Pole 3 Pins ON OFF Defond Micro Switch With Long Lever
- Rating:
- 1A 125VAC / 3A 250VAC
- Housing Color:
- Black
- Terminal:
- PCB Terminal
- Lever:
- Long Lever
- Operating Force:
- 0.75N
- Switch Function:
- SPDT
- Certification:
- TUV
- Electrical Life:
- ≥10000 Cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 28X10X10 cm
- Gross weight per batch:
- 0.98 kg
- Package Type:
- 1000pcs/box,5000pcs/carton of T75 1A Single Pole 3 Pins ON OFF Defond Micro Switch With Long Lever

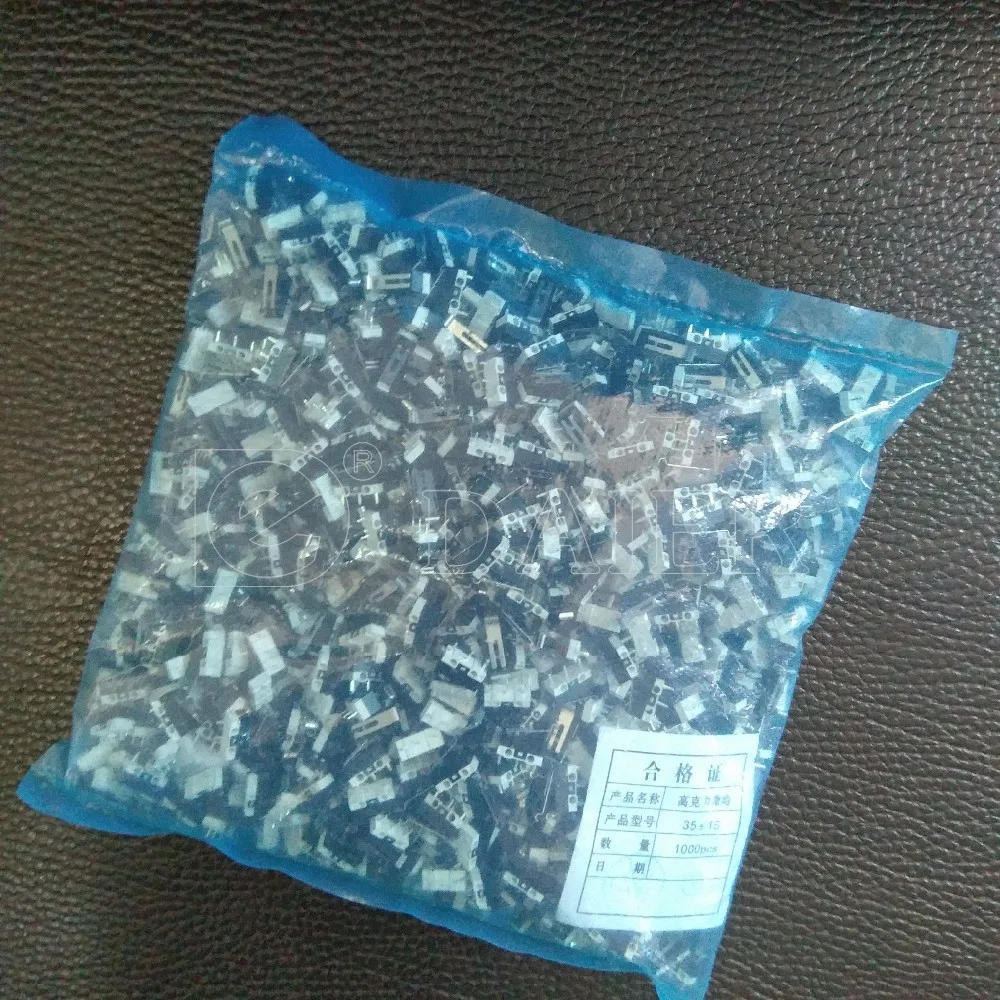

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1000000 >1000000 Est. Time(days) 7 To be negotiated
Product Description
KW10 micro switch is rated for controlling electrical loads ranging from logic-level/computer-based circuits to limited power-duty switching (up to 3 A/125 Vac).
The terminal is available with either solder terminals or a variety of different styles of printed circuit board (PCB) terminals to fulfill the requirements for electrical connectivity
