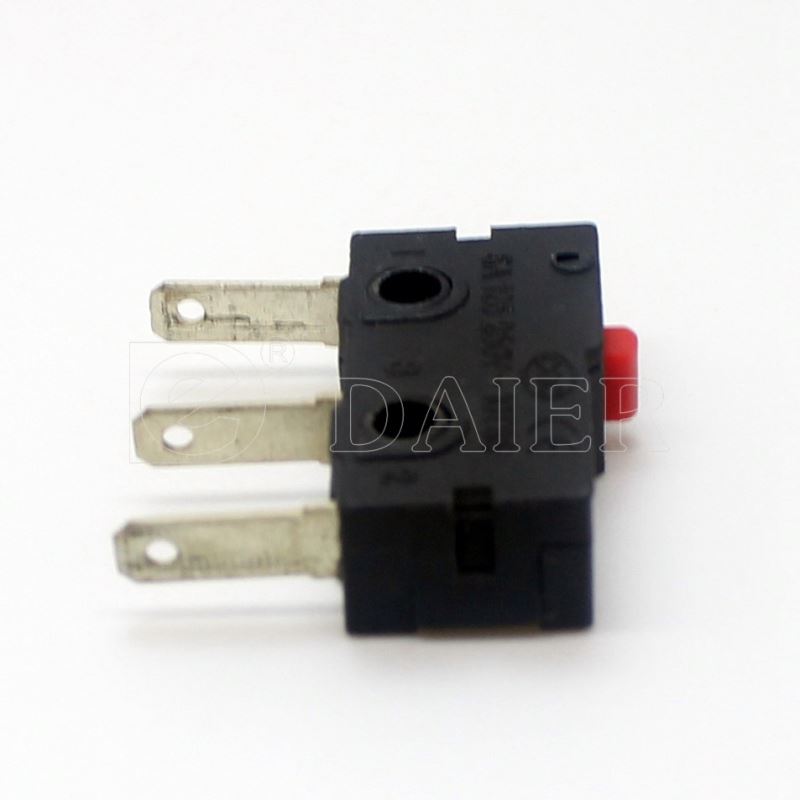

5A 3Pin Long Solder Terminal micro switch KW4-Z1T

Click on the image to view the original image

Product：	views：35A 3Pin Long Solder Terminal micro switch KW4-Z1T
Branch：	Daier
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:11

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: KW4-Z1T, 5a micro switch KW4-Z1T

Max. Current:: 5A

Max. Voltage:: 250V, 125/250VAC

Operating Temperature:: -25℃ - +85℃, -25℃~+85℃

Protection Level:: IP40

Material:: Plastic

Certificate:: CE,Rohs,CQC

Pin type:: Long Solder terminal

Function:: NO or NC

Packing:: Carton Box

OEM&ODM:: Yes

Free Sample:: Available

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 28X20X10 cm

Gross weight per batch:: 3.2 kg

Package Type:: 50pcs/box, 100pcs/bag, 4000pcs/carton for KW10 waterproof microswitch

Lead Time:

Quantity(Piece)	1 - 10000	>10000
Est. Time(days)	7	To be negotiated

MProduct Description

Item	5A 3Pin Long Solder Terminal micro switch KW4-Z1T
Function	SPDT
Rating	5A 250VAC
Contact Resistance	35mΩmax
Insulation Resistance	500VDC 1000MΩ Minute
Dielectric Strength	1500VAC,1 Minute
Operating Temperature	-25°C~+85°C
Operating Force	150:1.5N

Micro Product Show

KW4 Series Micro Switch:

This is a micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.

The degree protection provided by enclosure can be reached IP40.

Electrical ratings from low levels up to 5 Amps, and a broad range of operating forces from 50GF to 400GF.

KW4 Series Micro Switch:

The micro switch terminal styles include PCB through hole, quick connect, screw and solder.

Mounting options include vertical, right angle, PCB and snap-in mounting.

They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
