Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KW1-103-Z1A
- Max. Current:
- 16A
- Max. Voltage:
- 250VAC
- Operating Temperature:
- -25℃~+85℃, -25℃~+85℃
- Protection Level:
- IP40
- Item:
- 16A 250VAC 3 Pin SPDT KW3 oz Micro Switch Without Lever
- Rating:
- 16A 250VAC
- Housing Color:
- Green, Black
- Switch Function:
- SPDT
- Terminal Options:
- Quick-connect Terminal
- Operating Force:
- 1~3N
- Lever:
- No Lever
- Certification:
- TUV
- Electrical Life:
- ≥10000 Cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X10X10 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- 100pcs/box,5000pcs/carton of 16A 250VAC 3 Pin SPDT KW3 oz Micro Switch Without Lever

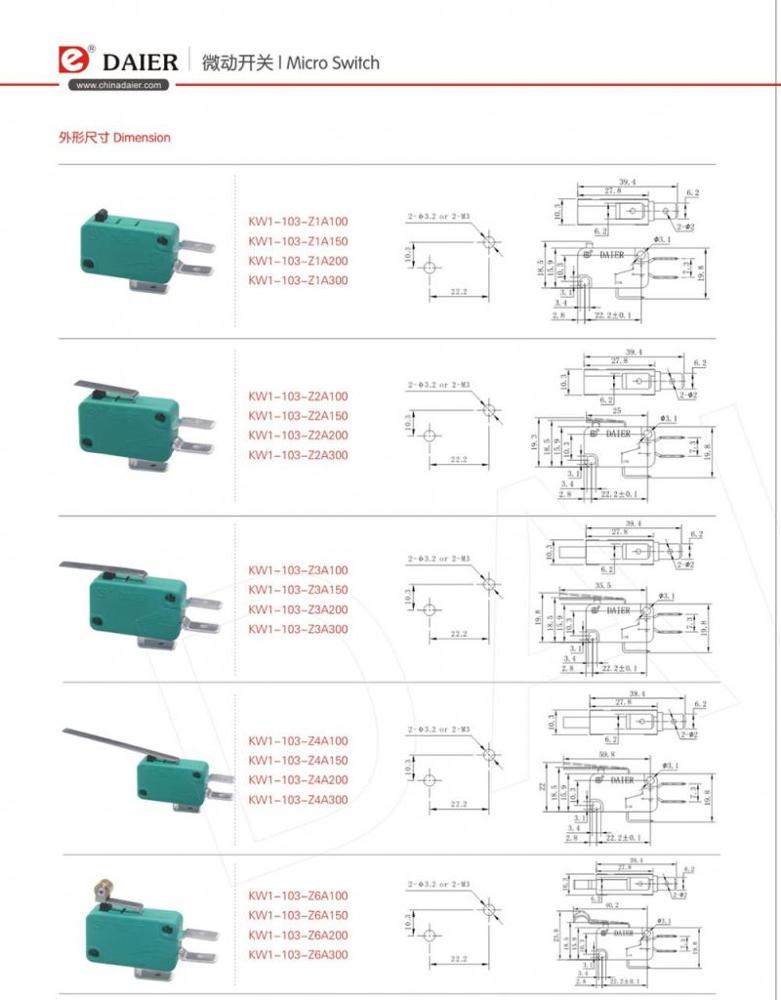

- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated
