Home > Products > 12.5MM 10A 5x20 Solder Panel Mount Fuse Holder Types With Plastic Nut

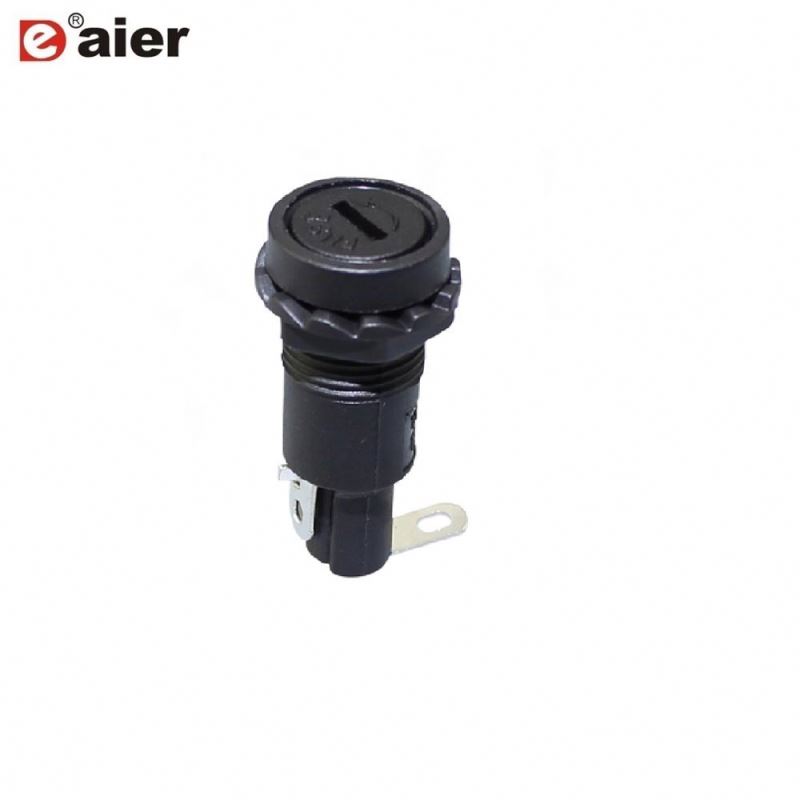

12.5MM 10A 5x20 Solder Panel Mount Fuse Holder Types With Plastic Nut
Click on the image to view the original image
Product： views：212.5MM 10A 5x20 Solder Panel Mount Fuse Holder Types With Plastic Nut
Branch： Daier
Type： Fuse Holder
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:11
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
R3-11
Type:
Fuse Holder
Item:
12.5MM 10A 5x20 Solder Panel Mount Fuse Holder Types With Plastic Nut
Rating:
10A 250VAC
Material:
Plastic and Metal
Housing Color:
Black
Mounting Hole Size:
12.5 MM
Fuse Size:
5x20 MM
Terminal:
Solder Terminal
OEM&ODM:
Available
Free Sample:
Available
Electrical Life:
≥ 200 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
28X28X15 cm
Gross weight per batch:
1.2 kg
Package Type:
200Pcs A Box Of 12.5MM 10A 5x20 Solder Panel Mount Fuse Holder Types With Plastic Nut
Lead Time:
Quantity(Piece)1 - 200000>200000
Est. Time(days)7To be negotiated
Product Description
Item
12.5MM 10A 5x20 Solder Panel Mount Fuse Holder Types With Plastic Nut
Rating
10A 250VAC
Contact Resistance
35mΩ max
Electrical Life
≥ 200 Cycles
Mechanical Life
≥ 5,000 Cycles
Dielectric strength
1500VAC 50Hz 1 minute
Operating Temperature
-55℃~+85℃  panel mount fuse holder types
Product Show

Fuse holders can be used in any applications where you need to ensure electrical protection, isolation and switching under load of inductive or resistive loads. The technology solutions applied to reduce power dissipation help to minimize module heating.

Fuse holders are suitable for protection against overloads and short circuits.


Daier offer fuse-holder and fuse part for 15 years.Now Daier have glass fuse holder and inline fuse holder.


Good glass fuse-holder fits 5x20mm, 6x30mm and 10x38mm grass fuse.


Quality rubber fuse-holder fits ATC/ATO size fuses. Holds and encloses fuse securely. Hinged cover protects fuse from impact, water and dust. 12-inch wire loop is made of 18 gauge flexible stranded red wire.
