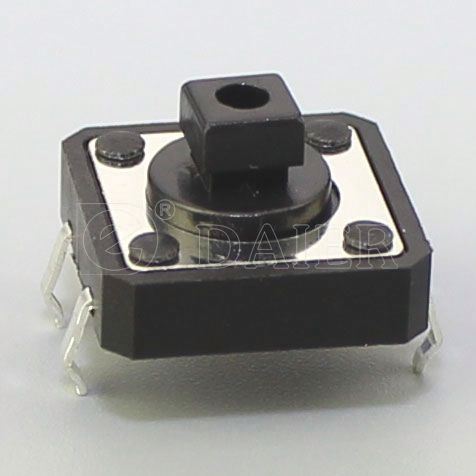

Tactile Switch 12x12MM 4 Pin Push Button Tact Switch With Square Button
Click on the image to view the original image
Product： views：2Tactile Switch 12x12MM 4 Pin Push Button Tact Switch With Square Button
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:11
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
KFC-012-7.3F
Protection Level:
IP40
Max. Current:
50mA
Max. Voltage:
12VDC
Item:
12x12MM 4 Pin Push Button Tact Switch With Square Button
Rating:
50mA 12VDC
Material:
Metal
Function:
OFF-(ON)
Size:
12X12 MM
Height:
7.3 MM
Terminal:
PCB Terminal
Button Color:
Black / Yellow
Free Sample:
Available
Electrical Life:
≥ 10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
26X18X5 cm
Gross weight per batch:
0.5 kg
Package Type:
500Pcs A Box Of Tactile Switch 12x12MM 4 Pin Push Button Tact Switch With Square Button
Lead Time:
Quantity(Piece)1 - 500000>500000
Est. Time(days)7To be negotiated
Product Description
Item
Tactile Switch 12x12MM 4 Pin Push Button Tact Switch With Square Button
Rating
50mA 12VDC
Housing Color
Black
Operating Direction
Top Push
Operating Life
Over 100,000 cycles
Travel
0.25mm
Operating Temperature
-25℃~+70℃    12x12mm 4 pin push button tact switch
Product Show

KFC-012-7.3F is an on/off tack switch that is only on when the button is pressed or if there is a definitive change in pressure.

It was used for circuit board, the height for the switch is 7.3mm.

The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.

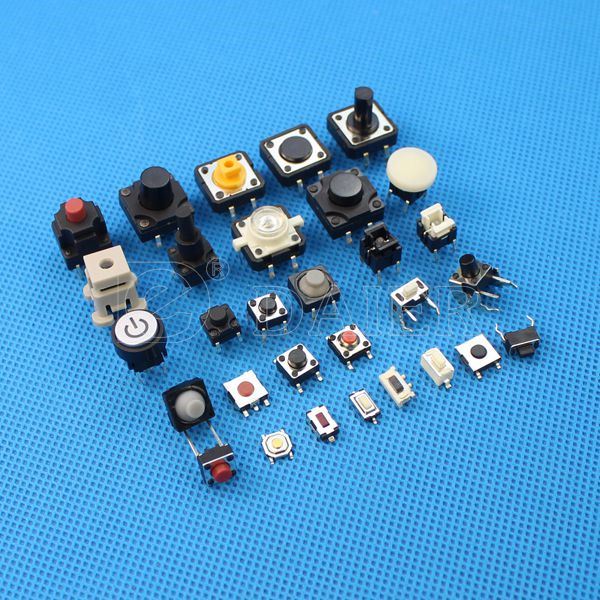

Related Roducts

               KM12X12-3


                   KM12X12-2



                   KM12X12-1
