Momentary 2 Pin Tactile Switch 6X6 Tact Switch With Round Long Terminal
Click on the image to view the original image
Product： views：2Momentary 2 Pin Tactile Switch 6X6 Tact Switch With Round Long Terminal
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:11
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
KFC-A06Y-H
Protection Level:
IP40
Max. Current:
50mA
Max. Voltage:
12VDC
Item:
2 Pin Tactile Switch 6X6 Tact Switch With Round Long Terminal
Rating:
50mA 12VDC
Material:
Plastic
Function:
OFF-(ON)
Size:
6X6 MM
Height:
4.3 / 5 MM
Terminal:
PCB Terminal
Packing:
Braid Packing
Free Sample:
Available
Electrical Life:
≥ 10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
26X18X5 cm
Gross weight per batch:
1.0 kg
Package Type:
1000Pcs A Box Of Momentary 2 Pin Tactile Switch 6X6 Tact Switch With Round Long Terminal
Lead Time:
Quantity(Piece)1 - 10000>10000
Est. Time(days)7To be negotiated
Product Description
Item
Momentary 2 Pin Tactile Switch 6X6 Tact Switch With Round Long Terminal
Rating
50mA 12VDC
Pin
2 Pin
Operating Direction
Top Push
Operating force
0.98N
Operating Life
Over 100,000 cycles
Travel
0.25mm
Operating Temperature
-40~+90   2 pin tactile switch 6x6
Product Show

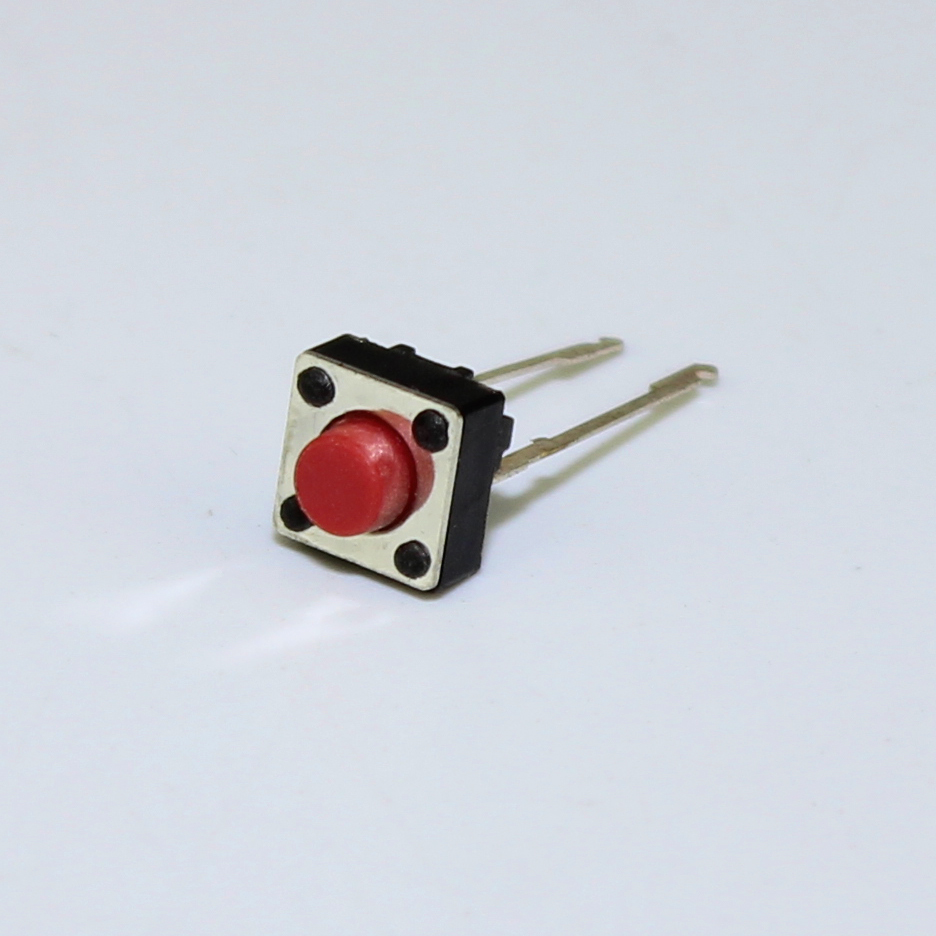

KFC-A06Y-H is an on/off pcb tactile switch that is only on when the button is pressed or if there is a definitive change in pressure.

It was used for circuit board, there are many different kinds of height for the switch knob, the standard height range is 4.3mm and 5mm.

The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.
