Home > Products > 50mA SMD Terminal 10X10 Tactile Switch 6 Pin 5 Direction Tact Switch
50mA SMD Terminal 10X10 Tactile Switch 6 Pin 5 Direction Tact Switch
Click on the image to view the original image
Product： views：250mA SMD Terminal 10X10 Tactile Switch 6 Pin 5 Direction Tact Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:11
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
KFC5-010-10
Protection Level:
IP40
Max. Current:
50mA
Max. Voltage:
12VDC
Item:
50mA SMD Terminal 10X10 Tactile Switch 6 Pin 5 Direction Tact Switch
Rating:
50mA 12VDC
Material:
Plastic
Function:
OFF-(ON)
Size:
10X10MM
Height:
10 MM
Terminal:
SMD Terminal
Packing:
Carton Packing
Free Sample:
Available
Electrical Life:
≥ 10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
26X18X5 cm
Gross weight per batch:
1.0 kg
Package Type:
1000Pcs A Box Of 50mA SMD Terminal 10X10 Tactile Switch 6 Pin 5 Direction Tact Switch
Lead Time:
Quantity(Piece)1 - 1000000>1000000
Est. Time(days)7To be negotiated
Product Description
Item
50mA SMD Terminal 10X10 Tactile Switch 6 Pin 5 Direction Tact Switch
Rating
50mA 12VDC
Pin
6 Pin
Operating Direction
Top Push
Operating force
0.98N
Operating Life
Over 100,000 cycles
Travel
0.25mm
Operating Temperature
-25℃~+105℃  6 pin 5 direction tact switch
Product Show

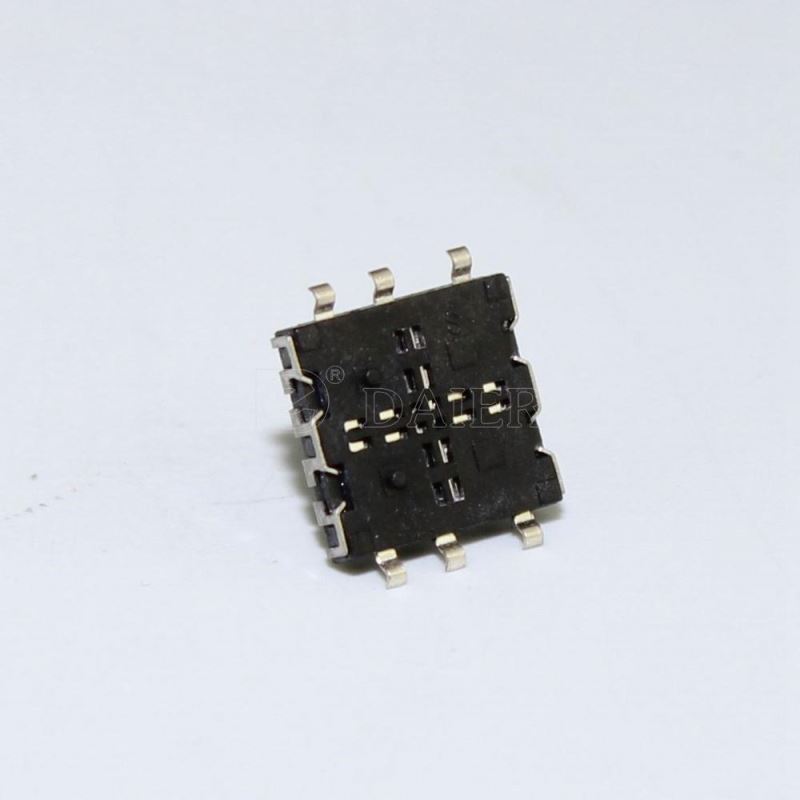

KFC5-010-10 is a 5 Way  electronic 6 pin tact switch.

It was used for circuit board, there are many different kinds of height for the switch knob, the standard height range is 10MM

The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.
