Home > Products > Small Circuit Breaker Manual Reset Bakelite Overload Switch

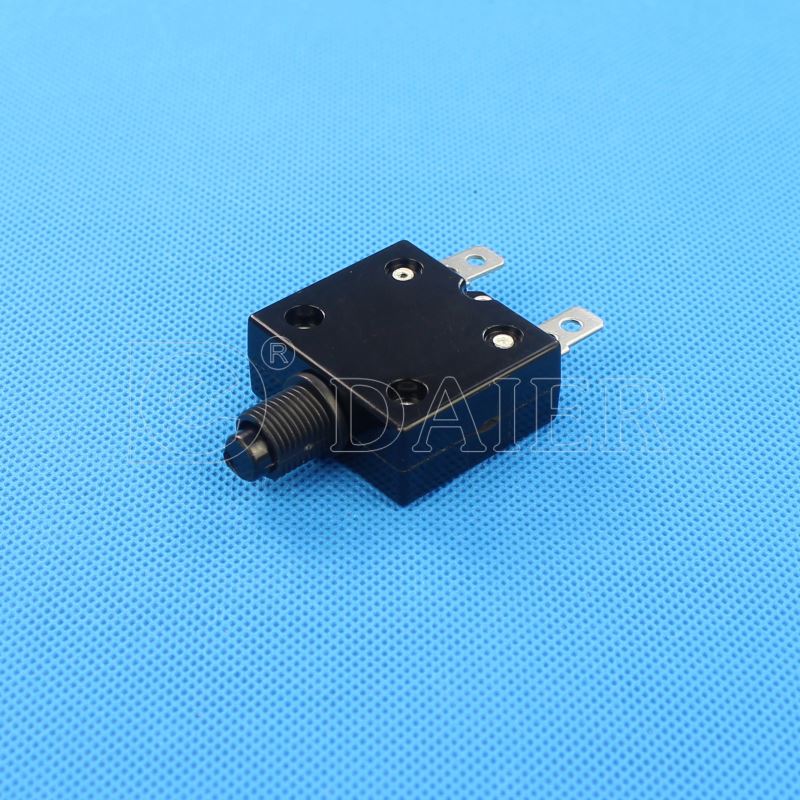

Small Circuit Breaker Manual Reset Bakelite Overload Switch
Click on the image to view the original image
Product： views：4Small Circuit Breaker Manual Reset Bakelite Overload Switch
Branch： Daier
Type： Conventional
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:12
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
ST-2P
Type:
Conventional
Poles Number:
1
Item:
Small Circuit Breaker Manual Reset Bakelite Overload Switch
Housing Material:
Bakelite
Threaded Sleeve Material:
Plastic
Rated current:
15~50A
Rated voltage:
125 / 250VAC / 32VDC
Function:
Manual Reset
Housing Color:
Black
Button Color:
Black
Terminal Type:
Straight Pin
Free Sample:
Available

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
28X16X16 cm
Gross weight per batch:
1.4 kg
Package Type:
50Pcs A Box Of Small Circuit Breaker Manual Reset Bakelite Overload Switch
Lead Time:
Quantity(Piece)1 - 50000>50000
Est. Time(days)7To be negotiated
Product Description
Item
Small Circuit Breaker Manual Reset Bakelite Overload Switch
Material
Bakelite
Function
Manual Reset
Working Voltage
min. 12V, max. 250V (Double usage of DC and AC)
Insulated Resistance
≥100MΩ
Dielectric Strength
≥1500VAC (1min)
Electrical Life
≥10,000 times
OEM or ODM
Available overload switch

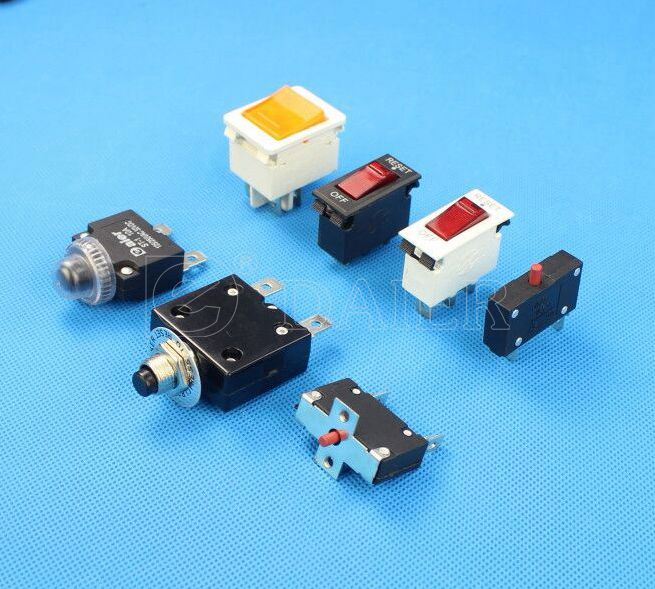

Product Show

Thermal push button circuit breakers are single-pole, push-to-reset breakers with a compact design that protects your equipment and applications. The push button breakers utilize a simple and precise design that features few moving parts.


The design allows the thermal circuit breaker to be extremely cost-effective while remaining durable and reliable. A push button breaker is a great choice for reliable circuit protection that also needs resistance against shock and vibration. Each push button breaker provides a consistent trip point over temperatures ranging from -10°C to +60°C.


Select a low amp or high amp thermal circuit breaker for your household and commercial applications, transportation equipment, marine, audio-visual, medical, and other power supplies.


The quick connect design of the push button breaker makes installation simple and provides an easy to use thermal circuit breaker for your application. Get the perfect combination of easy to use, highly protective, and cost-effective protection with 40 amp circuit breaker.


Related Roducts

                  WPC-21


                      ST-2A



                    ST-001L
