Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- K19-04-103
- Protection Level:
- IP65
- Max. Current:
- 4A
- Max. Voltage:
- 250VAC
- Item:
- 19MM 2A 250VAC 4 Pin ON-ON-ON Silver 3 Position Electrical Key Switch
- Rating:
- 2A 250VAC / 4A 28VDC
- Material:
- Zinc
- Key Material:
- Metal
- Function:
- ON-ON-ON
- Housing Color:
- Silver
- Mounting hole size:
- 19MM
- Total Length:
- 34MM
- Free Sample:
- Available
- Electrical Life:
- 5,000 times
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 21X13X7 cm
- Gross weight per batch:
- 2.2 kg
- Package Type:
- 50Pcs A Box Of 19MM 2A 250VAC 4 Pin ON-ON-ON Silver 3 Position Electrical Key Switch
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 15000 >15000 Est. Time(days) 7 To be negotiated
Product Description
Product Show

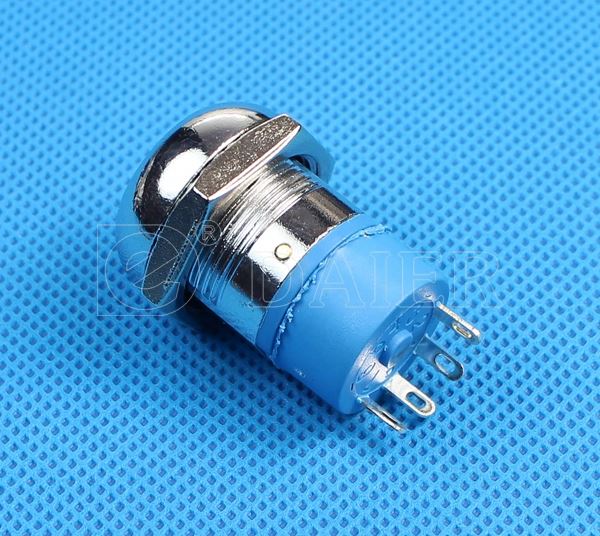

A quality product containing parts manufactured from brass, steel and alloy materials.
The barrel is finished in chrome with a polished bezel.
The lock is a separate item with a chrome finished body that fits into the barrel, after mounting, in any one of four positions. The tumblers of the lock are made from brass, steel and bronze.
The barrel is 19mm diameter across the threads.
Overall length of lock when assembled is 34mm.
