50mA 12VDC 3Pin Single Pole 2 Way Toy Slide Switch
Click on the image to view the original image
Product： views：450mA 12VDC 3Pin Single Pole 2 Way Toy Slide Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:12
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
SS-12D07
Max. Current:
50mA
Max. Voltage:
12VDC
Mechanical Life:
10000 Cycles
Item:
50mA 12VDC 3Pin Single Pole 2 Way Toy Slide Switch
Rating:
50mA 12VDC
Material:
Iron
Handle Height:
3/5 MM
Function:
1P2T
Terminal:
PCB Terminal
Pin:
3 Pin
Packing:
Bulk Packing
Free Sample:
Available
Electrical Life:
≥ 10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
26X18X5 cm
Gross weight per batch:
0.5 kg
Package Type:
1000Pcs A Box Of 50mA 12VDC 3Pin Single Pole 2 Way Toy Slide Switch
Lead Time:
Quantity(Piece)1 - 1000000>1000000
Est. Time(days)7To be negotiated
Product Description
Item
50mA 12VDC 3Pin Single Pole 2 Way Toy Slide Switch
Rating
50mA 12VDC
Pin
3 Pin
Contact Resistance
10mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance
1000mΩ min
Dielectric strength
1500VAC 1 minute
Operating Temperature
-25℃~+85℃   toy slide switch
Product Show

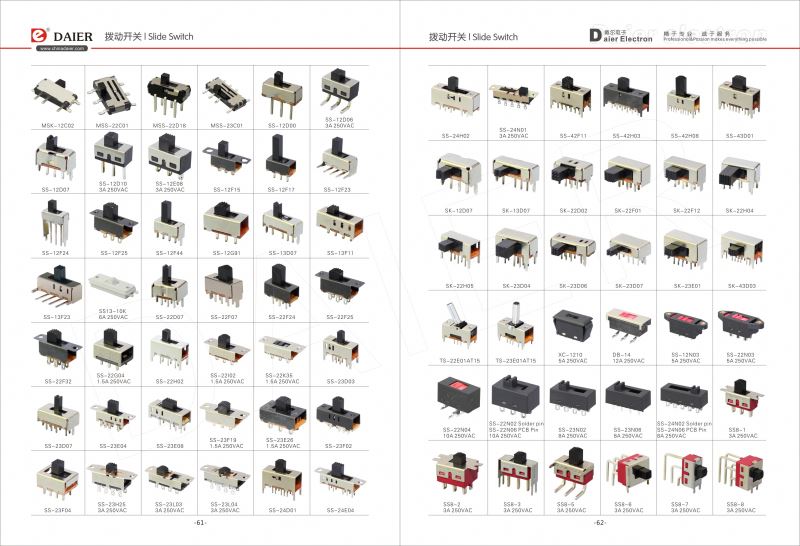

Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, Daier has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.


Daier"s many series of slide switches give engineers more design flexibility and options when it comes to size, mounting, actuation types, ratings and packages. Whether you develop controllers or consumer goods; headphones or HVAC controls; portable speakers or laptops; audio equipment or alarms, Daier slide switches quickly integrate into your next design.
