10A 250VAC DPDT 3Pin Black Power Right Angle Voltage Slide Switch
Click on the image to view the original image
Product： views：310A 250VAC DPDT 3Pin Black Power Right Angle Voltage Slide Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:12
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
SS-22N04
Max. Current:
10A
Max. Voltage:
250VAC
Mechanical Life:
10000 Cycles
Item:
10A 250VAC DPDT 3Pin Black Power Right Angle Voltage Slide Switch
Rating:
10A 250VAC
Material:
Iron
Button Type:
Flat Button
Function:
2P2T
Terminal:
PCB Terminal
Pin:
3 Pin
Packing:
Bulk Packing
Free Sample:
Available
Electrical Life:
≥ 10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
26X18X5 cm
Gross weight per batch:
1.0 kg
Package Type:
500Pcs A Box Of 10A 250VAC DPDT 3Pin Black Power Right Angle Voltage Slide Switch
Lead Time:
Quantity(Piece)1 - 500000>500000
Est. Time(days)7To be negotiated
Product Description
Item
10A 250VAC DPDT 3Pin Black Power Right Angle Voltage Slide Switch
Rating
10A 250VAC
Pin
3 Pin
Contact Resistance
10mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance
1000mΩ min
Dielectric strength
1500VAC 1 minute
Operating Temperature
-25℃~+85℃  right angle voltage slide switch

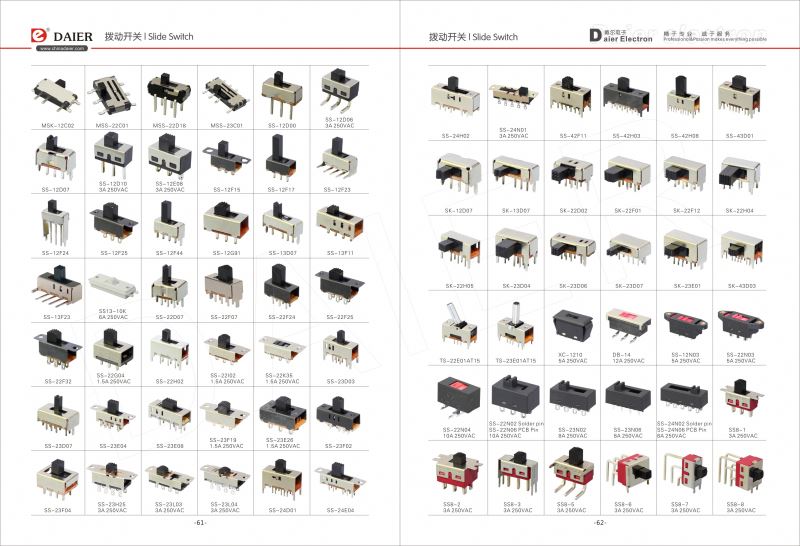

Product Show

Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, Daier has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.


Daier"s many series of slide switches give engineers more design flexibility and options when it comes to size, mounting, actuation types, ratings and packages. Whether you develop controllers or consumer goods; headphones or HVAC controls; portable speakers or laptops; audio equipment or alarms, Daier slide switches quickly integrate into your next design.
