Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KW4-Z2F
- Max. Current:
- 10A
- Max. Voltage:
- 250VAC
- Operating Temperature:
- -25℃~+85℃
- Protection Level:
- IP40
- Current:
- 5A~10A
- Voltage:
- 125/250VAC
- Contact Resistance:
- ≤50m Ω
- Insulation Resistance:
- ≥100M Ω (500VDC)
- Dielectric Strength:
- 1000VAC 1Minute
- Ambient Humidity Used:
- <85% RH
- Electrical Life:
- 100,000 Cycles
- Mechanical Life:
- ≥100,000 Cycles
- Color:
- Green/Black
- Certificate:
- CE,TUV,CQC
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 26X15X8 cm
- Gross weight per batch:
- 0.5 kg

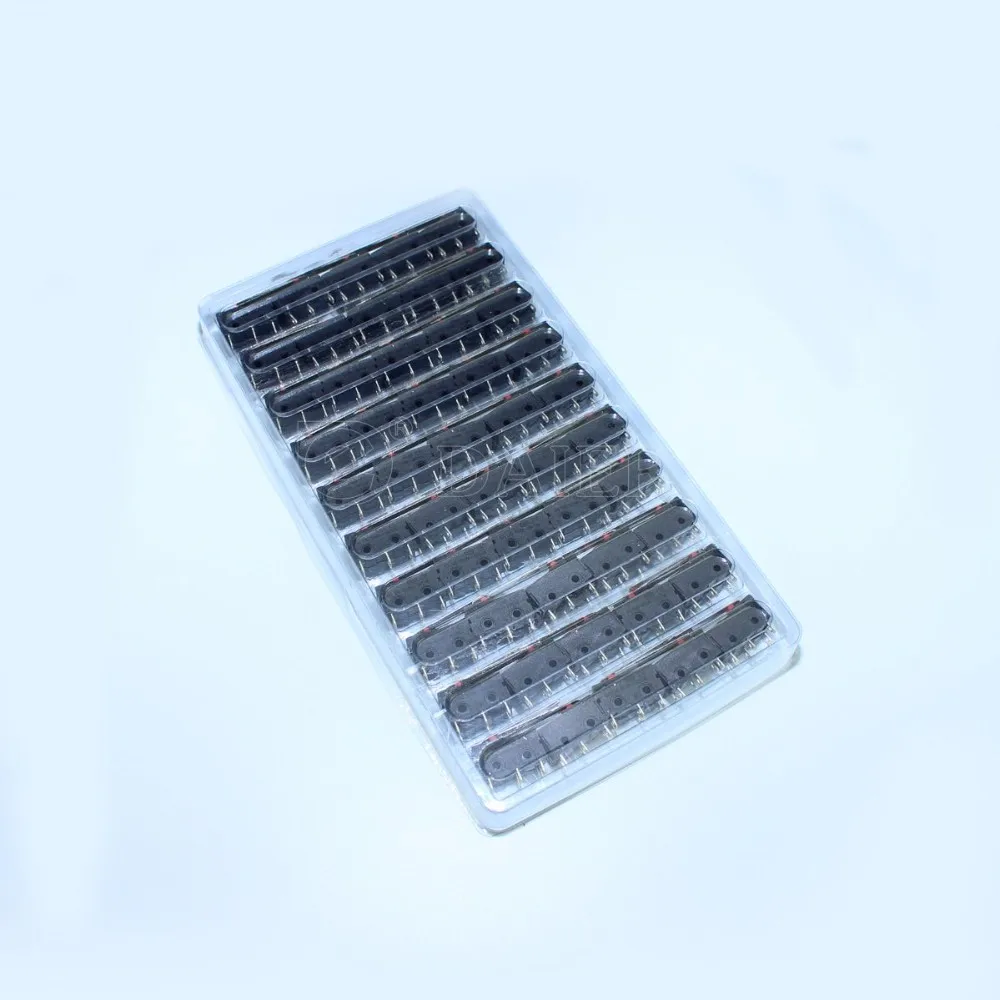

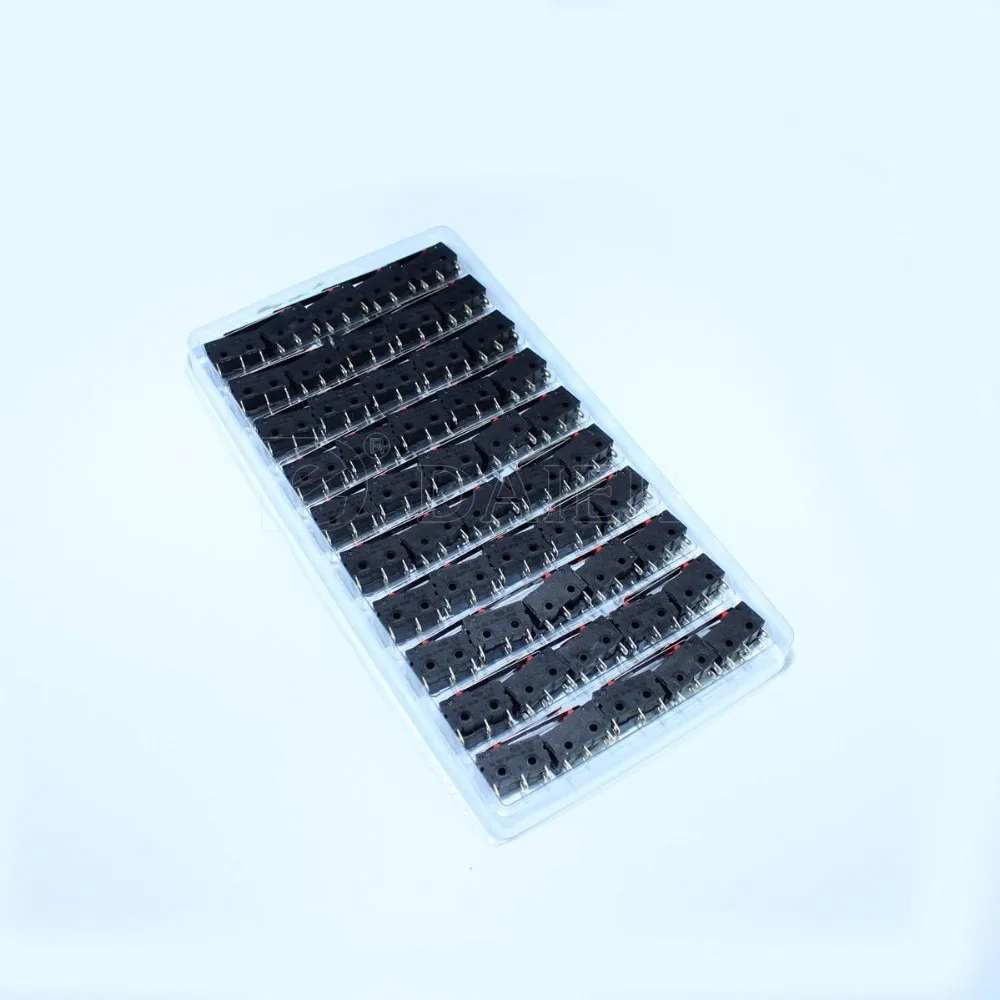

- Package Type:
- 100pcs of KW4-Z2F 5A 250V Miniature T85 SPDT Short Lever 3 Position Micro Switch
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated
Product Description
Products Show
KW4-Z2F
Although small in size, KW4-Z2F small micro switch are rated for controlling electrical loads ranging from logic level (computer based circuits) to power duty switching (up to 16.1 A and 250 Vac).
KW4-Z2F
The package size of the subminiature switch is ideal for applications where space on the equipment is at a premium. The overall length of KW4-Z2F small micro switch are less than 20 mm [0.78 in].
Related Roducts
KW4-Z1F
KW4-Z2F
KW4-Z3F
KW4-ZDF
KW4-Z4F
KW4-Z5F
