Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KCD2-2-201 t120 switch
- Max. Current:
- 20A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Item:
- KCD2 Rocker Switch T120 55 With Solder Terminal T120 Switch
- Model:
- KCD2-2-201
- Fuction:
- ON-OFF
- Rating:
- 16A 250VAC; 20A 125VAC
- Housing Color:
- Black, White, Grey
- Button Color:
- Red, Green, Yellow, Black, Blue
- Terminal type:
- Solder Terminals
- Operating Temperature:
- -25℃~+85℃
- Certificate:
- CE,CQC,TUV
- Standard:
- IEC Standard
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X15X7 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- 100pcs/box,1000pcs/carton of 16A 250VAC ON OFF KCD2 Rocker Switch T120 55 With Solder Terminal T120 Switch

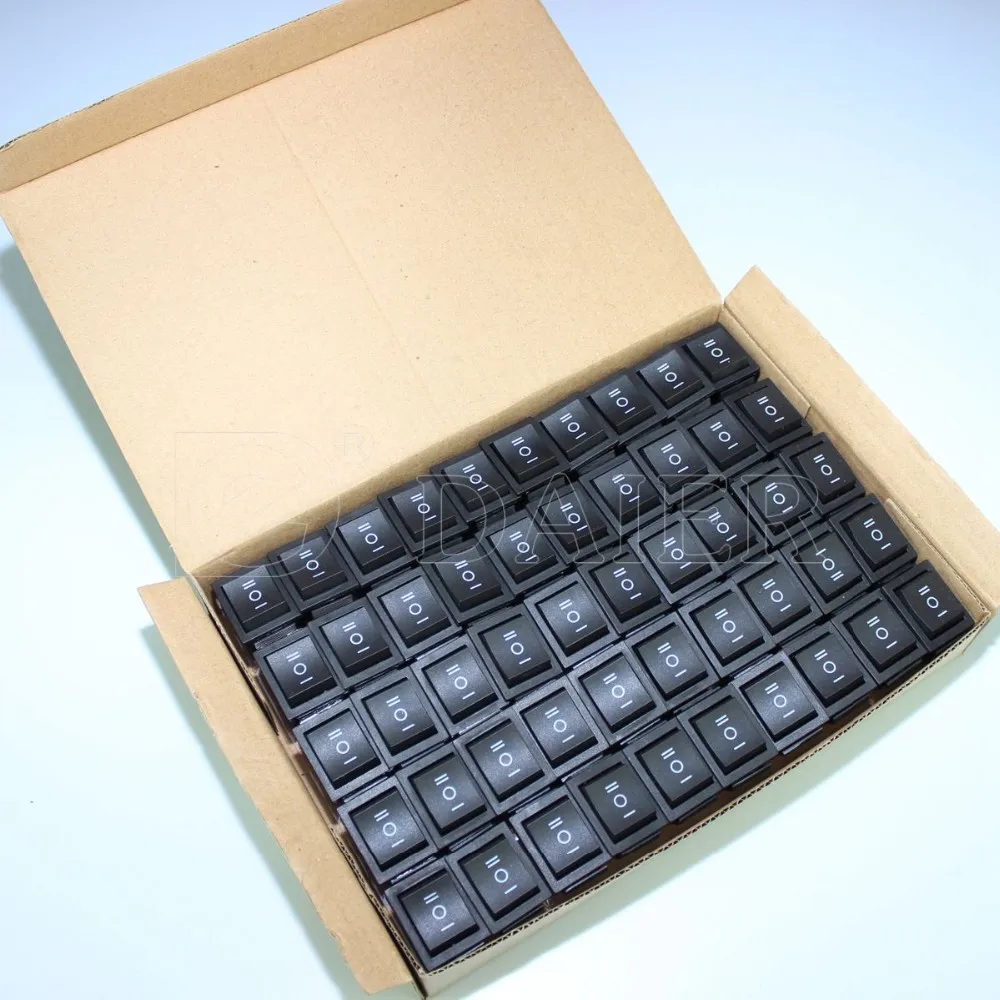

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated
Product Description
lItem | 16A 250VAC ON OFF KCD2 Rocker Switch T120 55 With Solder Terminal T120 Switch |
Function | ON OFF kcd2 rocker switch t120 55 |
Rating | 16A 250VAC; 20A 125VAC |
Contact Resistance | < 35MΩ |
Insulation Resistance | 500VDC 1000MΩMinute |
Dielectric Strength | 1500VAC, 1 Minute |
Operating Temperature | -25°C~+85°C |
Electrical life | 10000 CYCLES |
KCD2-2-201 Carling Rocker Switch:
Daier KCD2-2-201 on off rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
