125mm traffic LED red yellow green flashing light/LED traffic signal
| Product Overview: | ||||||||||
| 125 double-sided red yellow and green plateful traffic lights are very versatile,which can be used in schools" teaching ,teachers use the product to demo simulation of road traffic lights working conditions to educate students how to properly cross the road. It can also be used for traffic, and used to maintain traffic order, to guide the vehicle to pass the road safely and correctly, it can also be used for parking, plant and other areas, when used in the parking lot,it can be connected to the controller and Parking Barrier Systems match, which can guide vehicle to access parking lot correctly; when used in the plant, it can instruct the operation of the plant. | ||||||||||
| Product performance and characteristics: | ||||||||||
| 1.Low power consumption, viewing angle, long life | ||||||||||
| 2.Novel structure, beautiful appearance | 3. Multi-sealed, waterproof 3. Multi-sealed, waterproof | |||||||||
| 4.Unique optical system, color uniformity | ||||||||||
| 5.In line with GB / 14887-2003 and international standards | ||||||||||
| 6.Visual distance N17 6.Multi-sealed, waterproof | ||||||||||
| Other technical parameters are as follows: | ||||||||||

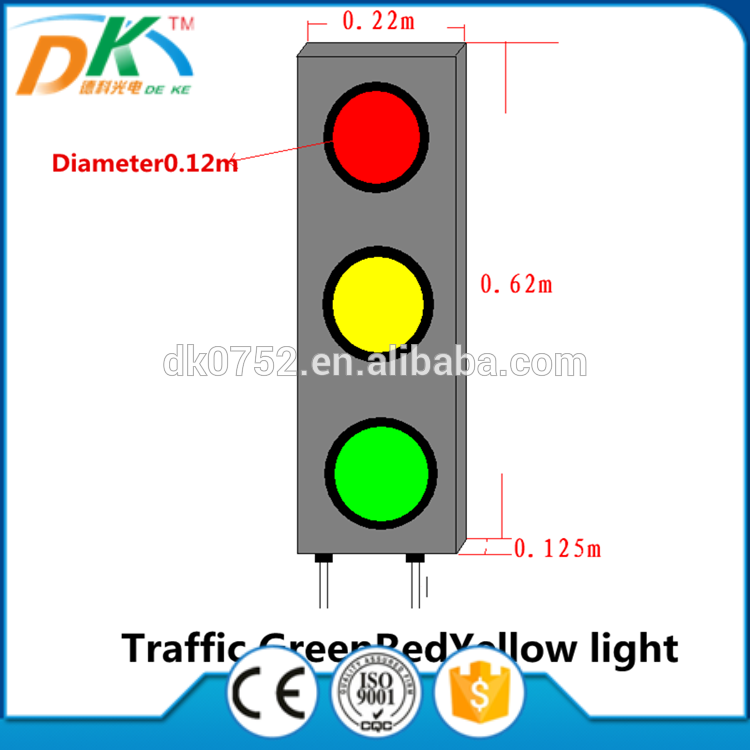

| Medallions Size | Φ125mm | LED Brightness | R/Y:4000-6000MCD | |||||||
| Dimensions | 620*200*220mm | G:10000-15000MCD | ||||||||
| Lamp beads | Red: 60 | Ambient temperature, humidity | -40°+50°,90% | |||||||
| Yellow: 60 | Viewing distance | ≥300m | ||||||||
| Green: 60 | Perspective | 30° | ||||||||
| Voltage | AC220V | IP Grade | IP53 | |||||||
| Electric current | 0.9A | Light source life | 100000h | |||||||
| Power | ≤11W | Lightbox housing material | Cold-rolled plate | |||||||
| Power supply | Year of Power | control method | A variety of control | |||||||
