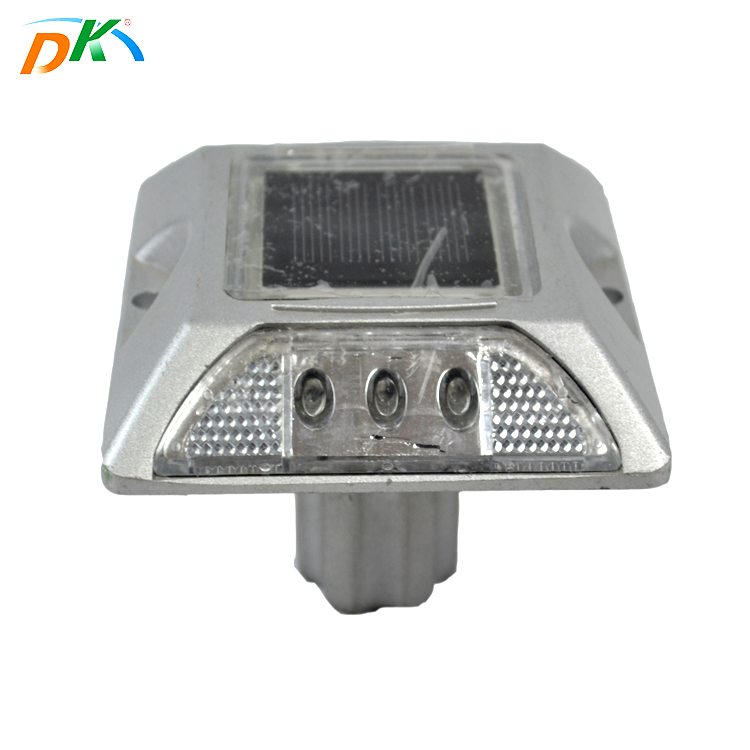

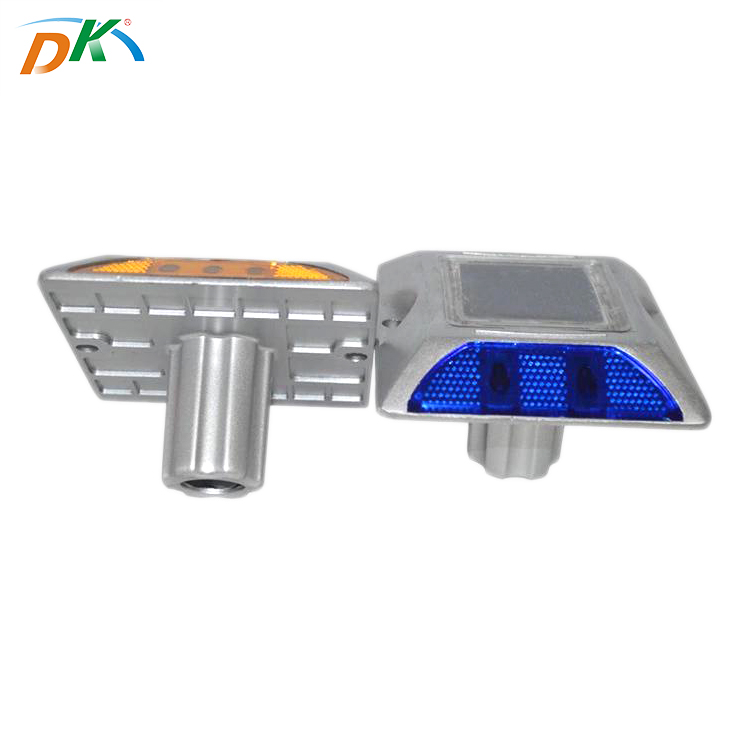

Solar Powered aluminum embedded 3m cat eye reflector road stud
| Power supply | solar cells (monocrystalline silicon) 2.5V / 120MA |
| Storage device | Rechargeable battery 1.2V/800MAH NI-MH high temperature battery |
| Working time | 800mAh battery under saturation can work for more than 10 days/12 hours a night (through measurement) |
| The display device | φ5 ultra bright fogging LED, LED lamp bead colors can be customized, Taiwan wafer chip, 15 °angle is generally used in direct light and strong; |
| Work | Flashing (2Hz ± 20%) and steady |
| Light intensity | less than positive light 500Lux (light control principle) |
| Visible distance | > 500 m |
| Life | more than 3 years |
| Working environment | -20 ℃ ~ + 70 ℃ |
| Size | 107 * 95 * 24mm |
| The aluminum shell compression capability, static under pressure> 10 tons | |
