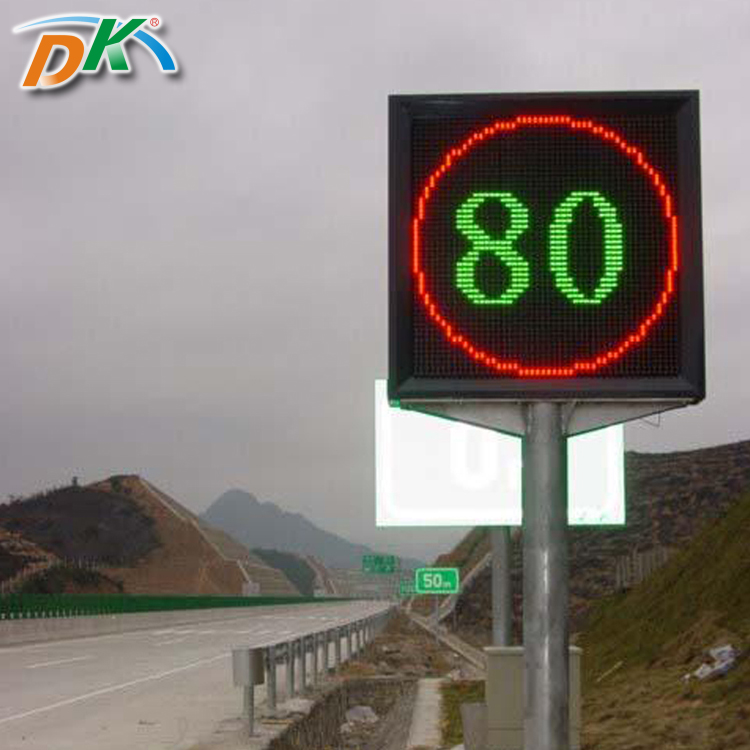

Road traffic led display sign board,highway/tunnel sign,VMS screen
Item | Technical Parameters | |||||||||
| Pixel Pitch | 10mm | |||||||||
| Module Size | 320mm×160mm | |||||||||
| Module Pixel | 32×16 | |||||||||
| Pixels density | Real :2500 dots/sqm | |||||||||
| Pixel form( Optional) | 1R1G1B | |||||||||
| The optimum viewing distance | 10m-500m | |||||||||
| Wavelength Amber | F625+/-5nm | |||||||||
| Cabinet dimension | 960mm×960mm or Customized | |||||||||
| Drive mode | Static constant current | |||||||||
| Max power consumption | 600W/sqm | |||||||||
| Pixel type (Optional) | Real pixel | |||||||||
| refresh frequency | 480HZ | |||||||||
| Horizontal View Angel | >110 degree | |||||||||
| Working Environment | Temp:-20°c~+60°c Humidity: 10%-90% | |||||||||
| Working voltage | AC100~120V/AC 220~240V | |||||||||
| Life time | 100000 hours Mini | |||||||||
| Gray scale | 8 bit amber | |||||||||
| Brightness | 5500-6000 cd/sqm | |||||||||
| Blind LED lamp rate | <0.00001 | |||||||||
| Waterproof level | IP65 | |||||||||
