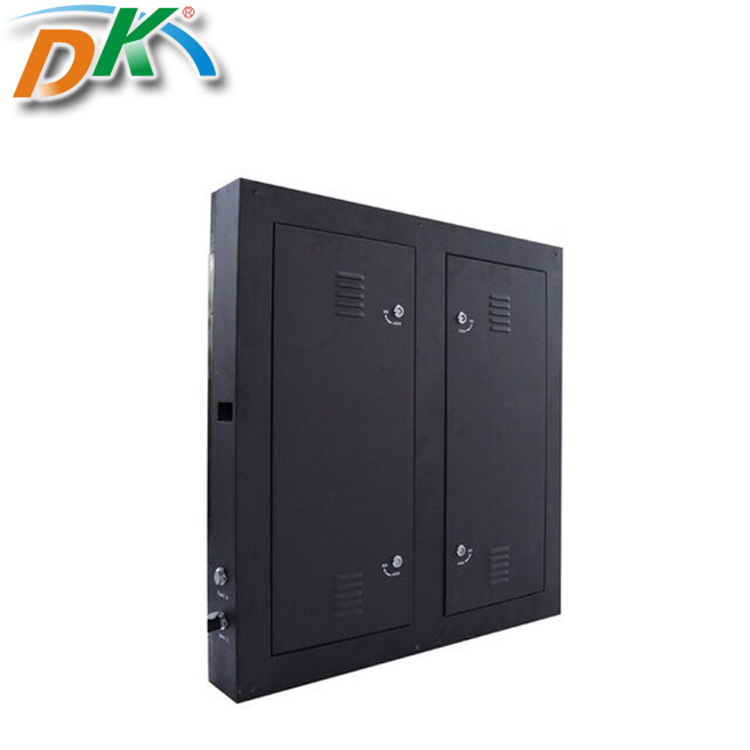

DK LED Waterproof Alloy Die-Cast Cabinet P4 P5 P6 Full Color SMD Led Display
(2)Pixel parameter | ||
LED standard | (RGB) SMD2121 | |
Pixel | PH=4mm | |
(3) Module specification | ||
PCB | Double-deck Separate Design | |
Module size(W*H*T) | 256×128mm | |
Module resolution | 64*32 dot | |
Pixel density(Dot/ M2 ) | 62500dot | |
Module Weight(Kg) | 0.32kg | |
Brightness | ≥1500cd | |
HUB Port | HUB75 | |
Driving Mode | 1/16 Scan | |
Viewing Angle | Horizontal: 120°, Vertical: 120° | |
Best Viewing Distance | 4-100M | |
Gray Scale | Red,Green,Blue 256Grade | |
Refresh Frequency | ≥200HZ | |
Color display | Display 16.7M color | |
Life Span | ≥100000 Hrs | |
Blind Dot Rate | ≤3PPM | |
Working Voltage | DC5V | |
Max Power Consumption | ≤20W/piece | |
Power Consumption | ≤10W/piece | |
1m²Max Power Consumption | ≤610w | |
1m²Average Power | ≤300w | |
Operating Temperature | -20℃ ~ +60℃ | |
Operating Humidity | 10%~90%RH | |
(3) Package | ||
Packing Size(mm) | 450mm*420mm*260mm | |
Packing Number(piece) | 90PCS | |
Weight (kg) | 30kg | |
