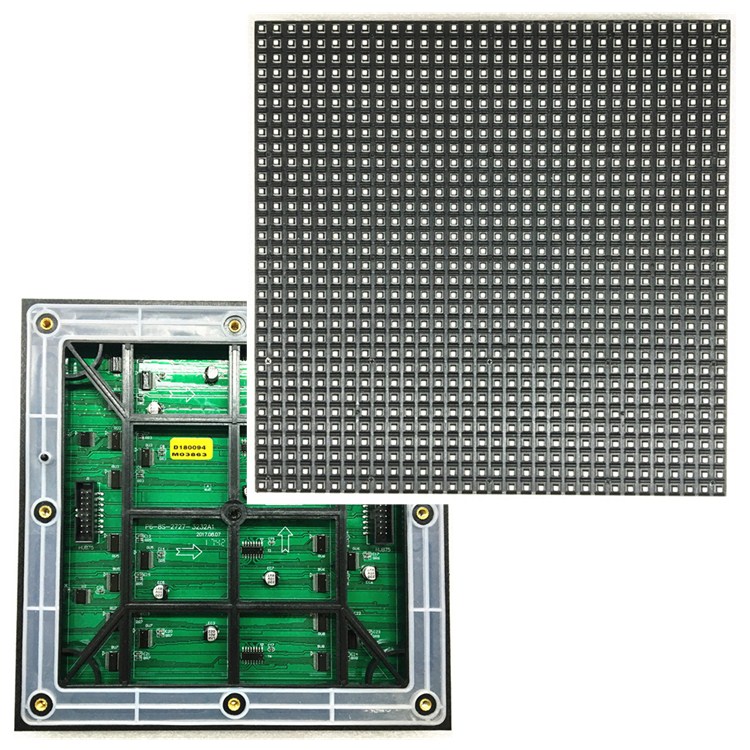

Click on the image to view the original image
- Model Number:
- P6-32x32RGB(Outdoor 8S)
- Brand Name:
- Duo-Lai Mi
- Product name:
- P6-32x32 outdoor LED display technical parameters
- Application:
- Outdoor
- Color:
- 1R1G1B
- LED chip:
- 2727SMD
- Pixel density:
- 27777 points / m2
- Scanning:
- 1/8 scanning
- Average power consumption:
- <600W/m2
- Unit board weight:
- 0.4KG
- Warranty:
- 1-2 Years
- Life span:
- 100000 hours
- Usage:
- OUTDOOR
- Tube Chip Color:
- FULL COLOR
- Display Function:
- Video
- Pixels:
- 6MM
- Screen Dimension:
- 192x192mm
- Supply Ability:
- 100000000000000 Piece/Pieces per Month
- Packaging Details
- Carton
48X44X43cm-60ps-21.6KG
- Port
- shenzhen
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 5 To be negotiated
| P6-1/8S outdoor LED display main technical parameters | ||||||||
| Physical point spacing 6MM | Unit board size192x192mm | Unit box size 576×576MM | ||||||
| hysical density 27777 points / m2 | luminous point color 1R1G1B | unit board resolution 32*32=1024 DOTS | ||||||
| Unit board weight 0.4kg | ||||||||
| Cabinet resolution 96*96 | Cabinet area 0.589824m2 | Standard iron box weight 10.37KG+-0.05KG | ||||||
| The main technical parameters | ||||||||
| Optimum line of sight 6m~80m | Visual angle level >= 160 ° optional | Vertical >= 160 ° optional | ||||||
| Average power consumption <600W/m2 | Maximum power consumption <1200w/m2 | Control mode: synchronous control | ||||||
| Display card DVI graphics card | Drive mode 1/8 scan | Change frequency >=60Hz | ||||||
| Refresh rate >=360Hz | White balance brightness >=6300cd/m2 | Operating voltage (AC) | ||||||
| Brightness adjustment method | Brightness sensing automatic adjustment | 16-level adjustable | ||||||
| Software manual adjustment: 100 levels adjustable 100 | ||||||||
| Computer operating system | ||||||||
| WIN98,WINXP,WIN2000,etc | ||||||||
| Video signal | ||||||||
| RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc | ||||||||
| Control System | ||||||||
| PCTV card (optional optional) + DVI graphics card + main control card + fiber transmission (optional optional) | ||||||||
| Mean time between failures >=5000 hours | Lifetime 75000~100000 hours | Pixel loss control rate <0.0002 pieces | ||||||
| Project Classification PH6-8S | Package Style Three-in-One | LED Package 2727 &3535 | ||||||
| FAQ |
| Q1. Can I have a sample order for led light? |
| A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. |
| Q2. What about the lead time? |
| A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than |
| Q3. Do you have any MOQ limit for led light order? |
| A: Low MOQ, 1pc for sample checking is available |
| Q4. How do you ship the goods and how long does it take to arrive? |
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. |
| Q5. How to proceed an order for led Module light? |
| A: Firstly let us know your requirements or application. |
| Secondly We quote according to your requirements or our suggestions. |
| Thirdly customer confirms the samples and places deposit for formal order. |
| Fourthly We arrange the production. |
| Q6. Is it OK to print my logo on led light product? |
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. |
| Q7: Do you offer guarantee for the products? |
| A: Yes, we offer 1-2 years warranty to our products. |
| Q8: How to deal with the faulty? |
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. |
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including recall according to real situation during specified inspection time. |
