Medium Intensity Tower Solar Powered LED Aviation Aicraft Building Obstruction Light
Medium Intensity Aviation Obstruction Solar Power LED Aircraft Warning Lights
Medium Intensity Aviation Obstruction Solar Power LED Aircraft Warning Lights
The DWS702 is a Medium Intensity Tower Solar Powered LED Aviation Aicraft Building Obstruction Light which meets FAA/ICAO standards. The self-contained design makes it concision, reliability, durability and easy-operation. Because its shape looks like a mushroom, it also is called as “Solar Mushroom Light”. It can complete the synchronization of many lamps by GPS and is widely used in Aviation Warning of Iron Towers,Chimneys,Buildings.
Features and Benefits
I
ICAO/FAA flashing patterns and medium-intensity
Solar panel 7.2Wp, replaceable Lithium battery 16Ah/7.2V.
Light Output : 360 ° or Any Sector.
Turns on at dusk and off at dawn automatically or by switch.
Completely self-contained and waterproof IP67.
To Charge under nearly all weather conditions and up to 200 hrs of operating capacity from a full charge.
Lens is poly-carbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS .
| SPECIFICATIONS | |||
| Light output | Flashing | ||
Peak Intensity (360°average)
| Red, White | 2000cd±500cd | |
| Visibility | 18km | ||
| Horizontal Output | 360° | ||
| Vertical Divergence | ±7.5° at 50% intensity | ||
| Operation | |||
| Minimum Autonomy | more than 200Hours | ||
| Latitude Range | 55°S to 55°N | ||
| On/Off Level | 60/100 Lux | ||
| Lifespan of LEDS | up to 100,000 Hours | ||
| Details of solar panels | |||
| Type | mono-crystalline | ||
| Maximum Power | 7.2Watts | ||
| Efficiency | 20% | ||
| Details of storage batteries | |||
| Type | Llithium battery , replaceable | ||
| Capacity | 7.2V16AH | ||
| Construction | |||
| Lens material | Polycarbonate | ||
| Colored Lens Option | Red, green, blue, amber, or white | ||
| Mounting Option | 4 bolts or Magnetic base | ||
| Weight | 3.4kg | ||
| Environmental and Electrical | |||
| Temperature Range | -40℃ to +80℃ | ||
| Waterproof | IP67 | ||
| Quality control and Patents | |||
| Quality Assurance | ISO9001:2015 | ||
By now, there are 120,000 sets of Double Wise Solar Aviation Obstuction Light or lighting lamps operating in more than 80 countries all over the world. Eight Chinese patents and over 20 kinds of solar products are a reward for our efforts.
Typical ApplicationsIron
- Tower
- Crane
- High-Building
- Water or Cooling Tower
- Chimney
- Wind Power Generator
Solar Mini Obstruction Light Solar Obstacle Light Solar Obstruction Light
2.Is there an attachment that is suitable for a variety of installation methods?
Yes,there is the FlangeBase as follows. In order to better heat insulation and waterproof,we recommend to use it.
Packaging

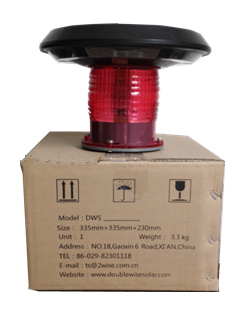

The package of DWS702 aircraft warning lights is 350*350*25mm carton that can be loaded with one light.The weight of one light is 6Kg after packing .
