Product Description

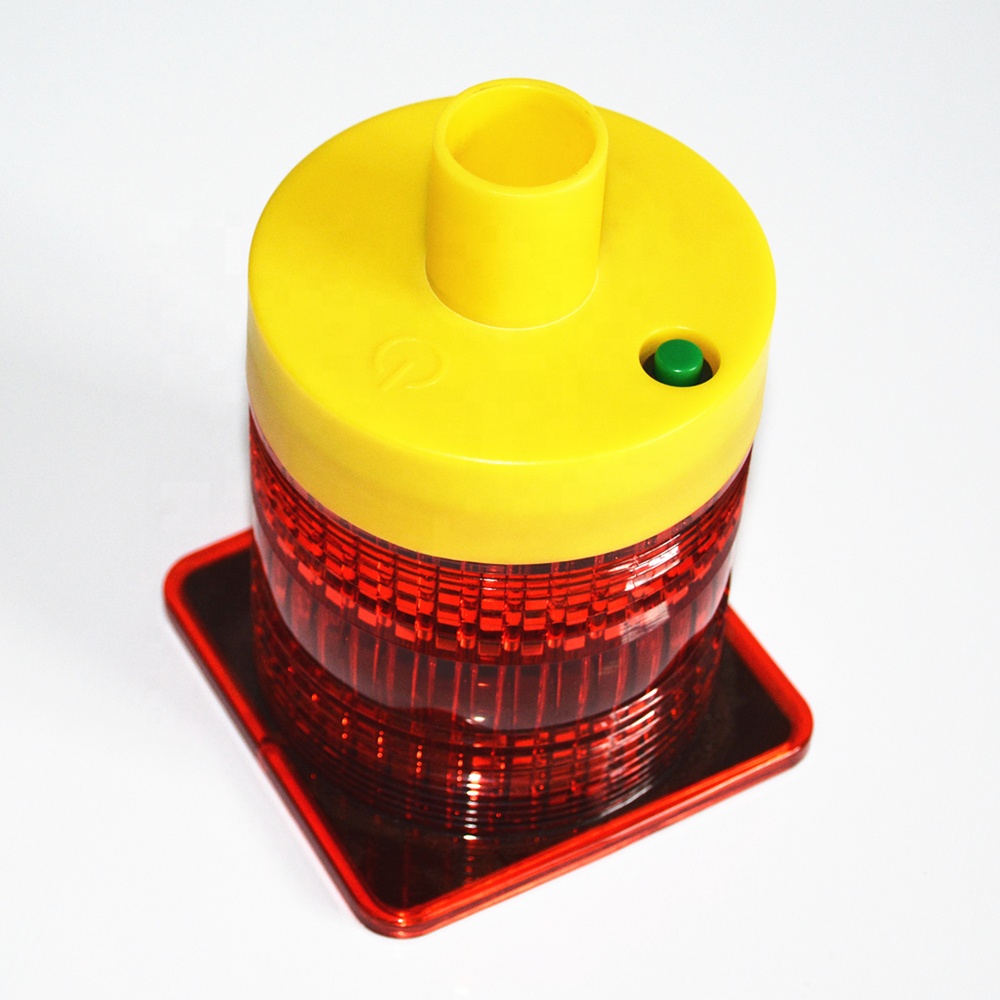

Doublewise Traffic Safety Beacon Solar Led Rotating Barricade light
Features and Benefits
Red and blue alternate rotary Flashing and its visibility up to 4KM.
Available in blue, red, amber, white and green.
Solar panel 1.1Wp, replaceable Ni-HM battery 2.5Ah.
Turns on at dusk and off at dawn automatically.
Completely self-contained and waterproof IP65.
Charge under nearly all weather conditions and up to 140 hrs of operating capacity from a full charge.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS.
Product Parameters
Specifications | |
Light Output | 360° Red /Blue Rotary Flashing |
Average Intensity | 7cd |
Visibility | 4Km |
LEDs and its Lifespan | 10 Pcs and its lifespan up to 50000 Hrs |
Minimum Autonomy | 140 Hours |
ON/OFF Level | 60/100 Lux |
Latitude Range | 55°S to 55°N |
Solar panel | mono-crystalline;Maximum Power 1.1Wp;Efficiency 16% |
Battery | Ni-MH2.5Ah/2.4V |
Lens Material and Color | Polycarbonate and White |
Weight / Waterproof | 0.35Kg / IP65 |
Temperature Range | -40℃ to +80℃ |
Quality Assurance | ISO9001:2015 |
Typical Applications
Crane warning
Dimension Drawings
Marine Warning
• Buoy Marking
• Aqua Cage
• Beacon Lighting
• Ocean Engineering
Traffic Warning
• Barricade
• Dangerous Sign
• Temporary Warning
• Slow Alert
DWS203 at Night
DWS203 in a High-buiding
Safety Warning
• Mining
• Hazardous Zone
• Equipment Marker
• Pad Transformer
Aviation Obstruction Lighting
• Tower
• Chimney
• High-building
•Crane
Related Products
Our Company
Certifications
FAQ
1. Under what circumstances DWS203 with a touch switch should be chosen?
In order to ensure reliable waterproof IP67,we strongly recommend you to choose DWS203 with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc..
Except for the marine case,DWS203 only need a ordinary switch and its waterproof is IP65.
2.What is the difference of IP67 and IP68?
For solar lights,IP67 is the same as IP68.There are three reasons as follows:
• IP means Ingress Protection.The international safety standard for IP is IEC60529.IP codes have the format IP××,where the ×× represent numerals from the coding scheme(see Table 1 and Table 2);
In order to ensure reliable waterproof IP67,we strongly recommend you to choose DWS203 with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc..
Except for the marine case,DWS203 only need a ordinary switch and its waterproof is IP65.
2.What is the difference of IP67 and IP68?
For solar lights,IP67 is the same as IP68.There are three reasons as follows:
• IP means Ingress Protection.The international safety standard for IP is IEC60529.IP codes have the format IP××,where the ×× represent numerals from the coding scheme(see Table 1 and Table 2);
Numeral | Characterization of Ingress Limit |
0 or X | Not evaluated |
1 | ≥50.0 mm diameter object |
2 | ≥12.5 mm diameter object |
3 | ≥2.5 mm diameter object |
4 | ≥1.0 mm diameter object |
5 | Dust-protected |
6 | Dust-tight |
Table I.The first numeral in an IP code indicates the degree of protection from solid foreign objects.
Numeral | Characterization of Ingress Limit |
0 or X | Not evaluated |
1 | Dripping water:vertical |
2 | Dripping water:15°tilt |
3 | Spraying water |
4 | Splashing water |
5 | Jetting water |
6 | Powerful jetting water |
7 | Temporary immersion |
8 | Continuous immersion |
Table II.The second numeral in an IP code indicates the degree of protection from moisture.
• In all practical applications,it is impossible for a solar light to immerse under water for long time because it couldn't be charged in such case.So IP68 for solar lights is nonsense.
• No solar light can pass through the IP68 testing for sure,because it can't be charged for a long time under the water.The IP68 expression in a solar light only be speculation gimmicks and attempts to mislead users.
• In all practical applications,it is impossible for a solar light to immerse under water for long time because it couldn't be charged in such case.So IP68 for solar lights is nonsense.
• No solar light can pass through the IP68 testing for sure,because it can't be charged for a long time under the water.The IP68 expression in a solar light only be speculation gimmicks and attempts to mislead users.
Packing & Delivery
Packing
The package of DWS203 is a 420*320*160mm carton that can be loaded with 12 lights.The weight of one light is 0.35Kg after packing,so the gross weight of 12 lights is 5Kg .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
