It installs in minutes and requires no maintenance or servicing for up to five years.
Product Description

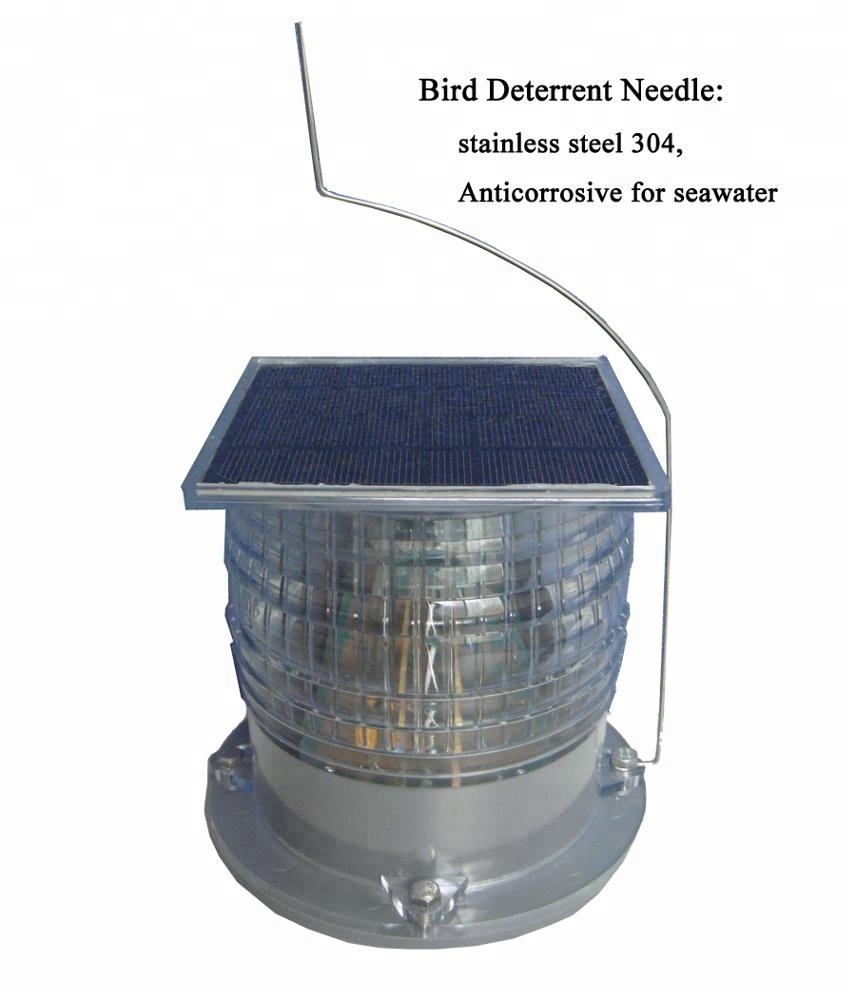

Solar Aircraft Aviation Obstacle Light as a FAA L-810 or ICAO Low-intensity Type B
Features and Benefits
Red,Steady-Burning and its intensity is more than 32cd.
Solar panel 2.7Wp, replaceable Ni-HM battery 4.8Ah/4.8V.
Turns on at dusk and off at dawn automatically.
Charge under nearly all weather conditions and up to 150 hrs of operating capacity from a full charge.
Completely self-contained and waterproof IP65.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Individual dome can protect the solar panel and raise its efficiency.
Manufactured to ISO9001:2008 QAS and certified CE.
Product Parameters
Specifications | |
Light Output | STEADY ON , Red, 360° |
Standards | ICAO Annex 14 Vol. Ⅰ and FAA AC 70/7460-1k |
Intensity / Visibility | ≥32cd / 5Km |
Minimum Autonomy | 150 Hours |
LED | Numbers: 12Pcs Lifespan: up to 50,000 Hrs |
Environmental Conditions | Latitude Range: 55°S to 55°N On/Off Level: 60/100 Lux Temperature Range: -40℃ to +80℃ Waterproof: IP65 |
Solar panels | Mono-crystalline;Maximum Power 2.7Wp;Efficiency 16% |
Battery | Ni-Mh , Replaceable;4.8Ah/4.8V |
Lens Material | Polycarbonate |
Mounting Option | 4 bolts or Magnetic base |
Quality Assurance | QAS: ISO9001:2008 CE: CTR090817073E |
Patents | Chinese patents: ZL201430444455.3 Other patents pending |
Alarm output | Optional |
Typical Applications
● Iron Tower
● Crane
● Wind Power Generator
● High-Building
● Chimney
● Water or Cooling Tower
Related Products
Solar Mini Obstacle Light
DWS201A
Solar Obstacle Light
DWS301A
Solar Obstruction Light
Medium_intensity
DWS702
Our Company
Certifications
FAQ
Table 2 Specifications for Obstruction Lighting Equipment Classification | ||
Type | Description | |
L-810 | Steady-burning Red Obstruction Light | |
L-856 | High Intensity Flashing White Obstruction Light(40FPM) | |
L-857 | High Intensity Flashing White Obstruction Light(60FPM) | |
L-864 | Flashing Red Obstruction Light(20-40FPM) | |
L-865 | Medium Intensity Flashing White Obstruction Light(40-FPM) | |
L-866 | Medium Intensity Flashing White Obstruction Light(60-FPM) | |
L-864/L-865 | Dual: Flashing Red Obstruction Light(20-40FPM) and Medium Intensity Flashing White Obstruction Light(40FPM) | |
L-885 | Red Catenary 60 FPM | |
FPM=Flashes Per Minute | ||
According to ICAO Annex 14 Volume Ⅰ,the characteristics of low-intensity obstacle lights are as follows.
Light Type Color Signal Type/(flash rate) Peak Intensity(cd) Intensity(cd) at given angles +6° +10°
Low-intensity,Type A Red Fixed 10 Min. 10 Min. 10 Min.
(fixed obstacle)
Low-intensity,Type B Red Fixed 32 Min. 32 Min. 32 Min.
(fixed obstacle)
Low-intensity,Type C Yellow/Blue Flashing 40 Min.
(mobile obstacle) (60~90fpm) 400 Max.
Low-intensity,Type D Yellow Flashing 200 Min.
(Follow-me Vehicle) (60~90fpm) 400 Max.
The Specifications for Obstruction Lights in FAA AC 70/7460 -1k can be seen in the above Table 2.
2. Under what circumstances DWS501A with a touch switchshould be chosen?
In order to ensure reliable waterproof,we recommend you to choose DWS501A with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc. ,then its waterproof level will be increased to IP67.
3.Is there the adapter for easy-installation?
Yes,there is an adapter as follows.
Packing & Delivery
Packing
The package of DWS501A is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
