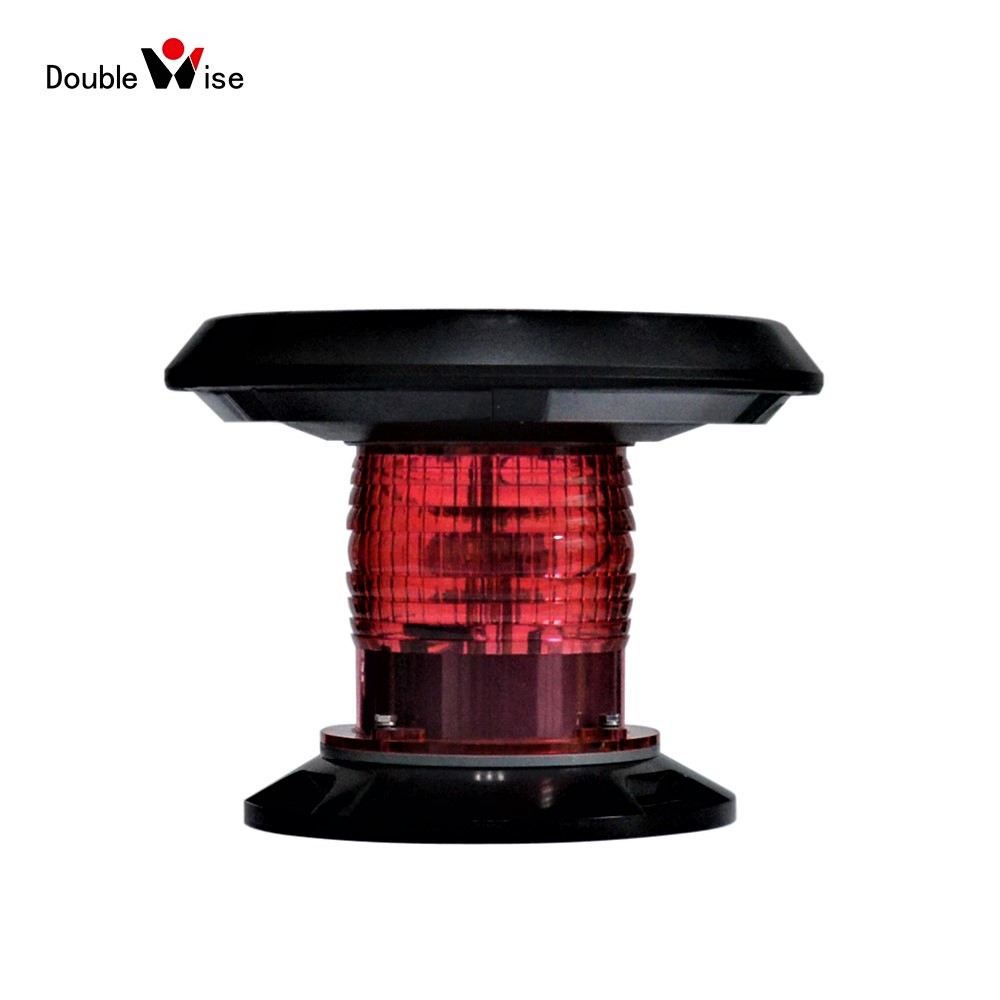

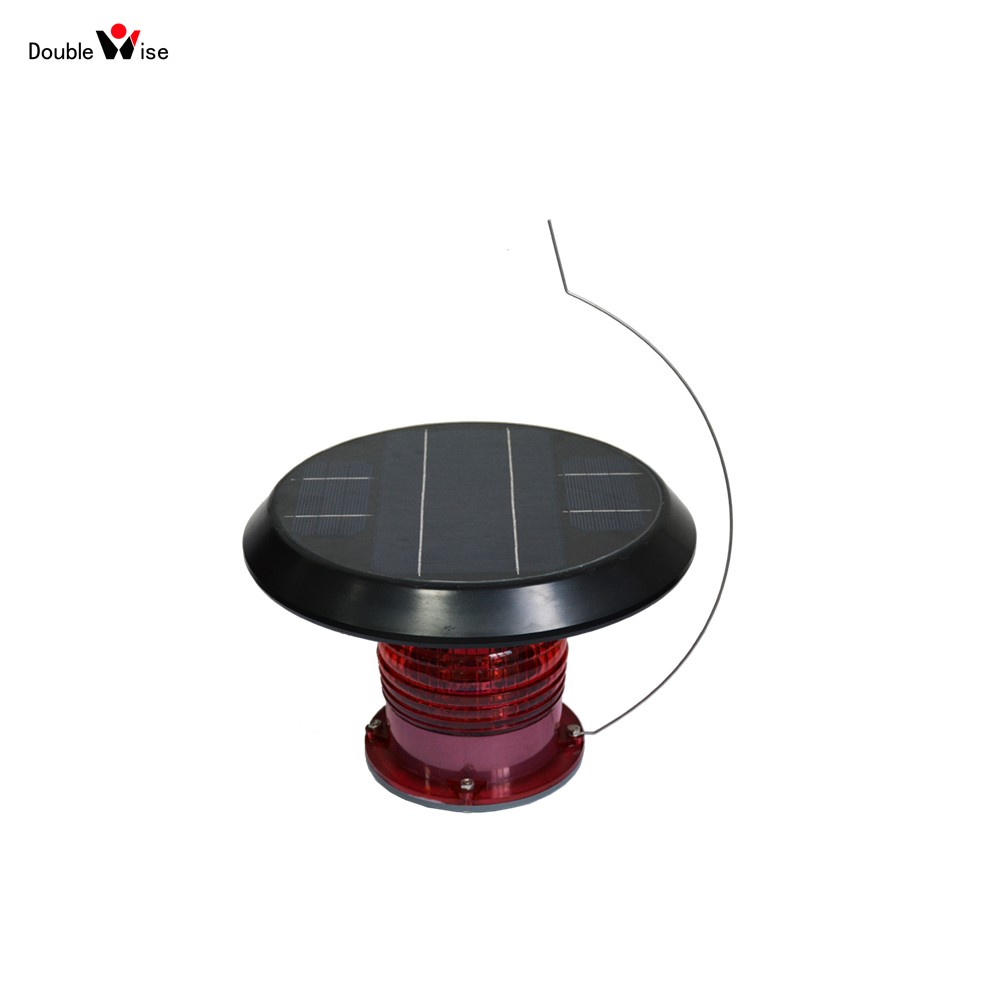

Doublewise High EfficiencySolar LED Offshore Gas&Oil Platform/Dock Navigation Signal Light
DWS 305/6NM High EfficiencySolar LED Offshore Gas&Oil Platform Navigation Signal Light is an industrial strength solar powered light designed for the harshest environments. This model is available in red, green, white and amber colors for dock lighting and safety applications. Available in a Constant Mode and Flashing Mode. Great for dock lighting, marinas, boat houses, safety lighting, channel markers, buoys , obstruction lighting, mooring lights.Super bright LEDs and powerful solar panel provide all night illumination. Mounts virtually anywhere in minutes providing a fast cost effective solution. Easy hassle free mounting, no wires, no mess, no electrical cost.
SPECIFICATIONS | ||||||
Peak Intensity (360°average) | White | 120cd | ||||
Red | 105cd | |||||
Green | 112cd | |||||
Visible Range | 6NM | |||||
Horizontal Output | 112.5° 135° 225° 360° | |||||
Vertical Output | 7.5° | |||||
Minimum Autonomy | 200Hrs | |||||
Available Color | Red White Green Amber Blue | |||||
On/Off Level | 60/100 Lux | |||||
Lifespan of LEDs | up to 100,000hrs | |||||
Solar Module | mono-crystalline, 7.2Watts, 16% | |||||
Battery | Ni-MH, 7.2V/16Ah, replaceable | |||||
Lens Material | UV resistance PC | |||||
Temperature Range | -40℃ to +80℃ | |||||
Waterproof | IP67 | |||||
Weight | 1.8kg | |||||
Size | 320*165*230mm | |||||
By now, there are 120,000 sets of Double Wise High EfficiencySolar LED Offshore Gas&Oil Platform/Dock Navigation Signal Lamp or lighting lamps operating in more than 80 countries all over the world. Eight Chinese patents and over 20 kinds of solar products are a reward for our efforts.
￭Port/Tug Boat/Barge
￭dock entrance&walkway
￭Pier instructions
￭ Harbor/Dredger
￭ Channel Marker
DWS201/TC
DWS305/3NM
DWS305 /4NM
1.What kind of vessels are suitable for use in solar navigation light?
Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..
2. Can this lantern easily be turned off when it isn't used for a long period?
Yes,you can easily turn off this lantern by a touch switch in the side of it.We also suggest that you turn off it when it isn't used for a long time.So it is only charged during the day and discharged at night.
3.Is there an attachment that is suitable for a variety of installation methods?
Yes,there is the adapter as follows. In order to better heat insulation and waterproof,we recommend to use it.
Packaging | ||
Size | 320*165*230mm | |
Weight | N.W.:1.8kg | |
Packaging Details | Each light carton: 340*340*240mm G.W.:4kg | |
