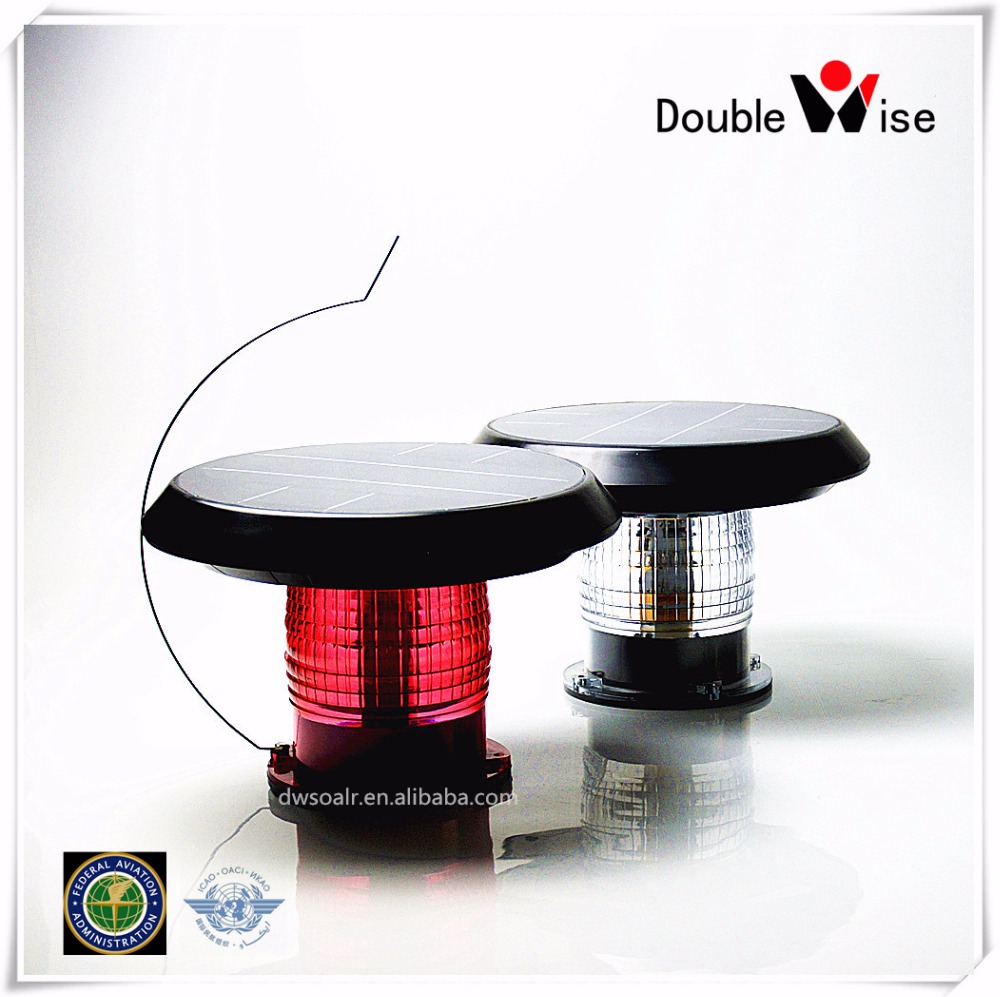

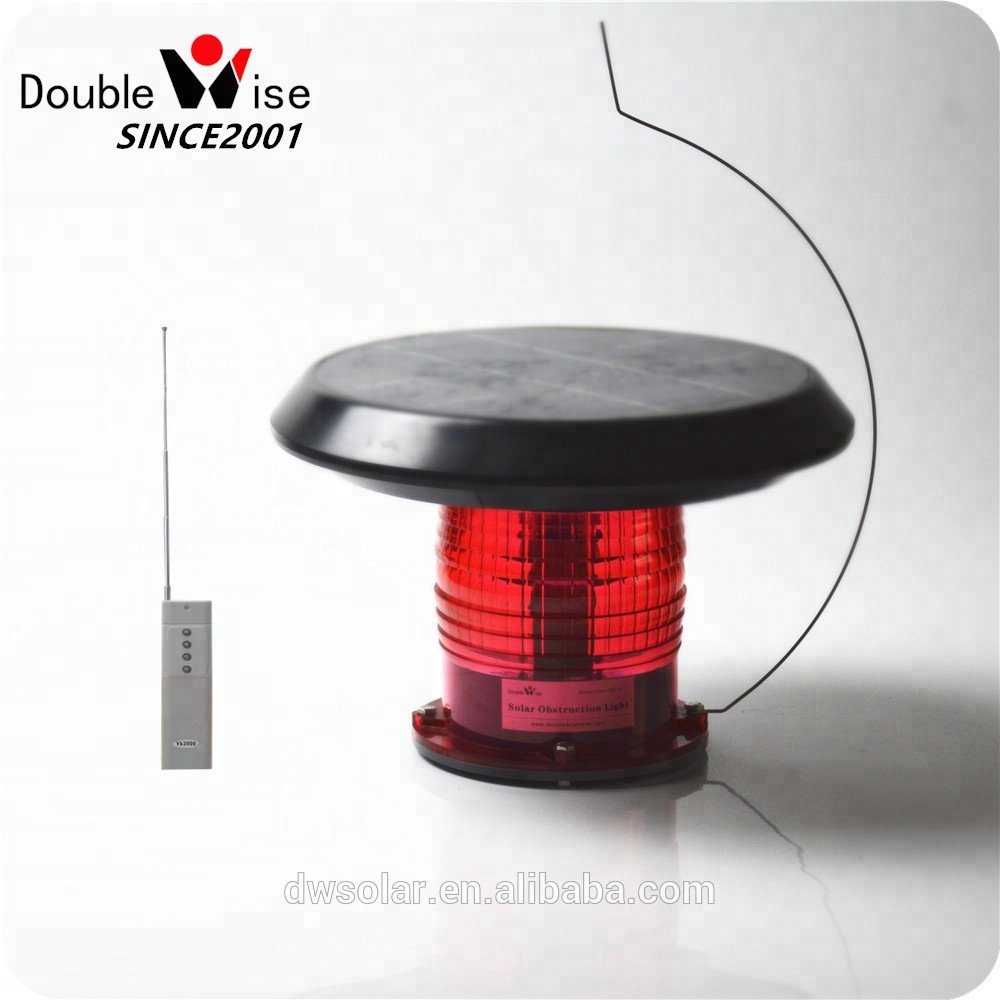

LED GPS Solar Powered Marine Navigation Light with 256 Flashing Patterns
Click on the image to view the original image
Product： views：8LED GPS Solar Powered Marine Navigation Light with 256 Flashing Patterns
Branch： Doublewise
Size： 34X34X20 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
Doublewise
Part:
marine light
Light Output:
256 flashing patterns
Color:
Red Blue Crystal(White) Yellow Green
Mounting Option:
4 boltsor Magnetic base
Standards:
IALA-AISM'S standards
Application:
Marine buoy, marine tower and other marine navigation area

Packaging & Delivery

Selling Units:
Single item
Single package size:
34X34X20 cm
Single gross weight:
4.0 kg
Package Type:
One Carton: 1 light Carton size: 340*340*200mm Total weight: 4Kg
Lead Time:
Quantity(Set)1 - 6>6
Est. Time(days)15To be negotiated
Video Description
Product Description

LED GPS Solar PoweredMarine Navigation Light with 256 Flashing Patterns


DWS703 is a high-quality solar marine light which visibility can be reached up to 7 nautical miles. The self-contained design makes it concision, reliability, durability and easy-operation. Because its shape looks like a mushroom, it also is called "the Solar Mushroom Light". It can combines the warning and lighting function.
The DWS703MC/256 can provide the 256 flashing patterns that comply with IALA, Morse code, SOS code and self-defined codes. These patterns are selected by a touch switch and 8 indicators. If needed, the GPS can be equipped.
Product Parameters
Specification
Light output
flashing
Type
7.2W mono-crystalline with 20% efficiency
Storage battery
7.2V 16AH Lithium battery,replacemeable
Weight
3.4kg
Horizontal output
360°
Temperature range
-40° Cto +80°C
Waterproof
IP67
CE
CTR090817073E
Typical Applications
Related Products
Company Profile
Certifications
FAQ
1. How to choose the flashing pattern?

For each color, there are lists of the 16 flashing patterns as follows.In general,the 16 flashing codes have included all of IALA recommendation codes.For example,the IALA recommendation codes for RED or GREEN only has 9 codes.
We can provide up to 256 codes,but the 16 codes is enough to use for most of users. The choice of 16 flashing patterns will be given as follow.Please see the selecting switch in the bottom of this light and the four indicators at the side of the light,as shown above.

2.Is there an attachment that is suitable for a variety of installation methods?

Yes,there is the adapter as follows. In order to better heat insulation and waterproof,we recommend to use it.
Packing & Delivery

Packing

The package of DWS703 is a 340*340*200mm carton that can be loaded with one light.The weight of one light   is 4Kg after packing .


Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
