Masthead Light--225° White Output
Deck Light--Down White
Barge Light--112.5° ;135°
Morse Signal Light--Morse Code
The four functions of light can be combined and selected by a touch switch or an IRC.
Product Description

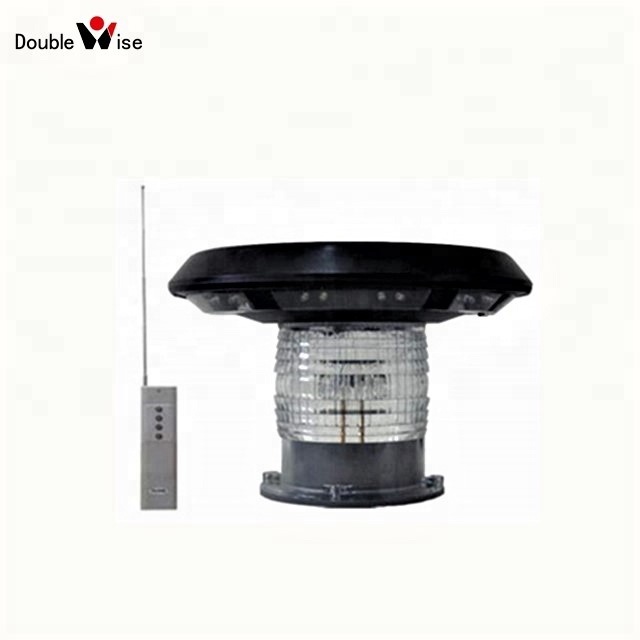

Waterproof Solar Powered LED Barge Boat Navigation Marking Light
DWS305/6NM is a marine solar masthead Deck light designed to comply with the COLREGS(1972) and UL 1104 standards.The light may become one of the following four lamps.
Masthead Light--225° White Output
Masthead Light--225° White Output
Features and benefits
Steady-on and its visibility: 6NM
Solar panel 7.2Wp, replaceable Lithium battery 16Ah/7.2V.
Light Output : 112.5°Port/Starboard;135°Stern.
225°Masthead;360 °Anchor/Morse.
Turns on at dusk and off at dawn automatically or by switch.
Charge under nearly all weather conditions and up to 200 hrs of operating capacity from a full charge.
Lens is poly-carbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS
Product Parameters
SPECIFICATIONS | ||||||
Peak Intensity (360°average) | White | 120cd | ||||
Red | 105cd | |||||
Green | 112cd | |||||
Visible Range | 6NM | |||||
Horizontal Output | 112.5° 135° 225° 360° | |||||
Vertical Output | 7.5° | |||||
Minimum Autonomy | 200Hrs | |||||
Available Color | Red White Green Amber Blue | |||||
On/Off Level | 60/100 Lux | |||||
Lifespan of LEDs | up to 100,000hrs | |||||
Solar Module | mono-crystalline, 7.2Watts, 16% | |||||
Battery | Ni-MH, 7.2V/16Ah, replaceable | |||||
Lens Material | UV resistance PC | |||||
Temperature Range | -40℃ to +80℃ | |||||
Waterproof | IP67 | |||||
Weight | 3.6kg | |||||
Size | 360*360*250mm | |||||
Typical Application
By now, there are 120,000 sets of Double Wise Waterproof Barge Solar Powered LED Navigation Marking Light or lighting lamps operating in more than 80 countries all over the world. Eight Chinese patents and over 30 kinds of solar products are a reward for our efforts.
Product Selection
Company Information
Certifications
FAQ
1.What kind of vessels are suitable for use in solar navigation light?
Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..
2. Can this lantern easily be turned off when it isn't used for a long period?
Yes,you can easily turn off this lantern by unplugging the battery connecting wire inside it.
We also suggest that you turn off it when it isn't used for a long time.So it is only charged during the day and discharged at night.
3.Is there an attachment that is suitable for a variety of installation methods?
Yes, there is the FlangeBase as follows. For better heat insulation and waterproof, we recommend to use it.
Packing & Delivery
Packaging | ||
Size | 360*360*240mm | |
Weight | N.W.:3.6kg | |
Packaging Details | Each light carton: 360*360*240mm N.W.:3.6kg; G.W.:4kg | |
