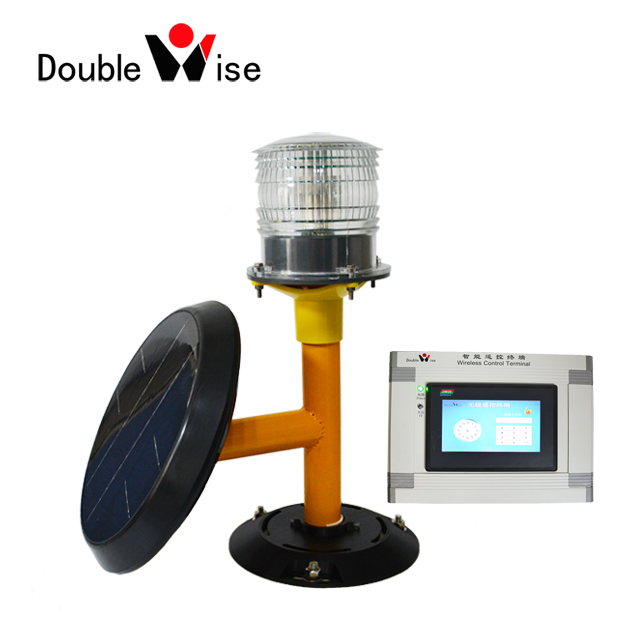

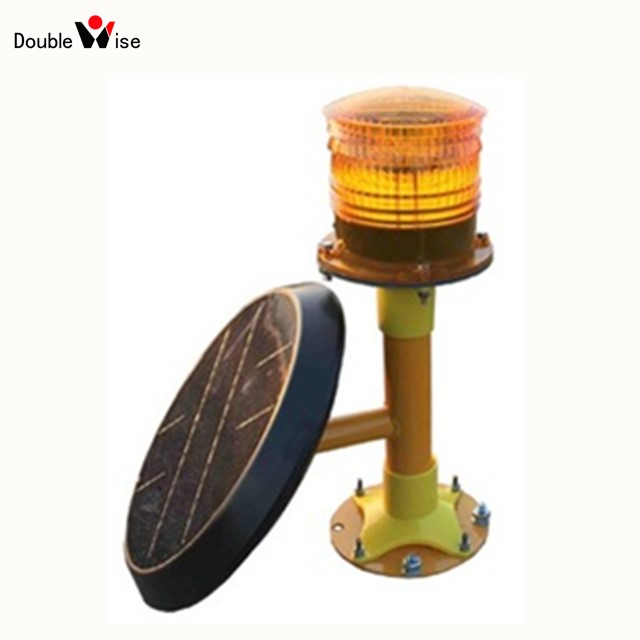

DWSAN605 is an ICAO/FAA standard solar powered airfield runway threshold and edge light that complies with ICAO Annex 14 Volume Ⅰ and FAA. It meets traditional airport requirements in a low-cost, easy-to-install and low-maintenance way. Because of the characteristics of self-contained, durable and anti-UV, it can be widely used for Aeronautical Ground Lighting system without High-voltage and cabling. It can also support the remoting configuration, monitor and control. There are some solar airfield Ground Lighting system references in airports including USA, Brazil, Maldives, Canada and China etc. .
Features and Benefits
The Wireless Control Terminal provides on-demand operations from up to 4Km away.
Color in 180° white +180° yellow ,180° Red +180° Green or 180° white +180° white.
3-step intensity adjustment.
High-efficiency mono-crystalline solar panel and long-lasting Lithium battery.
Lens is made from durable,anti-UV Bayer® polycarbonate.
Manufactured to ISO9001:2015 QAS and certified CE.
Main Specifications | ||||||
Light Output | 360°,STEADY ON | |||||
Intensity Adjustment | Adjustable Low/Medium/High | |||||
Colors | Runway Edge:White /Yellow ,or White/White Runway Threshold: Red/Green | |||||
Light Source | Visible high-power Led and NVG compatible infrared LED | |||||
Minimum Autonomy | High-intensity: 120hrs ; Medium-intensity: 240hrs ; Low-intensity: 360hrs | |||||
Latitude Range | 55°S to 55°N | |||||
On/Off Level | 60/100 Lux | |||||
Lifespan of LEDS | up to 50,000 Hours | |||||
Solar panel | Mono-crystalline;Maximum Power 7.2Wp;Efficiency 20% | |||||
Battery | Lithium, replaceable;16Ah/7.2V | |||||
Lens Material | Polycarbonate with Anti-UV | |||||
Mounting Option | 4 bolts | |||||
Weight / Waterproof | 3.5kg / IP65 | |||||
Temperature Range | -40℃ to +80℃ | |||||
Quality Assurance | ISO9001:2015 | |||||
Patents | Chinese patent: 201320285073.0 | |||||
1. What are benefits of the Solar Airport Lighting?
In general,the solar airport lighting is the better choice in the following cases:
•Airfields that are not needed to fly at night every day;
•Airstrips not easily connected the electrical cable or without electricity;
•Airport renovation or temporary airports.
There are many benefits of Solar Airport Lighting System as follows:
• No High Voltage | • No Isolation Transformers | • No Base Cans |
• No cabling | • No Cable Conduits | • No Grounding |
• No CCRS | • No Vault | • No Bulbs |
• No Glass Lens |
Packing
The package of DWSAN605 is a 340*340*230mm carton for one light.
The weight of one light is 4.5Kg after packing.
