Product Description

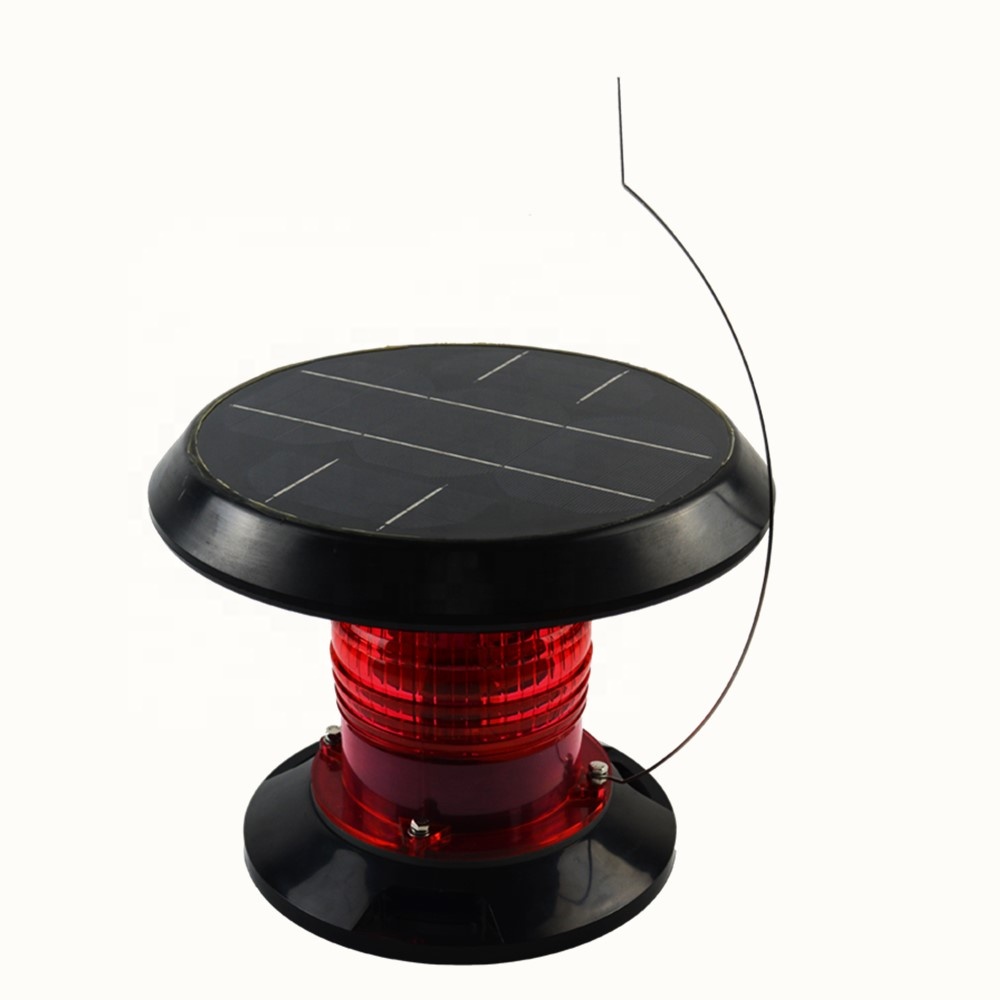

7NM Solar Marine Lantern Light for Navaid,Beacon Lantern,Aviation and Safety Strobes
The Green Solar Mushroom light
Dimension Drawing
The DWS703 is a high-quality solar marine light which visibility can be reached up to 7 nautical miles. The self-contained design makes it concision, reliability, durability and easy-operation. Because its shape looks like a mushroom, it also is called "the Solar Mushroom Light". It can combines the warning and lighting function.
The DWS703 can provide the 256 flashing patterns that comply with IALA, Morse code,SOS code and self-defined codes.These patterns are selected by a touch switch and 8 indicators.If needed,the GPS can be equipped.
The DWS703 can provide the 256 flashing patterns that comply with IALA, Morse code,SOS code and self-defined codes.These patterns are selected by a touch switch and 8 indicators.If needed,the GPS can be equipped.
Features and Benefits
256 flashing patterns and its visibility: 7NM
Solar panel 1.5Wp, replaceable LIthium Battery 16Ah/7.2V.
Light Output : 360° or Any Sector
Turns on at dusk and off at dawn automatically or by a touch switch.
Completely self-contained and waterproof IP67.
Charge under nearly all weather conditions and up to 200 hrs of operating capacity from a full charge.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS and certified CE.
The Amber DWS703 at night
The DWS703 on a buoy
Product Parameters
Typical Applications
Related Products
Our Company
Certifications
FAQ
1. How to choose the flashing pattern?
For each color, there are lists of the 16 flashing patterns as follows.In general,the 16 flashing codes have included all of IALA recommendation codes.For example,the IALA recommendation codes for RED or GREEN only has 9codes.
For each color, there are lists of the 16 flashing patterns as follows.In general,the 16 flashing codes have included all of IALA recommendation codes.For example,the IALA recommendation codes for RED or GREEN only has 9codes.
We can provide up to 256 codes,but the 16 codes is enough to use for most of users. The choice of 16 flashing patterns will be given as follow.Please see the selecting switch in the bottom of this light and the four indicators at the side of the light,as shown above.
2.What is the difference of IP67 and IP68?
For solar lights,IP67 is the same as IP68.There are three reasons as follows:
• IP means Ingress Protection.The international safety standard for IP is IEC60529.IP codes have the format IP××,where the ×× represent numerals from the coding scheme(see Table 1 and Table 2);
Numeral Characterization of Ingress Limit
0 or X Not evaluated
1 ≥50.0 mm diameter object
2 ≥12.5 mm diameter object
3 ≥2.5 mm diameter object
4 ≥1.0 mm diameter object
5 Dust-protected
6 Dust-tight
Table I.The first numeral in an IP code indicates the degree of protection from solid foreign objects.
Numeral Characterization of Ingress Limit
0 or X Not evaluated
1 Dripping water:vertical
2 Dripping water:15°tilt
3 Spraying water
4 Splashing water
5 Jetting water
6 Powerful jetting water
7 Temporary immersion
8 Continuous immersion
Table II.The second numeral in an IP code indicates the degree of protection from moisture.
• In all practical applications,it is impossible for a solar light to immerse under water for long time because it couldn't be charged in such case.So IP68 for solar lights is nonsense.
• No solar light can pass through the IP68 testing for sure,because it can't be charged for a long time under the water.
2.What is the difference of IP67 and IP68?
For solar lights,IP67 is the same as IP68.There are three reasons as follows:
• IP means Ingress Protection.The international safety standard for IP is IEC60529.IP codes have the format IP××,where the ×× represent numerals from the coding scheme(see Table 1 and Table 2);
Numeral Characterization of Ingress Limit
0 or X Not evaluated
1 ≥50.0 mm diameter object
2 ≥12.5 mm diameter object
3 ≥2.5 mm diameter object
4 ≥1.0 mm diameter object
5 Dust-protected
6 Dust-tight
Table I.The first numeral in an IP code indicates the degree of protection from solid foreign objects.
Numeral Characterization of Ingress Limit
0 or X Not evaluated
1 Dripping water:vertical
2 Dripping water:15°tilt
3 Spraying water
4 Splashing water
5 Jetting water
6 Powerful jetting water
7 Temporary immersion
8 Continuous immersion
Table II.The second numeral in an IP code indicates the degree of protection from moisture.
• In all practical applications,it is impossible for a solar light to immerse under water for long time because it couldn't be charged in such case.So IP68 for solar lights is nonsense.
• No solar light can pass through the IP68 testing for sure,because it can't be charged for a long time under the water.
The IP68 expression in a solar light only be speculation gimmicks and attempts to mislead users.
3.Is there an attachment that is suitable for a variety of installation methods?
Yes,there is theadapter as follows. In order to better heat insulation and waterproof,we recommend to use it.
Numeral | Characterization of Ingress Limit |
0 or X | Not evaluated |
1 | ≥50.0 mm diameter object |
2 | ≥12.5 mm diameter object |
3 | ≥2.5 mm diameter object |
4 | ≥1.0 mm diameter object |
5 | Dust-protected |
6 | Dust-tight |
Table I.The first numeral in an IP code indicates the degree of protection from solid foreign objects.
Numeral | Characterization of Ingress Limit |
0 or X | Not evaluated |
1 | Dripping water:vertical |
2 | Dripping water:15°tilt |
3 | Spraying water |
4 | Splashing water |
5 | Jetting water |
6 | Powerful jetting water |
7 | Temporary immersion |
8 | Continuous immersion |
Table II.The second numeral in an IP code indicates the degree of protection from moisture.
• In all practical applications,it is impossible for a solar light to immerse under water for long time because it couldn't be charged in such case.So IP68 for solar lights is nonsense.
• No solar light can pass through the IP68 testing for sure,because it can't be charged for a long time under the water.
• In all practical applications,it is impossible for a solar light to immerse under water for long time because it couldn't be charged in such case.So IP68 for solar lights is nonsense.
• No solar light can pass through the IP68 testing for sure,because it can't be charged for a long time under the water.
The IP68 expression in a solar light only be speculation gimmicks and attempts to mislead users.
s.3.Is there an attachment that is suitable for a variety of installation methods?
Yes,there is the adapter as follows. In order to better heat insulation and waterproof,we recommend to use it.
Packing & Delivery
Packing
The package of DWS703 is a 340*340*200mm carton that can be loaded with one light.The weight of one light is 4Kg after packing .
