Bi-Color RED GREEN Rechargeable LED Solar Mineral Warning LightsBi-Color RED GREEN Rechargeable LED Solar Mineral Warning Lights
fic Warning Solar LED Rotating Lights for Truck Car and Vehicle with Magnetic Base

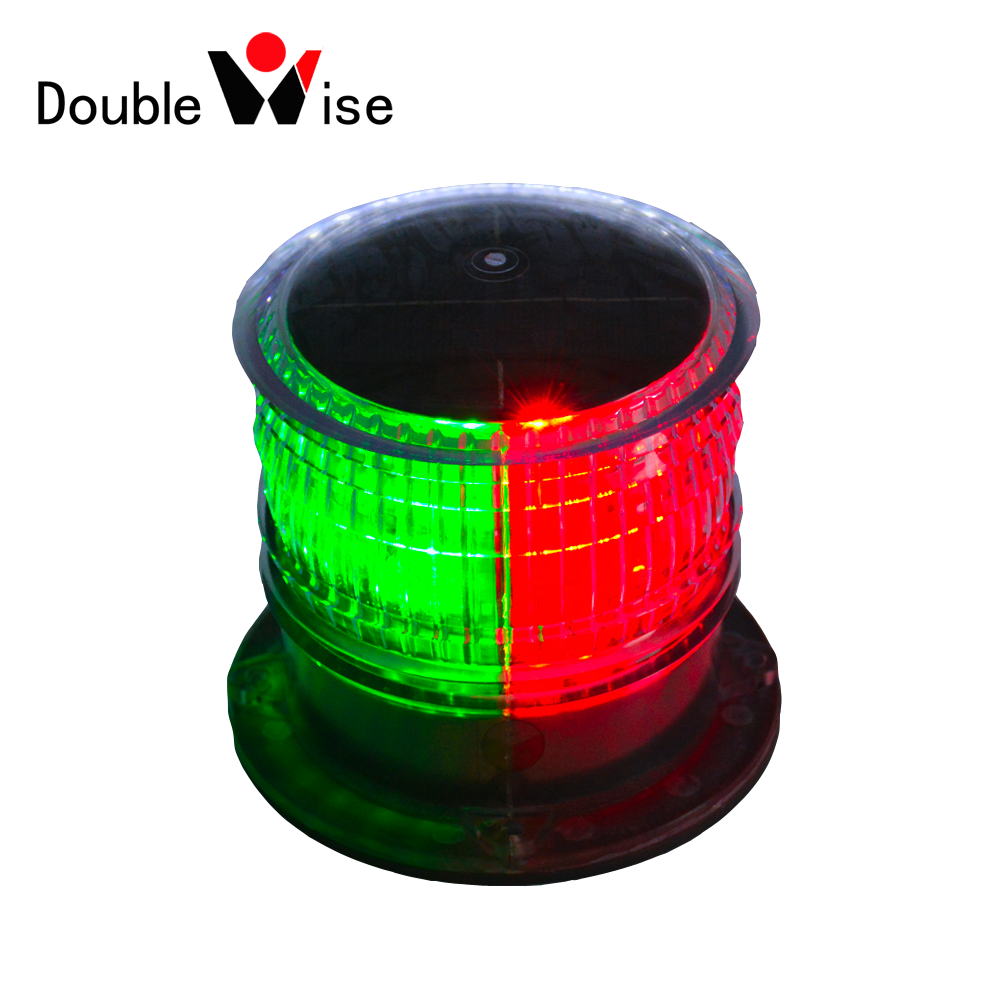

DWS301/BC Bi-Color RED GREEN Rechargeable LED Solar Mineral Warning Light is designed to meet the need of the bidirectional warning such as the one-way street in a city, Runway end in an airport etc. It preserves all characteristics of DWS302 as self-contained, concision, reliability, durability and easy-operation. It is installed or removed in minutes and requires no maintenance or servicing for up to five years.
Features and Benefits
180°red, 180°green in opposite direction.
Can be controlled in “steady on ”or any needed flashing pattern.
Automatically turns on at dusk and off at dawn
Completely self-contained and watertight.
Polycarbonate lens is virtually indestructible.
Will charge under nearly all weather conditions and up to 100 hours of operating capacity from a full charge.
Manufactured to ISO9001:2008 Quality Assurance standards.
| SPECIFICATIONS | ||
| Light output | Rotating | |
Peak Intensity (360°average) Adjustable | Red | 12cd |
| Green | 14cd | |
| Visibility | 5km | |
| Horizontal Output | 360° | |
| Vertical Divergence | ±3.5° at 50% intensity | |
| Operation | ||
| Minimum Autonomy | 200Hours | |
| Latitude Range | 55°S to 55°N | |
| On/Off Level | 60/100 Lux | |
| Lifespan of LEDS | up to 100,000 Hours | |
| Details of solar panels | ||
| Type | mono-crystalline | |
| Maximum Power | 1.5Watts | |
| Efficiency | 16% | |
| Details of storage batteries | ||
| Type | Ni-MH , replaceable | |
| Capacity | 2.4V4.8Ah | |
| Construction | ||
| Lens material | Polycarbonate | |
| Colored Lens Option | Red, green, blue, amber, or white | |
| Mounting Option | 4 bolts or Magnetic base | |
| Weight | 0.9kg | |
| Environmental and Electrical | ||
| Temperature Range | -40℃ to +80℃ | |
| Waterproof | IP67 | |
| Quality control and Patents | ||
| Quality Assurance | ISO9001:2008 | |
| CE | CTR090817073E | |
| Patents | Chinese patents: 02224444.1 and 200430015589.3 Other patents pending | |
Packaging
The package of DWS301/BC Bi-Color RED GREEN Rechargeable LED Solar Mineral Warning Light is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The gross weight of each light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg.
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
By now, there are 120,000 sets of Double Wise Rechargeable LED Solar Mineral Warning Lightsoperating in more than 80 countries all over the world. Eight Chinese patents and over 20 kinds of solar products are a reward for our efforts.
- One-way street marking
- Safety marker
- Runway end marking
- Railway end markers
- Mineral haul road warning
- Temporary road markers
Police Guard House On the top of Car Mining Site Mining Truck
1.How many is the pulling force of the magnet in DWS301/BC Bi-Color RED GREEN Rechargeable LED Solar Mineral Warning Light ?
The magnet of DWS301/BC is made of 12 magnetic units ,and its total force is about 40KG.
2.Can the flashing pattern be customized for solar lights?
Of course,we have the Code Base that has 328 kinds flashing patterns.When a special flashing code is needed,you just need to tell us.
3.What are the two colors of DWS301/BC Bi-Color RED GREEN Rechargeable LED Solar Mineral Warning Light ?
Generally speaking,the two colors of DWS301/BC are Red and Green.But when you need other colors,please tell us.We provided the solar rotary light for the sentry box and the Red/Amber alternative flashing light for heavy tracks.
