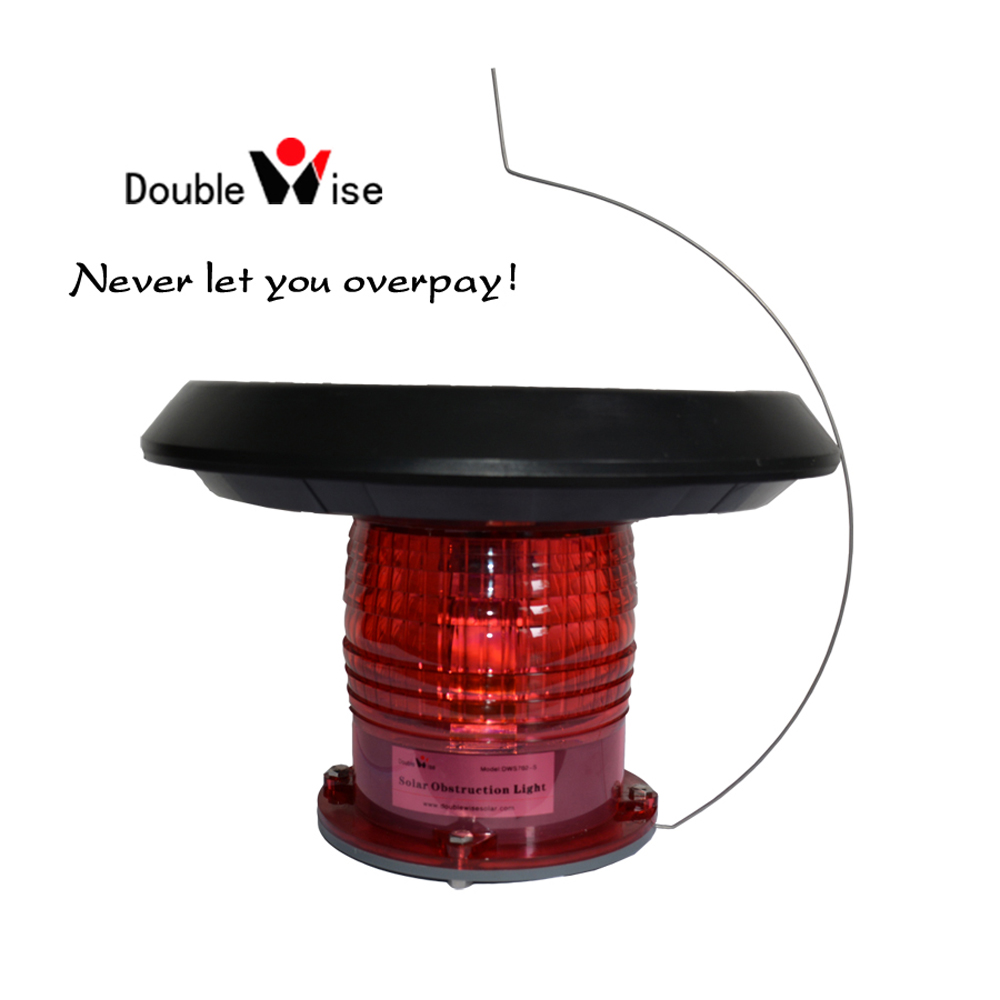

The DWS702A is a high-quality medium intensity solar aviation light which complies with FAA AC70/7460-1k and ICAO Annex 14 Volume Ⅰ. The self-contained design makes it concision, reliability, durability and easy-operation. Because its shape looks like a mushroom, it also is called as "Solar Mushroom Light". It can complete the synchronization of many lamps by GPS and is widely used in Aviation Warning of Iron Towers,Chimneys,Buildings,Crane etc..
Product Description
L864 Medium Intensity Solar Aviation Light
Features and Benefits
Medium intensity ICAO/FAA flashing patterns
Solar panel 7.2Wp, replaceable LIthium Battery 16Ah/7.2V.
Light Output : 360°
Turns on at dusk and off at dawn automatically or by a touch switch.
Completely self-contained and waterproof IP67.
Charge under nearly all weather conditions and its minimum autonomy up to 200 hrs from a full charge.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2008 QAS.
The High building Solar Obstruction light
Dimension Drawing
Product Parameters
Main Specifications | |
Model / Name | DWS702 / Medium-intensity Solar Aviation Light |
Peak Intensity | 2000 cd ±25% |
Source | Ultra-intensity LED |
Vertical Divergence | ±7.5° at 50% intensity |
Horizontal Output | 360° |
Minimum Autonomy | 200 Hours |
Solar Panel | Mono-crystalline , Maximum Power : 7.2 watts , Efficiency:16% |
Battery | Lithium , 16Ah/7.2V,Replaceable |
Lens Material / Weight | Polycarbonate / 3.4kg |
Waterproof | as per IP67 |
Patents | Chinese patents: 201320285.73.0 Other patents pending |
Optional | GPS Synchronization |
Typical Applications
● Iron Tower
● Crane
● High-Building
● High-Building
● Water or Cooling Tower
● Chimney
● Wind Power Generator
Related Products
LED Obstruction Light
DWS301A
Solar Mini Obstacle Light
DWS202
Solar Obstruction Light
DWS501A
Our Company
Certifications
FAQ
1. How to complete the synchronization of all the lights in an area?
DWS702 accomplishes the synchronization of many lights through the GPS.Because this way is wireless,the number of synchronized lights is unlimited and the cost is more economical than these needed a wire-controller
2.Is there an attachment that is suitable for a variety of installation methods?
Yes,there is theadapter as follows. In order to better heat insulation and waterproof,we recommend to use it.
Packing & Delivery
Packing
The package of DWS702A is a 350*350*250mm carton that can be loaded with one light.The weight of one light is 6Kg after packing .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
