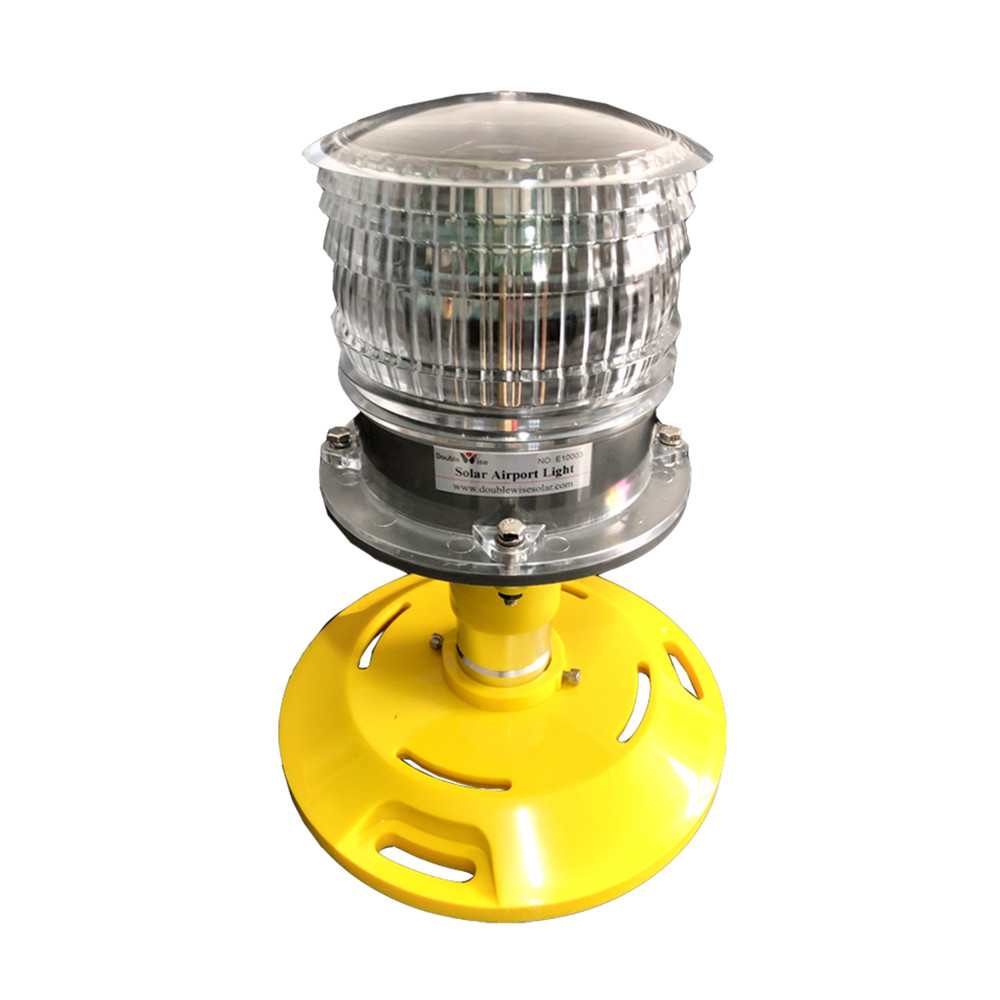

Doublewise Bi-color Runway Threshold Solar Airport Light
DWSAN605SG is an ICAO/FAA standard solar powered airfield runway threshold and edge light that complies with ICAO Annex 14 Volume Ⅰ and FAA. It meets traditional airport requirements in a low-cost, easy-to-install and low-maintenance way. Because of the characteristics of self-contained, durable and anti-UV, it can be widely used for Aeronautical Ground Lighting system without High-voltage and cabling. It can also support the remoting configuration, monitor and control. There are some solar airfield Ground Lighting system references in airports including USA, Brazil, Maldives, Canada and China etc.
Features and Benefits
Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.
180°red, 180°green in opposite direction.
Comletely self-contained.
Charge under nearly all weather conditions and up to 100 hours of operating capacity from a full charge.
Individual dome can protect the solar panel and raise its efficiency.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS and certified CE.
Product Parameters
Typical Applications
Product Selection
Our Company
Certifications
FAQ
1.Under what circumstances, the runway threshold light is more suitable for the use of solar power?
Runway threshold lights shall be fixed lights showing Red and Green and can be chose in the following cases.
Runway threshold lights shall be fixed lights showing Red and Green and can be chose in the following cases.
• Airfields that are not needed to fly at night every day;
• Airstrips not easily connected the electrical cable or without electricity;
• Airport renovation or temporary airports.
• Airstrips not easily connected the electrical cable or without electricity;
• Airport renovation or temporary airports.
2.Can the remote control be achieved in the Airport Towerfor solar navigation lights?
Yes,these lights can be controlled to turn on/off and adjust the intensity by a wireless controller in the Airport Tower.
3.Is there the Fragile Pole for easy-installation?
Yes,there is a fragile pole and complies with IACO Annex 14,Volume I as follow
Packing & Delivery
Packing
The package of DWSANSG is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
