Home > Products > Solar lighting 12-feet Windsock Weather Wind Cone
Solar lighting 12-feet Windsock Weather Wind Cone
Click on the image to view the original image
Product: views:3Solar lighting 12-feet Windsock Weather Wind Cone
Branch: Doublewise
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Certification:
CE
Emitting Color:
Red
Lamp Body Material:
PC
Light Source:
LED
Place of Origin:
Shaanxi, China
Brand Name:
Doublewise
BracketMaterial:
Stainless Steel
Application:
Airport,Helipad,Hospital
Feature:
with a Solar Obstruction Light and an internal floodlight
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
One Carton( 340*340*230,7Kg) + Wooden Box(970*970*200,37KG)
Port
SHENZHEN
Lead Time:
Quantity(Sets)1 - 2 >2
Est. Time(days)30To be negotiated
Video Description
Product Description

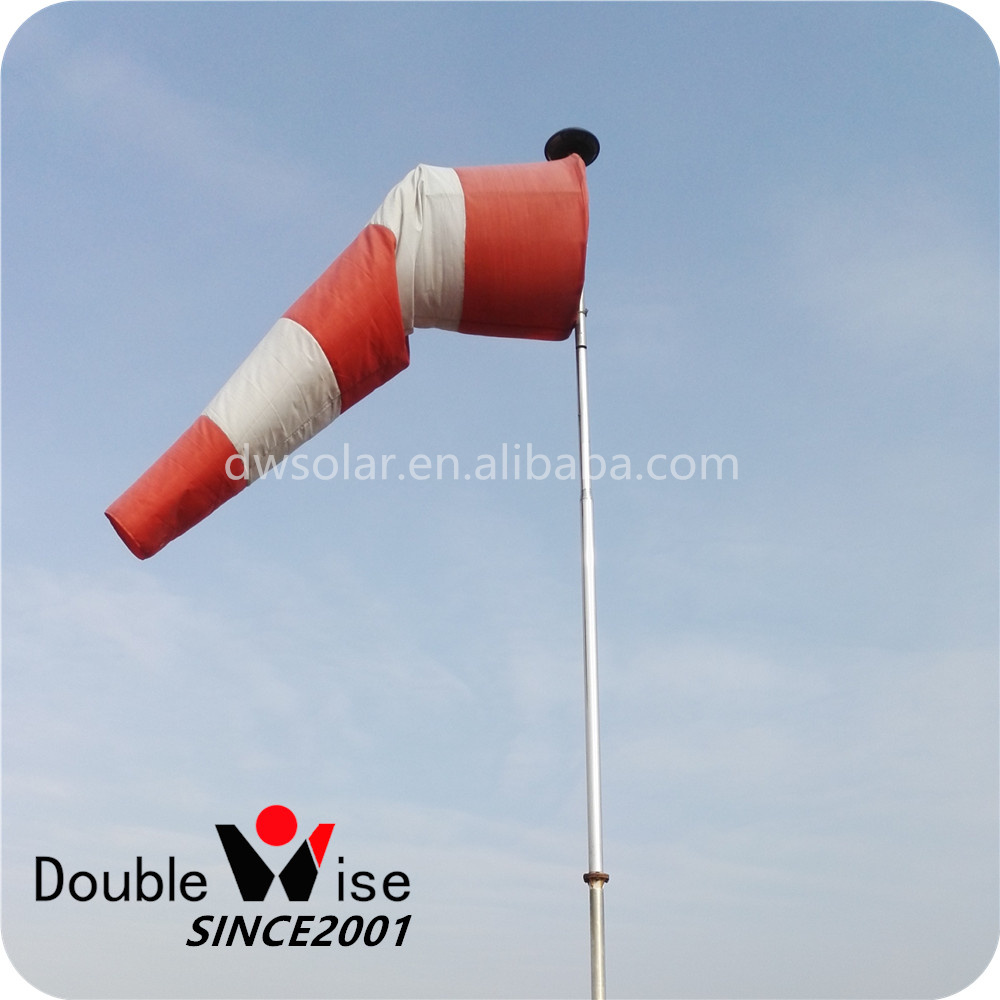

Solar lighting 12-feet Windsock Weather Wind Cone

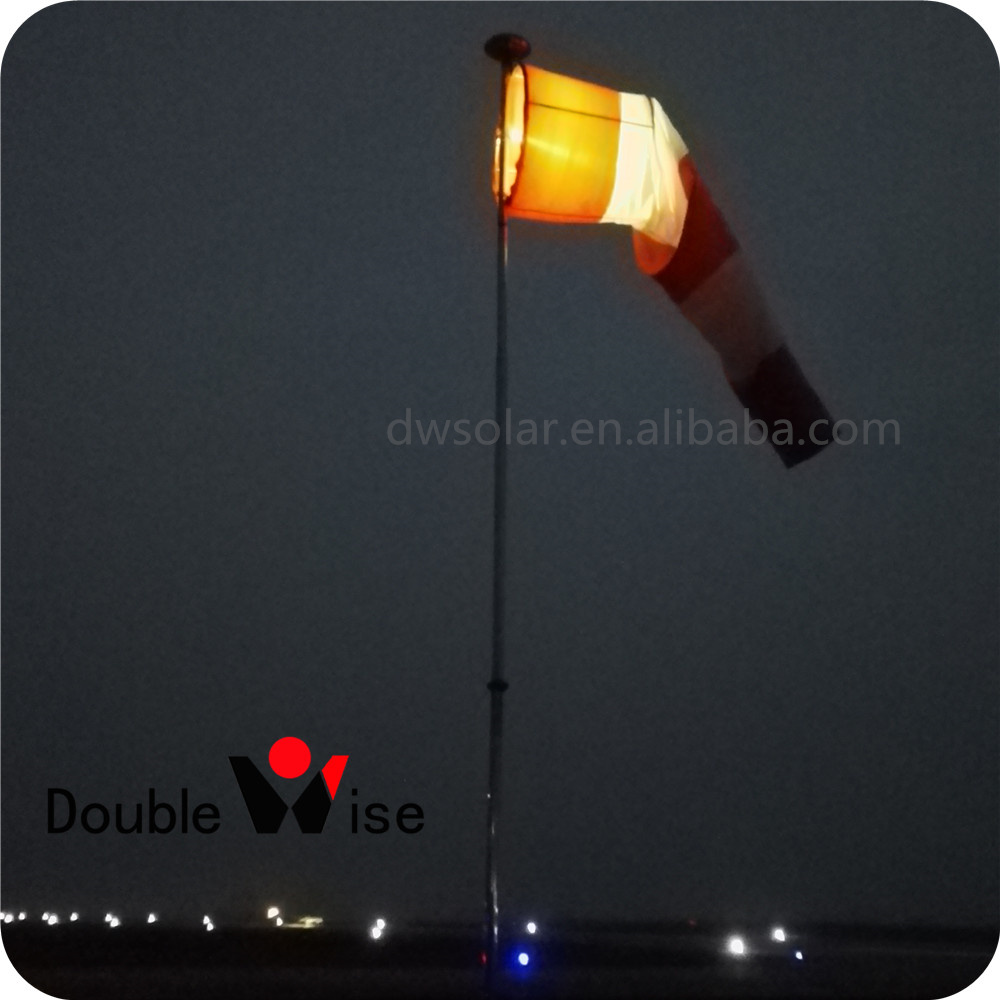

The Solar lighting 12-feet Windsock Weather Wind Cone is used to visually indicate the wind direction for Airports,helipads,Hospitals,Military Bases and Corporate Headquarters.The weather vane DWS-WC-807 includes a 12-feet wind sock, a solar obstruction light and a solar internal floodlight. It complies with FAA AC 150/5345-27E.

Features and Benefits

12 feet(3.6 meters),Size 2 Red/White sock.

Detachable stainless steel bracket for sock.

Solar panel 7.2Wp, replaceable Lithium battery 16Ah/7.4V.

The working mode is chosen by the remote controller.


Lens is poly-carbonate with anti-UV which is produced by Bayer.

Completely solar self-contained and waterproof IP65.

Manufactured to ISO9001:2015 QAS.

Product Parameters
Typical Applications
Product Selection
Our Company
Certifications
FAQ
1.How to choose the working mode?

The working mode of DWS-WS-807 is chosen by the remote controller that has four keys---1,2,3 and 4.
Key 1: The obstruction light and floodlight are turned ON;
When these night landing lights are needed,the mode has to be used.
Key 2: The obstruction light is turned ON only;
Whenthere are not flying tasks at night,this working mode is the best choice.
Key 3: The floodlight is turned ON only;
Key 4: The two lights are turned OFF;
When the wind vane isn't used for a long period,the mode should be chosen.

Please note the remote controller has a switch on its side and turn off this switch after operated.

2. How to install the bracket of the windsock?

The configuration of the wind vane can be seen in Fig. Configuration in which the numbers  ①~⑦ represent the following meaning:
① Stainless Steel Bracket
② LED Floodlight
③ Stainless Steel Connector ④ Stainless Steel Support
⑤ Solar Obstruction Light
⑥ Windsock
⑦ Pole

The assembly steps for each component are as follows:

Step 1: Connect ① and ④ with ③ ;
Please note: Connecting ③ to ① and connecting③  to④ must be synchronized.

Step 2: Connect ② to ① and fasten with a setscrew. (Note: Please use mild strength)

Step 3: Connect conductors between ⑤ and ①, fasten using screws (Note: please connect correctly by connecting the same color conductors (e.g. red to red; black to black))

Step 4: Insert the frame consisted of ①, ③ and ④ into ⑥, fasten with ropes.

Step 5: Connect the assembly from step 1 to 4 with ⑦ using screws.Yes,you can easily turn off this lantern by a touch switch in the side of it.We also suggest that you turn off it when it isn't used for a long time.So itis only charged during the day and discharged at night.
Packing & Delivery

Packing

The package of DWS-WC-807 is a 340*340*20 carton and a 970*970*200 wooden box.The weight of it  is 44Kg after packing .


Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
