Click on the image to view the original image

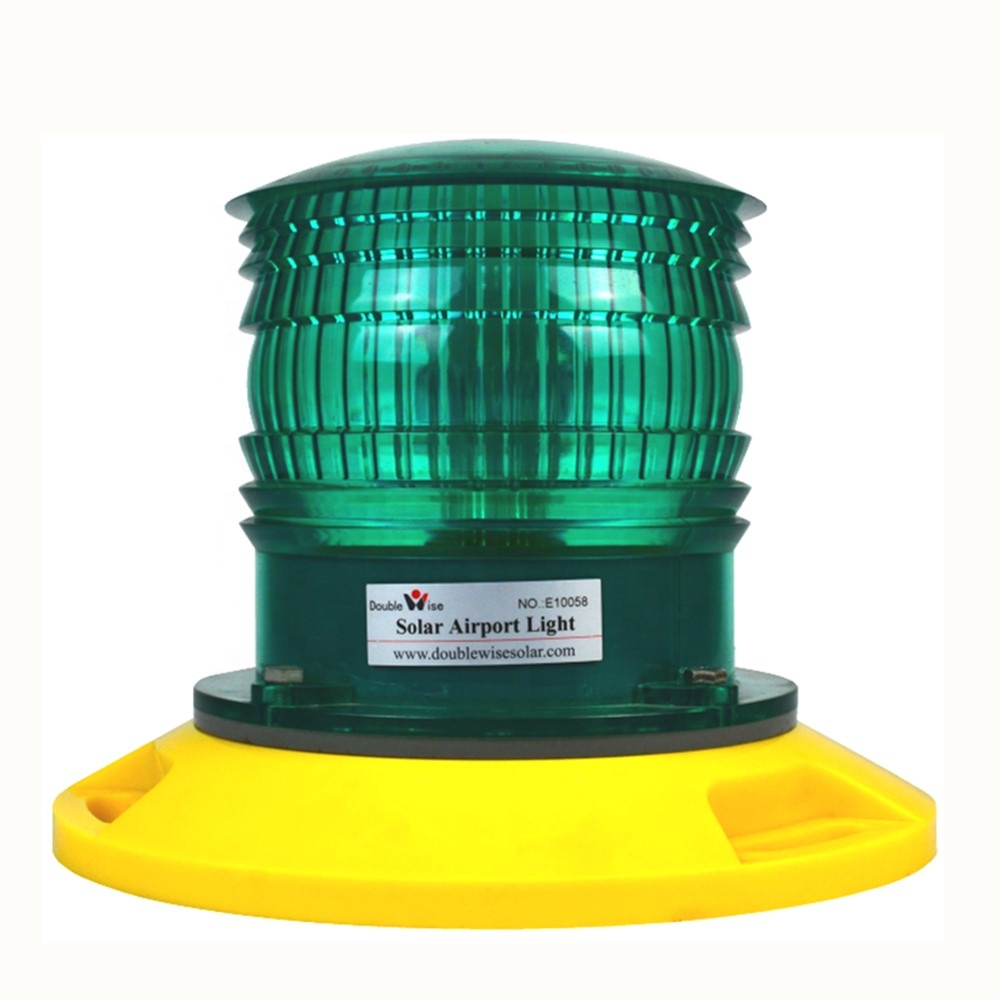

DWSAN301G is a wireless solar Helipad perimeter light that complies with ICAO Annex 14 Volume Ⅱ and FAA .It meets traditional helipad lighting in a low-cost, easy-to-install and low-maintenance way. Because of the characteristics of self-contained, durable and anti-UV, it can be suitably used for Helipad Lighting system without High-voltage and cabling. It has operated and tested maintenance-free for many years in some helipads including Brazil,Canada,Australia and China etc..
Product Description
Green Landing Helipad Perimeter Solar Led Heliport Light
Features and Benefits
The Wireless Remote Controller can provides on-demand operations from up to 1Km away.
Available in Green, Yellow or White colors.
3-step intensity adjustment.
High-efficiency mono-crystalline solar panel and long-lasting Ni-Mh battery.
Lens is made from durable,anti-UV Bayer® polycarbonate.
Manufactured to ISO9001:2015 QAS and certified CE,BV.
Product Parameters
Main Specifications | |||||||
Light Output | 360°, STEADY ON | ||||||
Intensity Adjustment | Adjustable Low/Medium/High | ||||||
Colors | Green, amber or white | ||||||
Minimum Autonomy | 100/60/30 Hours at Low/Medium/High Intensity | ||||||
Source & its lifespan | LEDS & up to 50,000 Hours | ||||||
Solar panel | Mono-crystalline;1.5Wp;Efficiency 20% | ||||||
Battery | Ni-Mh, replaceable;5Ah/4.8V | ||||||
Lens Material | Polycarbonate | ||||||
Patent | Chinese patent: 200830018497.5 | ||||||
Quality Assurance | ISO9001:2015 | ||||||
Typical Applications
Product Selection
Our Company
Certifications
FAQ
1.Is there the remote controller?
Yes,these lights can be controlled to turn on/off and adjust the intensity by a wireless controller.
2. Please see the FlangeBase as follows:
Packing & Delivery
Packing
The package of DWSAN301G is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
