Product Description

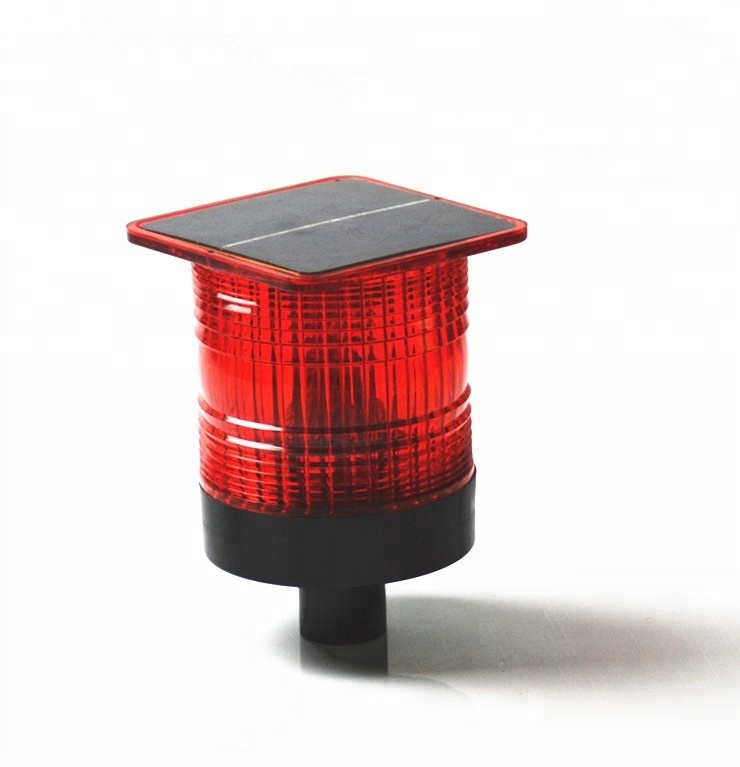

DoubleWiise Barricade Solar Led Rotating warning Ligh
Features and Benefits
Red and blue alternate revolving Flashing and its visibility up to 4KM.
Available in blue, red, amber, white and green.
Solar panel 1.1Wp, replaceable Ni-HM battery 2.5Ah.
Turns on at dusk and off at dawn automatically.
Completely self-contained and waterproof IP65.
Charge under nearly all weather conditions and up to 140 hrs of operating capacity from a full charge.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS.
Product Parameters
Specifications | |
Light Output | 360° Red/Blue Rotary Flashing |
Average Intensity | 7cd |
Visibility | 4Km |
LEDs and its Lifespan | 10 Pcs and its lifespan up to 50000 Hrs |
Minimum Autonomy | 140 Hours |
ON/OFF Level | 60/100 Lux |
Latitude Range | 55°S to 55°N |
Solar panel | mono-crystalline;Maximum Power 1.1Wp;Efficiency 16% |
Battery | Ni-MH2.5Ah/2.4V |
Lens Material and Color | Polycarbonate and White |
Weight / Waterproof | 0.35Kg / IP65 |
Temperature Range | -40℃ to +80℃ |
Quality Assurance | ISO9001:2008 |
Type Applications
Marine Warning
• Buoy Marking
• Aqua Cage
• Beacon Lighting
• Ocean Engineering
Traffic Warning

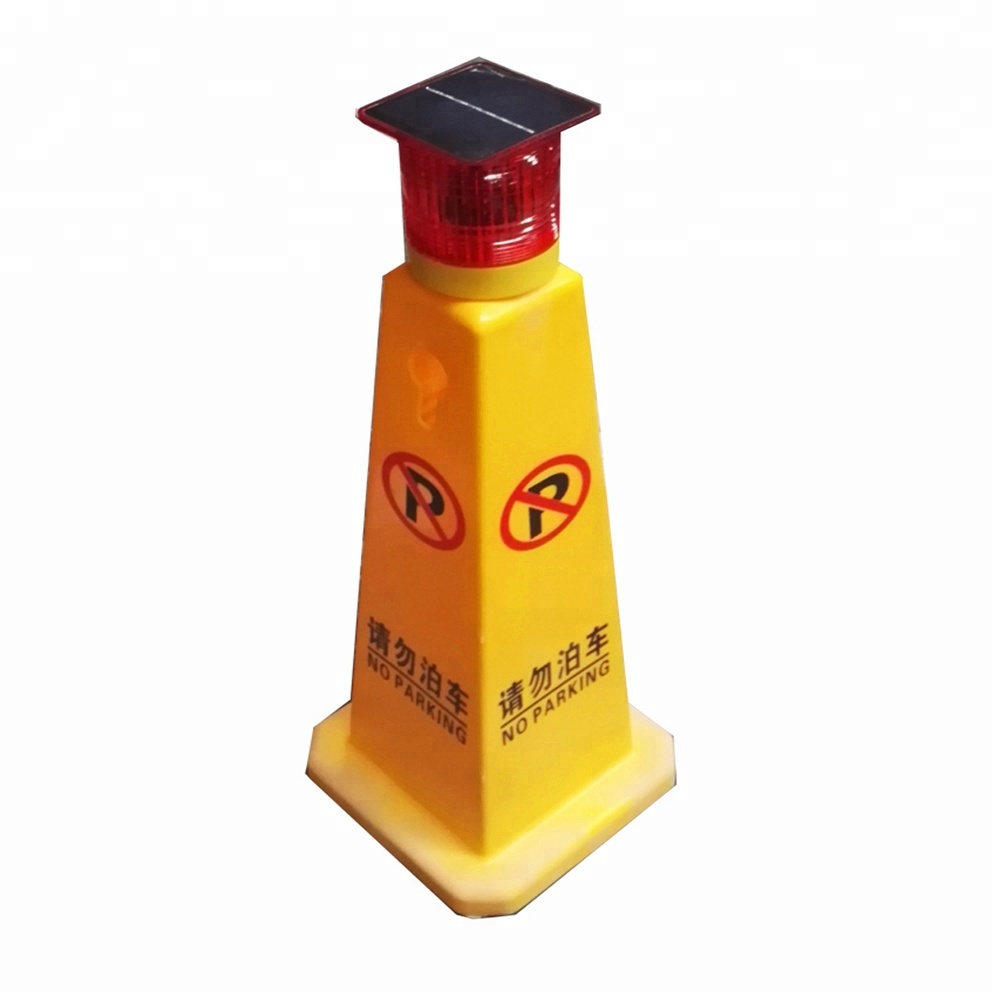

• Barricade
• Dangerous Sign
• Temporary Warning
• Slow Alert
Safety Warning
• Mining
• Hazardous Zone
• Equipment Marker
• Pad Transformer
Aviation Obstruction Lighting
• Tower
• High-building
•Crane
DWS203V at Night
DWS203V in a High-buiding
Crane warning
Dimension Drawings
Related Products
Our Company
Certifications
FAQ
1. Under what circumstances DWS203 with a touch switch should be chosen?
In order to ensure reliable waterproof IP67,we strongly recommend you to choose DWS203 with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc..
Except for the marine case,DWS203 only need a ordinary switch and its waterproof is IP65.
In order to ensure reliable waterproof IP67,we strongly recommend you to choose DWS203 with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc..
Except for the marine case,DWS203 only need a ordinary switch and its waterproof is IP65.
Packing & Delivery
Packing
The package of DWS203V is a 630*300*210mm carton that can be loaded with 12 lights.The weight of one light is 0.35Kg after packing,so the gross weight of 12 lights is 5Kg .
