- Place of Origin:
- Shaanxi, China
- Brand Name:
- DoubleWise
- Model Number:
- DWS305/4NM
- Power Supply:
- Solar
- Light Color::
- Red, Green, White,Amber
- Application::
- Shore beaconHarbor Dredger Tug Boat Bow Yacht
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 17X17X17 cm
- Single gross weight:
- 1.5 kg
- Package Type:
- Intelligent Longlife Dock/Beacon Navigation Signal Lantern Packing detaills are, Each light carton: 170*170*170mm N.W.:1.1kg; G.W.:1.5kg 6pcs light in One carton, total size:540*360*200mm , total G.W.:9.5kg
- Lead Time:
Quantity(Piece) 1 - 6 >6 Est. Time(days) 15 To be negotiated

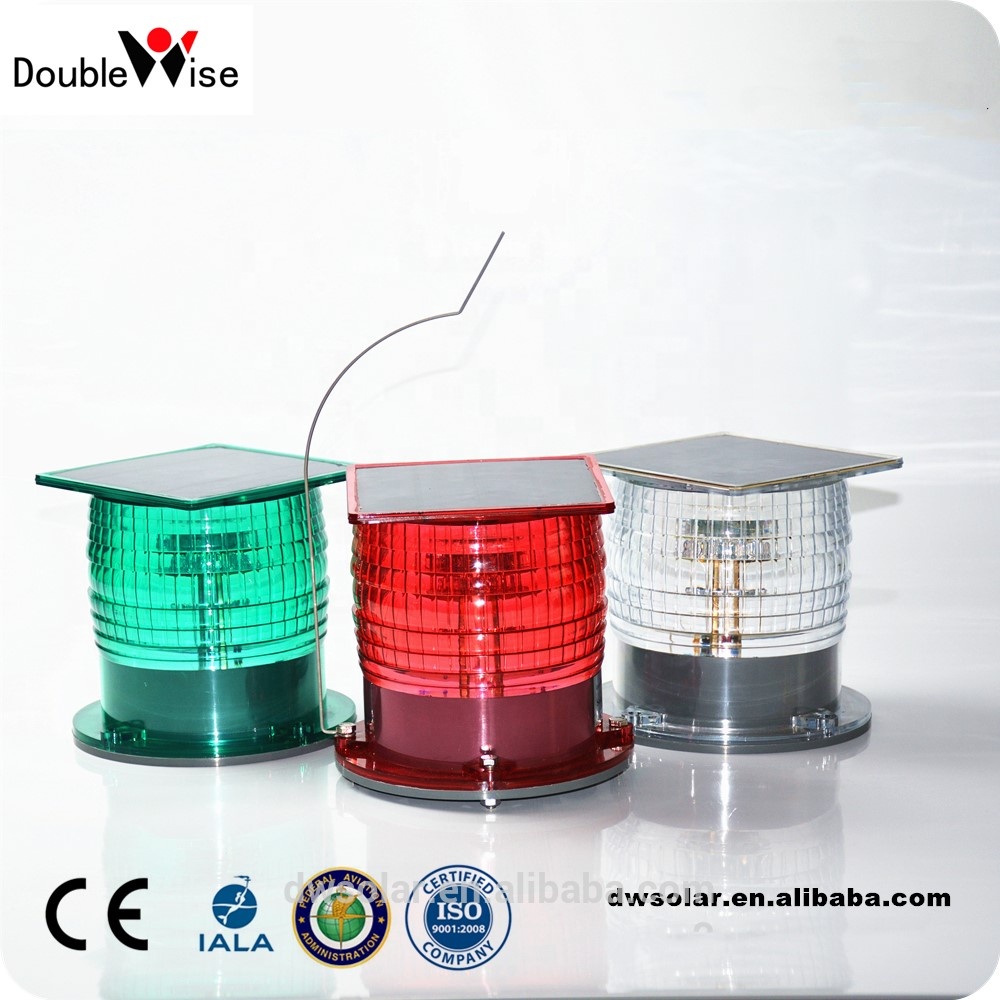

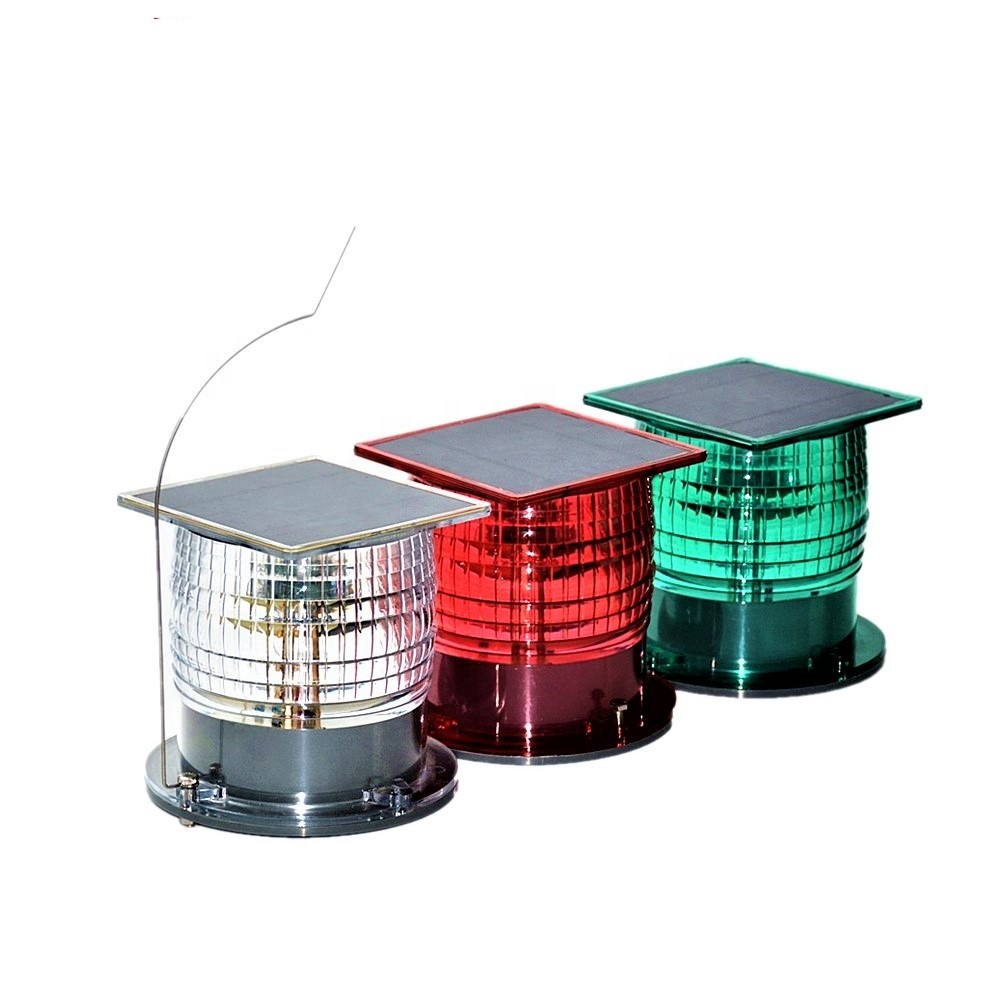

Doublewise Intelligent Dock Navigation Signal Lantern
SPECIFICATIONS | ||||||
Peak Intensity (360°average) | White | 30cd | ||||
Red | 28cd | |||||
Green | 26cd | |||||
Visible Range | 4NM | |||||
Horizontal Output | 112.5° 135° 225° 360° | |||||
Vertical Output | 7.5° | |||||
Minimum Autonomy | 150Hrs | |||||
Available Color | Red White Green Amber Blue | |||||
On/Off Level | 60/100 Lux | |||||
Lifespan of LEDs | up to 100,000hrs | |||||
Solar Module | mono-crystalline, 2.7Watts, 16% | |||||
Battery | Ni-MH, 4.8V/5Ah, replaceable | |||||
Lens Material | UV resistance PC | |||||
Temperature Range | -40℃ to +80℃ | |||||
Waterproof | IP67 | |||||
Weight | 1.1kg | |||||
Size | 166*166*160mm |
By now, there are 120,000 sets of Double Wise Intelligent Longlife Dock/Beacon Navigation Signal Lantern or lighting lamps operating in more than 80 countries all over the world. Eight Chinese patents and over 30 kinds of solar products are a reward for our efforts.
1.What kind of vessels are suitable for use in solar navigation light?
Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..
2. Can this lantern easily be turned off when it isn't used for a long period?
Yes,you can easily turn off this lantern by unplugging the battery connecting wire inside it.
We also suggest that you turn off it when it isn't used for a long time.So it is only charged during the day and discharged at night.
3.Is there an attachment that is suitable for a variety of installation methods?
Yes, there is the FlangeBase as follows. For better heat insulation and waterproof, we recommend to use it.
Packaging | ||
Size | 540*360*200mm | |
Weight | Total G.W.:9.5kg | |
Packaging Details | Each light carton: 170*170*170mm N.W.:1.1kg; G.W.:1.5kg 540*360*200mm carton size contents 6 lights , total G.W.:9.5kg |
