Overview
Quick Details
- Place of Origin:
- Shaanxi, China
- Light Source:
- LED
- Input Voltage(V):
- 7.2
- Lamp Luminous Flux(lm):
- 120
- CRI (Ra>):
- 85
- Brand Name:
- DoubleWise
- Model Number:
- DWS305/6NM
- Application:
- Navigation light
- Light Color::
- Red, Green, White,Amber
- Application::
- Shore beaconHarbor Dredger Tug Boat Bow Yacht
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 36X36X28 cm
- Single gross weight:
- 4.0 kg
- Package Type:
- Each light carton: 360*360*280mm ,4kg
- Lead Time:
Quantity(Set) 1 - 8 >8 Est. Time(days) 15 To be negotiated
Video Description
Product Description

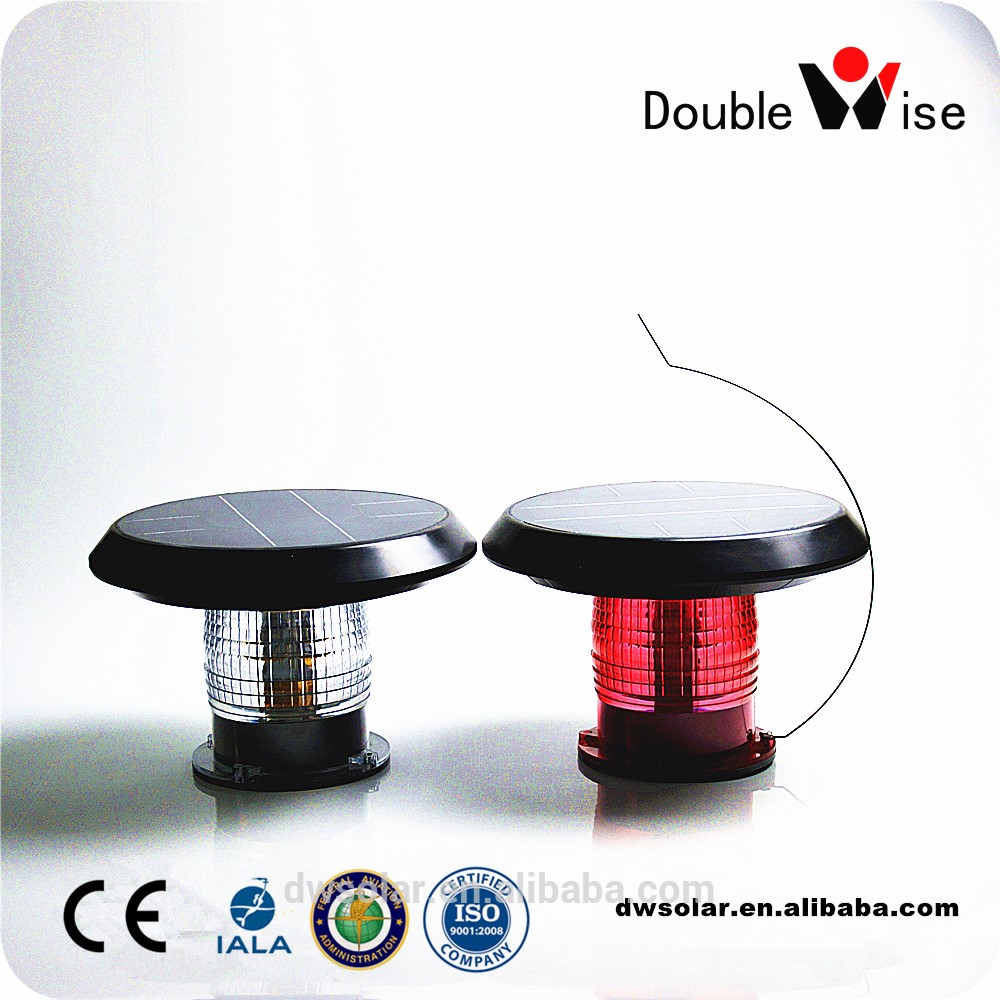

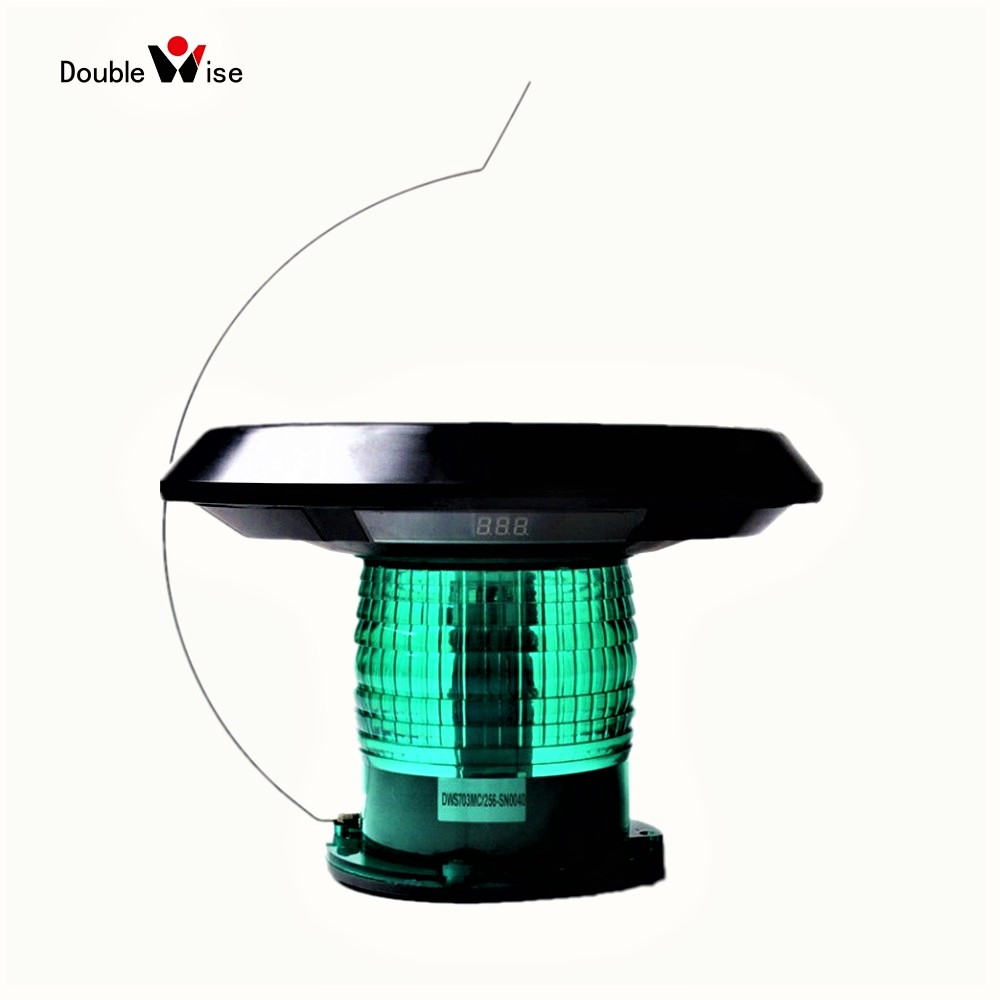

High Power Solar LED Offshore Gas&Oil Platform Dock Navigation Signal Light
amp
DWS 305/6NM High Power Solar LED Offshore Gas&Oil Platform Dock Navigation Signal Light is an industrial strength solar powered light designed for the harshest environments. This model is available in red, green, white and amber colors for dock lighting and safety applications. Available in a Constant Mode and Flashing Mode. Great for dock lighting, marinas, boat houses, safety lighting, channel markers, buoys , obstruction lighting, mooring lights.Super bright LEDs and powerful solar panel provide all night illumination. Mounts virtually anywhere in minutes providing a fast cost effective solution. Easy hassle free mounting, no wires, no mess, no electrical cost.
Product Parameters
SPECIFICATIONS | ||||||
Peak Intensity (360°average) | White | 120cd | ||||
Red | 105cd | |||||
Green | 112cd | |||||
Visible Range | 6NM | |||||
Horizontal Output | 112.5° 135° 225° 360° | |||||
Vertical Output | 7.5° | |||||
Minimum Autonomy | 200Hrs | |||||
Available Color | Red White Green Amber Blue | |||||
On/Off Level | 60/100 Lux | |||||
Lifespan of LEDs | up to 100,000hrs | |||||
Solar Module | mono-crystalline, 7.2Watts, 16% | |||||
Battery | Ni-MH, 7.2V/16Ah, replaceable | |||||
Lens Material | UV resistance PC | |||||
Temperature Range | -40℃ to +80℃ | |||||
Waterproof | IP67 | |||||
Weight | 1.8kg | |||||
Size | 320*165*230mm |
Typical Application
Product Selection
Company Information
Certifications
FAQ
1.What kind of vessels are suitable for use in solar navigation light?
Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..
2. Can this lantern easily be turned off when it isn't used for a long period?
Yes,you can easily turn off this lantern by unplugging the battery connecting wire inside it.
We also suggest that you turn off it when it isn't used for a long time.So it is only charged during the day and discharged at night.
3.Is there an attachment that is suitable for a variety of installation methods?
Yes, there is the FlangeBase as follows. For better heat insulation and waterproof, we recommend to use it.
Packing & Delivery
Packaging | ||
Size | 320*165*230mm | |
Weight | N.W.:1.8kg | |
Packaging Details | Each light carton: 340*340*240mm N.W.:1.8kg; G.W.:2.4kg |
