Masthead Light--225° White Output
Deck Light--Down White
Barge Light--112.5° ;135°
Morse Signal Light--Morse Code
The four functions of light can be combined and selected by a touch switch or an IRC.
Product Description

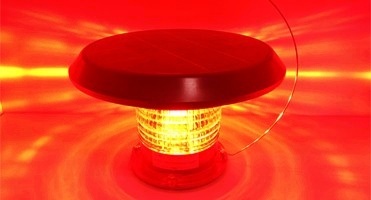

Anti-UV PC Solar Marine LED Navigation Shore Beacon Warning Lights
DWS305/6NM is a marine solar masthead Deck light designed to comply with the COLREGS(1972) and UL 1104 standards.The light may become one of the following four lamps.
Masthead Light--225° White Output
Masthead Light--225° White Output
Features and benefits
Steady-on and its visibility: 6NM
Solar panel 7.2Wp, replaceable Lithium battery 16Ah/7.2V.
Light Output : 112.5°Port/Starboard;135°Stern.225°Masthead;360 °Anchor/Morse.
Turns on at dusk and off at dawn automatically or by switch.
Charge under nearly all weather conditions and up to 200 hrs of operating capacity from a full charge.
Lens is poly-carbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS.
Steady-on and its visibility: 6NM
Solar panel 7.2Wp, replaceable Lithium battery 16Ah/7.2V.
Light Output : 112.5°Port/Starboard;135°Stern.
225°Masthead;360 °Anchor/Morse.
Turns on at dusk and off at dawn automatically or by switch.
Charge under nearly all weather conditions and up to 200 hrs of operating capacity from a full charge.
Lens is poly-carbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS.
Product Parameters
SPECIFICATIONS | ||||||
Peak Intensity (360°average) | White | 120cd | ||||
Red | 105cd | |||||
Green | 112cd | |||||
Visible Range | 6NM | |||||
Horizontal Output | 112.5° 135° 225° 360° | |||||
Vertical Output | 7.5° | |||||
Minimum Autonomy | 200Hrs | |||||
Available Color | Red White Green Amber Blue | |||||
On/Off Level | 60/100 Lux | |||||
Lifespan of LEDs | up to 100,000hrs | |||||
Solar Module | mono-crystalline, 7.2Watts, 16% | |||||
Battery | Ni-MH, 7.2V/16Ah, replaceable | |||||
Lens Material | UV resistance PC | |||||
Temperature Range | -40℃ to +80℃ | |||||
Waterproof | IP67 | |||||
Weight | 1.8kg | |||||
Size | 320*165*230mm | |||||
Typical Application
Product Selection
Company Information
Certifications
FAQ
1.What kind of vessels are suitable for use in solar navigation light?
Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..
2. Can this lantern easily be turned off when it isn't used for a long period?
Yes,you can easily turn off this lantern by a touch switch in the side of it.We also suggest that you turn off it when it isn't used for a long time.So it is only charged during the day and discharged at night.
3.Is there an attachment that is suitable for a variety of installation methods?
Yes, there is the FlangeBase as follows. For better heat insulation and waterproof, we recommend to use it.
Packing & Delivery
Packaging | ||
Size | 320*165*230mm | |
Weight | N.W.:1.8kg | |
Packaging Details | Each light carton: 340*340*240mm N.W.:1.8kg; G.W.:2.4kg | |
