This DWS302TS has become one of the most classical and popular solar-powered aid to navigation Light around the world because of its self-contained, reliability and durability. Its flashing pattern complies with IALA Maritime Buoyage System and can be customized up to 16 IALA flashing codes. It's completely sealed in order to make sure its waterproof IP67. It installs in minutes and requires no maintenance or servicing for up to five years.
Doublewise High Quality Solar LED Buoy Marine Warning Lantern
Product Description
Features and Benefits
Flashing and its visibility up to 3NM.
Available in red, amber, white and green.
Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.
Turns on at dusk and off at dawn automatically.
Completely self-contained and waterproof IP67.
Charge under nearly all weather conditions and up to 140 hours of operating capacity from a full charge.
Individual dome can protest the solar panel and raise its efficiency.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS and certified CE.
Product Parameters
Main Specification | |
Light Output | 360°; Flashing. |
Average Intensity | White 41cd; Red 32cd; Amber 27cd; Green 39cd |
Visibility | 2~3NM at T=0.74 |
LEDsand its Lifespan | 12 Pcs & Up to 50,000 Hours |
Minimum Autonomy | 140 Hours |
Waterproof | IP67 Completely Sealed |
Latitude Range | 55°S to 55°N |
Solar panel | Mono-crystalline; 1.5Wp; Efficiency 20% |
Lens Material and Colors | Polycarbonate and White, Red, Green, Amber |

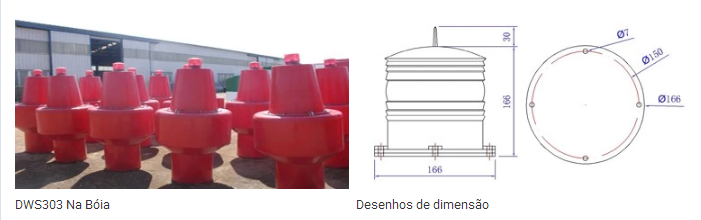

Weight / Dimension | 0.9Kg / 166mm*166mm*166mm |
Temperature Range | -40℃ to +80℃ |
Quality Assurance | ISO9001:2015 and CE |
Typical Application
Related Products
Solar Buoy Light
3NM IALA DWS303
4~5NM Solar Marine Light
16 IALA Rhythms DWS503
7NM Solar Marine Light
256 IALA Rhythms DWS703
Company Profile
DOUBLEWISE engages in solar self-contained lights since 2001 and has become an energetic team in solar lighting,warning and alarm system:10 Chinese patents,18 years' experience and 9600 square meters facility.
Our Mission: To Charge ourselves in thought and technology,to light others!
Our Vision: To be the most reliable global provider of creative solar and LED products,services and solutions.
• Drive quality into all we do;
• Easy operation,Compact,Endless realiability and Durability; • Details matter.
Certifications
FAQ
1.What is the difference of IP67 and IP68?
For LED Navigation Solar Marine Lights,IP67 is the same as IP68.There are three reasons as follows:
• IP means Ingress Protection.The international safety standard for IP is IEC60529.IP codes have the format IP××,where the ×× represent numerals from the coding scheme(see Table 1 and Table 2);
For LED Navigation Solar Marine Lights,IP67 is the same as IP68.There are three reasons as follows:
• IP means Ingress Protection.The international safety standard for IP is IEC60529.IP codes have the format IP××,where the ×× represent numerals from the coding scheme(see Table 1 and Table 2);
Numeral | Characterization of Ingress Limit |
0 or X | Not evaluated |
1 | ≥50.0 mm diameter object |
2 | ≥12.5 mm diameter object |
3 | ≥2.5 mm diameter object |
4 | ≥1.0 mm diameter object |
5 | Dust-protected |
6 | Dust-tight |
Table I.The first numeral in an IP code indicates the degree of protection from solid foreign objects.
Numeral | Characterization of Ingress Limit |
0 or X | Not evaluated |
1 | Dripping water:vertical |
2 | Dripping water:15°tilt |
3 | Spraying water |
4 | Splashing water |
5 | Jetting water |
6 | Powerful jetting water |
7 | Temporary immersion |
8 | Continuous immersion |
Table II.The second numeral in an IP code indicates the degree of protection from moisture.
• In all practical applications,it is impossible for a solar light to immerse under water for long time because it couldn't be charged in such case.So IP68 for solar lights is nonsense.
• No solar light can pass through the IP68 testing for sure,because it can't be charged for a long time under the water.The IP68 expression in a solar light only be speculation gimmicks and attempts to mislead users.
2. Under what circumstances DWS302 with a touch switchshould be chosen?
In order to ensure reliable waterproof,we strongly recommend you to choose DWS302 with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc..
• In all practical applications,it is impossible for a solar light to immerse under water for long time because it couldn't be charged in such case.So IP68 for solar lights is nonsense.
• No solar light can pass through the IP68 testing for sure,because it can't be charged for a long time under the water.The IP68 expression in a solar light only be speculation gimmicks and attempts to mislead users.
2. Under what circumstances DWS302 with a touch switchshould be chosen?
In order to ensure reliable waterproof,we strongly recommend you to choose DWS302 with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc..
3.Is there other installing adapter for DWS302TS?
Yes, there is an adapter as follows. The FlangeBase is designed to install adapters and can improve its moisture and heat insulation performance.
Packing & Delivery
Packing
The package of DWS302/TS Doublewise High Quality Solar LED Buoy Marine Warning Lantern is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
