Overview
Quick Details
- Place of Origin:
- Shaanxi, China
- Light Source:
- LED
- Input Voltage(V):
- 7.4
- Lamp Luminous Flux(lm):
- 120
- CRI (Ra>):
- 86
- Working Temperature(℃):
- -40-80
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP65
- Warranty(Year):
- 2
- Brand Name:
- DoubleWise
- Model Number:
- DWS702
- Application:
- Obstruction light
- Power Supply:
- Solar
- Usage:
- high building, chimney, aairport, communication tower, oil platform
- Lens material:
- polycarbonate supplied by Bayer from Germany
- More functions:
- GPS monitoring and position
- Certificate:
- ISO9001/ CE/ BV
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 35X35X25 cm
- Single gross weight:
- 6.0 kg
- Package Type:
- Doublewise ICAO FAA Medium-intensity Solar Tower Aviation Obstruction Light with Low Price details are: size a 350*350*250 carton that can be loaded with one light.The weight of one lightis 6Kg after packing .
- Lead Time:
Quantity(Set) 1 - 2 >2 Est. Time(days) 15 To be negotiated
Video Description
Product Description
Doublewise ICAO FAA Medium-intensity Solar Tower Aviation Obstruction Light with Low Price

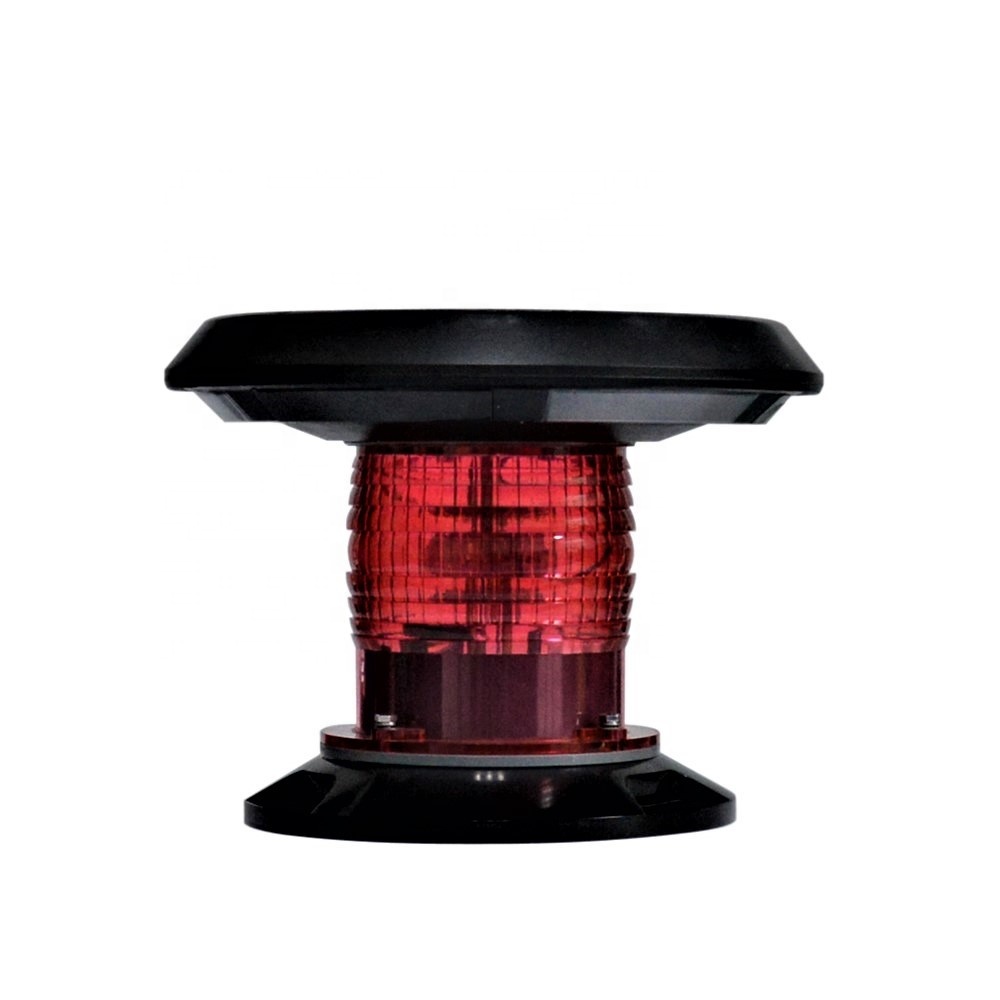

The DWS702S is a Medium-intensity Building Tower Aviation Obstruction solar powered LED Aircraft Warning Light which meets FAA/ICAO standards. The self-contained design makes it concision, reliability, durability and easy-operation. Because its shape looks like a mushroom, it also is called as “Solar Mushroom Light”. It can complete thesynchronization of many lamps by GPS and is widely used in Aviation Warning of Iron Towers,Chimneys,Buildings.
Features and Benefits
ICAO/FAA flashing patterns and medium-intensity |

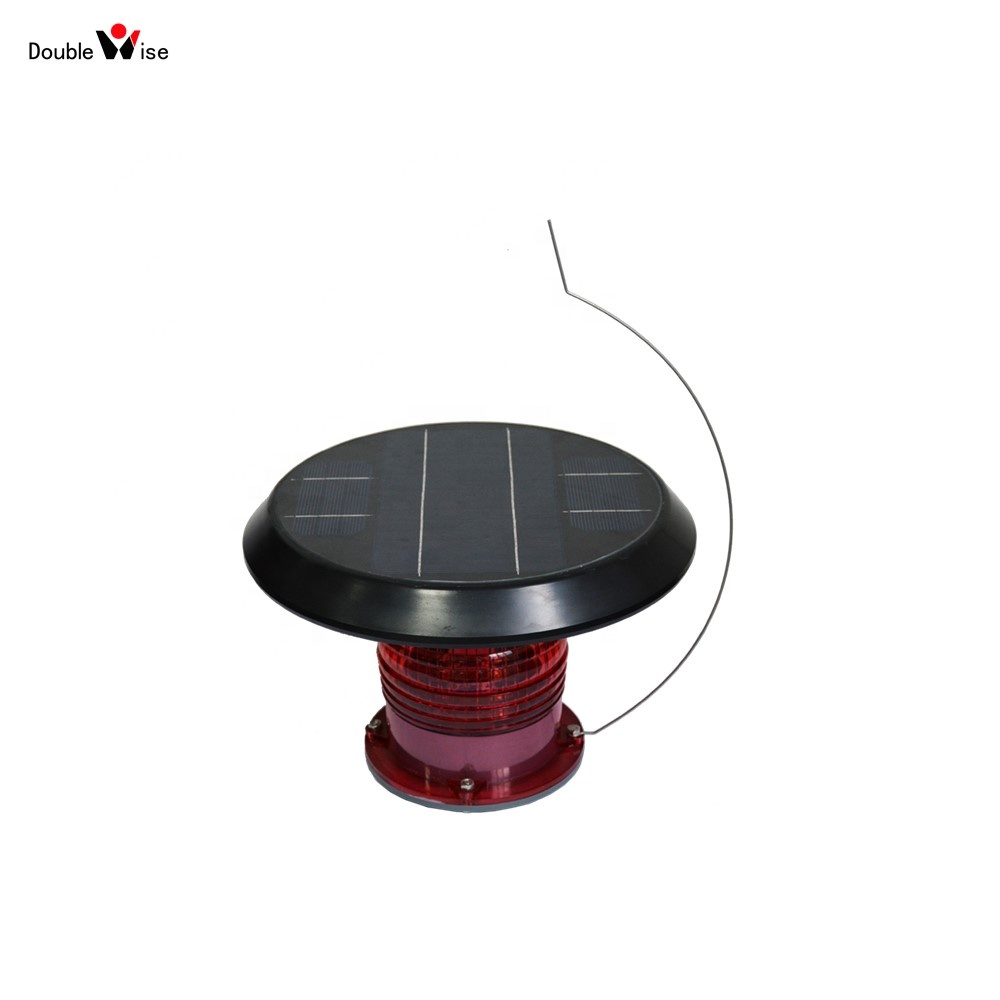

Solar panel 7.2Wp, replaceable Lithium battery 16Ah/7.2V. |
Light Output : 360 ° or Any Sector. |
Turns on at dusk and off at dawn automatically or by switch. |
Completely self-contained and waterproof IP65. |
Charge under nearly all weather conditions and up to 200 hrs of operating capacity from a full charge. |
Lens is poly-carbonate with anti-UV which is produced by Bayer. |
Manufactured to ISO9001:2015 QAS. |
Product Parameters
Typical Applications
- Tower
- Crane
- High-Building
- Water or Cooling Tower
- Chimney
- Wind Power Generator
Related Products
Company Profile
Certifications
FAQ
1. How to complete the synchronization of all the lights in an area?
DWS702 accomplishes the synchronization of many lights through the GPS.Because this way is wireless,the number of synchronized lights is unlimited and the cost is more economical than these needed a wire-controller
2.Is there an attachment that is suitable for a variety of installation methods?
Yes,there is the FlangeBase as follows. In order to better heat insulation and waterproof,we recommend to use it.
Packing & Delivery
Packaging
The package of DWS702 aircraft warning lights is 350*350*250mm carton that can be loaded with one light.The weight of one light is 6Kg after packing .
