Multi-function LED Marine Navigation Signal Solar Boat All-round Anchor Lights
Click on the image to view the original image
Product: views:3Multi-function LED Marine Navigation Signal Solar Boat All-round Anchor Lights
Branch: Doublewise
Size: 17X17X17 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
Doublewise
Part:
led boat light
Color:
White,red,green,yellow
Application:
Fishing Boat,Barge,Non-powered vessel ,Tug,Tow

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X17X17 cm
Single gross weight:
1.5 kg
Package Type:
One Carton: 6 lights, 540*360*200,9Kg.
Lead Time:
Quantity(Set)1 - 6>6
Est. Time(days)15To be negotiated
Video Description
Product Description

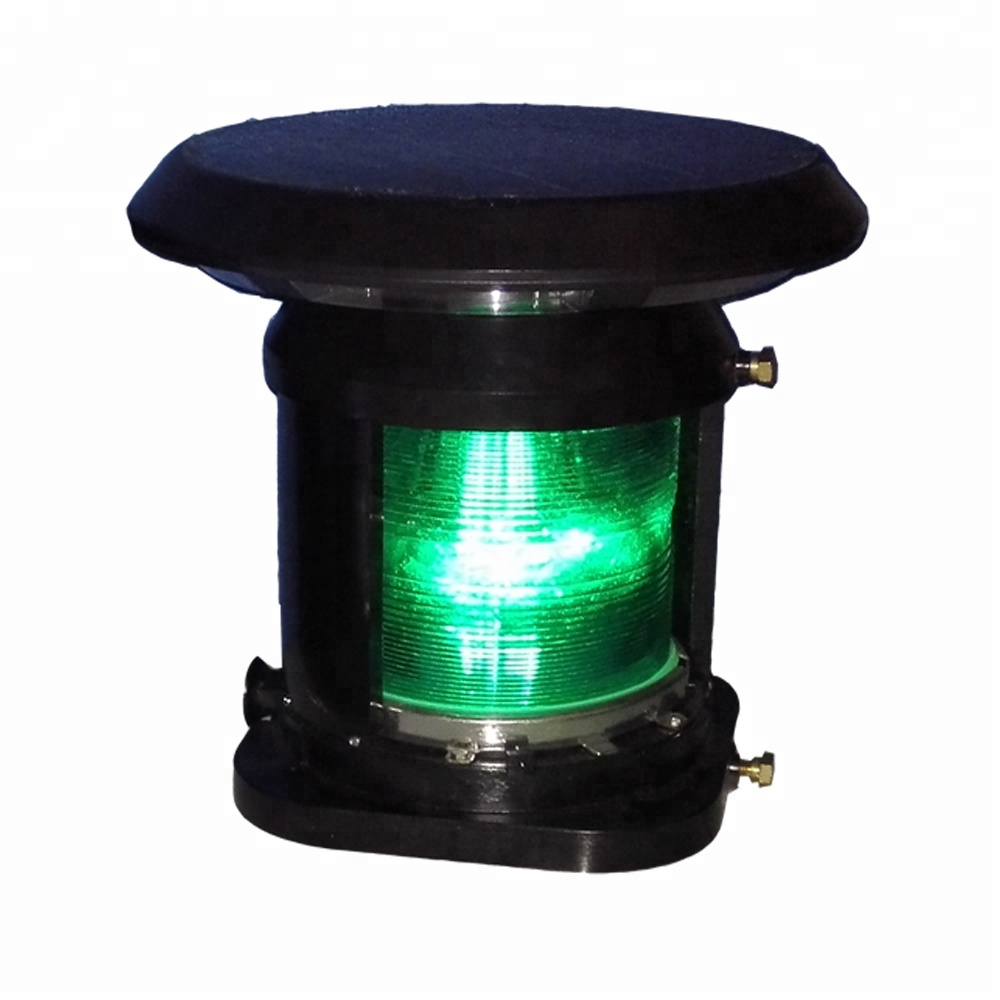

 Multi-function LED Marine Navigation Signal Solar Boat All-round Anchor Light




DWS305MF is a Ship Equipment Solar LED Anchor Navigation Signal All-round Light fully complied with COLREGS(1972) for these vessels such as Fishing, Anchored, Aground or not under-command etc..Its visibility is up to 3NM and its autonomy is more than 120 hours in full charge.It has the characteristics of self-contained solar, durable ,anti-UV and easy-installation.

The light  turns on at dusk and off at dawn automatically after turned on by the Remote Controller.When the ship returns to port, the light can be turned off with a remote control.

Features and Benefits


Steady-on and its visibility: 3NM


Solar panel 2.7Wp, replaceable Ni-HM battery 4.8Ah/4.8V.

Light Output : White,Red,Green or Yellow
360°  All-round.

Turns on at dusk and off at dawn automatically after turned on by the Remote Controller.

 Completely self-contained and waterproof IP65.

Charge under nearly all weather conditions and up to 150 hrs of operating capacity from a full charge.

Lens is polycarbonate with anti-UV which is produced by Bayer.

Manufactured to ISO9001:2015 QAS.

Product Parameters
Light Output
                                                                          Steady-On
Average Intensity
                                 White:26cd    /Red:24cd   /Green:25cd   /Yellow:20cd
Visibility
                                                                             3NM
Horizontal Output
                                                                           360°
Minimum Autonomy
                                                                       150 Hours
Latitude Range
                                                                  55°S to 55°N
Solar Panel
                             Mono-crystalline; Maximum Power 2.7Wp; Efficiency 16%
Battery
                                                    Ni-MH, replaceable 4.8AH/4.8V
Lens Material & Colors
                                                Polycarbonate  &  Red, White, Green,Yellow
Mounting Option
                                                         4 bolts or Magnetic base
Weight
                                                                         1.2Kg
Waterproof
                                                                         IP65
Quality Assurance
                                                                  ISO 9001:2015
Patents
                                Chinese patent: ZL201430444455.3 Other patents pending
Typical Applications

                             The 56M Crane Barge in Dalian


                               Dimension Drawings


                            The 60M Deck Barge in Japan

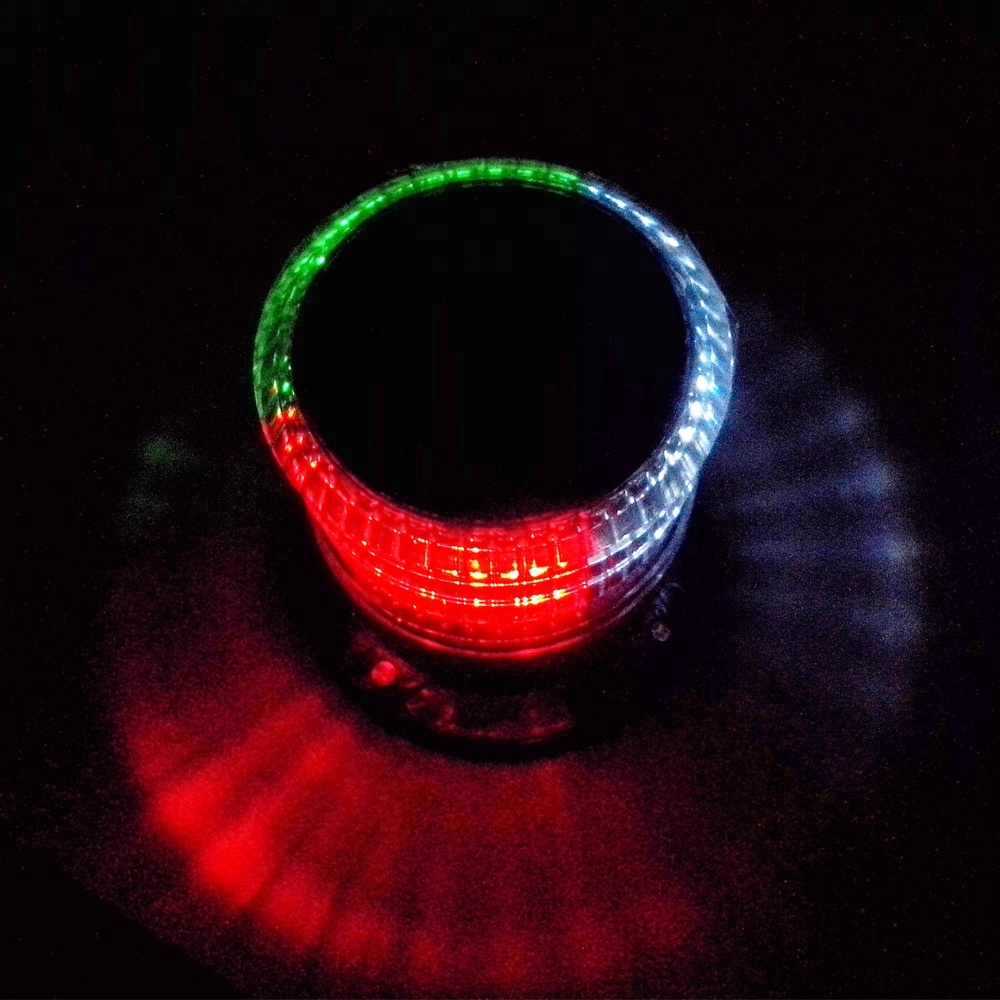

                              DWS305/3NML at Night


Product Selection
Our Company
Certifications
FAQ
1.What kind of vessels are suitable for use in solar navigation light?

Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..

2.Is there an attachment that is suitable for a variety of installation methods?

Yes,there is theadapter as follows. In order to better heat insulation and waterproof,we recommend to use it.
Packing & Delivery

Packing

The package of DWS305AR is a 540*360*200 carton that can be loaded with 6 lights.Each light has a small carton 170*170*170.The weight of one light   is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .


Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
