Home > Products > Solar Led Garden Light with a voice reminder and Alarm

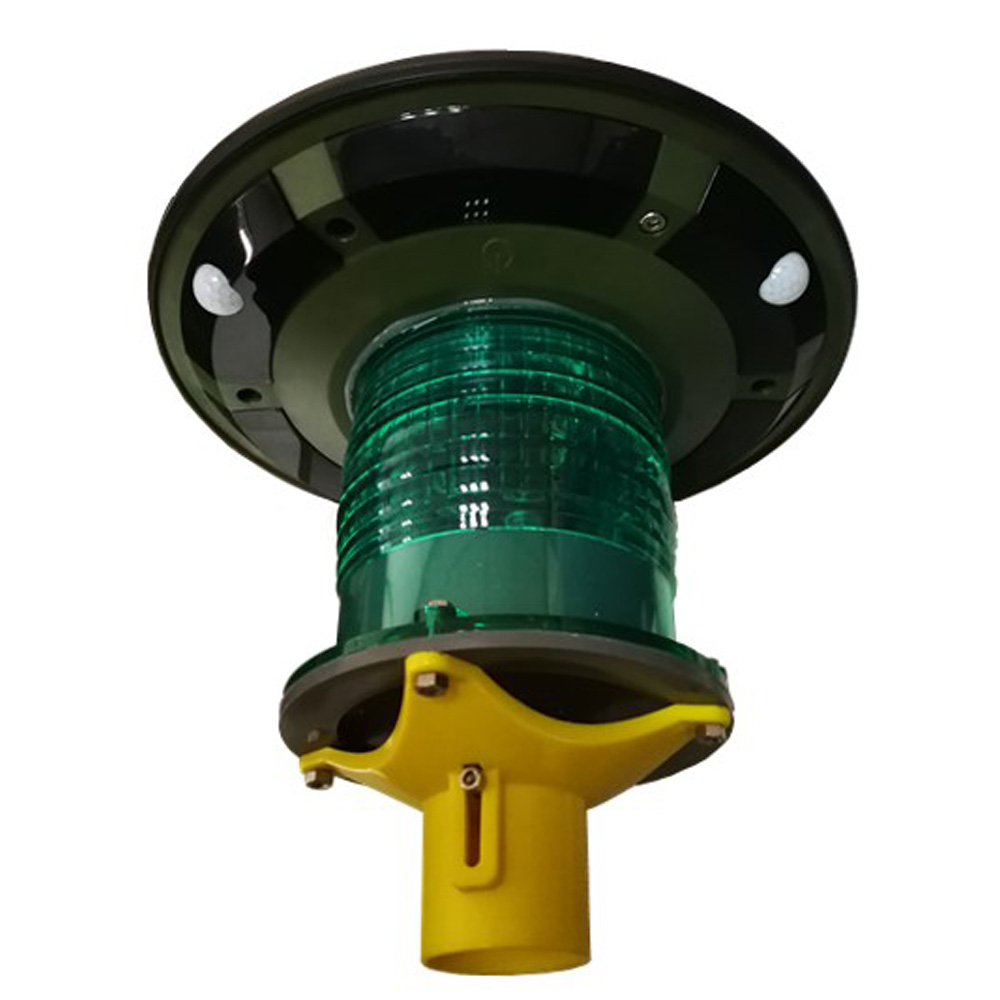

Solar Led Garden Light with a voice reminder and Alarm
Click on the image to view the original image
Product: views:2Solar Led Garden Light with a voice reminder and Alarm
Branch: Doublewise
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
DC 7.4V
Lamp Luminous Flux(lm):
400
CRI (Ra>):
85
Beam Angle(°):
180
Working Temperature(℃):
-40 - 70
Working Lifetime(Hour):
30000
Lamp Body Material:
PC
IP Rating:
IP65
Certification:
CE
Place of Origin:
Shaanxi, China
Brand Name:
Doublewise
Model Number:
DWS603
Application:
Solar alarm
Light Source:
LED
Color Temperature(CCT):
Pure White
LED Light Source:
SMD2835
Lamp Power(W):
3
Lamp Luminous Efficiency(lm/w):
120
Solar Panel:
7.2Wp
Battery:
LithiumBattery 16Ah/7.4V
Speaker Power:
3W
Detector:
Infrared detectors * 2
Detecting Angle:
more than 200 °
Audio Format:
MP3
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
One Carton: One light, 340*340*230,4Kg.
Port
SHENZHEN
Lead Time:
Quantity(Sets)1 - 4 >4
Est. Time(days)15To be negotiated
Video Description
Product Description

Solar LED Garden Light with a voice reminder and alarm
This Solar LED Garden Light with a voice reminder and Alarm DWS603 is an Intelligent lighting ,voice broadcast and alarm system that makes up of the solar photovoltaic system, two infrared detectors, a voice reminder and a Led light etc. If necessary, it can also join the GPRS wireless transmission module in order to monitor the state of the system or the access of people. The light can be easily installed where you want it such as Yard,  Wall,  Roadside or Fence etc.. When the infrared detectors sense people's activities, it can play the sounds such as“Private property,No entrance “,”Do not enter,Alarm operating” etc. during the day of Monday to Friday or the background music during the day of Saturday to Sundayand provide lighting for pedestrians at night.DWS603 installs in minutes and requires no maintenance up to five years.

Features and Benefits

Solar integrated design: All-In-One.


The infrared detecting angle is more than 200°and its detecting distance is about 10 meters.


USB 2.0 interface With 128M memory ( expandable).

solar panel 7.2Wp, Lithium battery 16Ah/7.4V.

The Play Mode, Voice selection and Volume can easily be adjusted by a remote controller.


Only Weight 1.8Kg and easy-installation.


If  necessary, the Wireless Alarming can be equipped with a GSM card.

Manufactured to ISO9001:2015 QAS.

Product Parameters
                                                                              Main Specifications
Work Voltage
                                                               DC 7.4V
Detectors
                                    2 * Pyroelectric infrared detectors
Detecting Angle & Distance
                                                       ≥200°and10m
Audio Format
                                                                MP3
Storage Capacity
                                           Built-in 128M Flash Card
Solar Panel & Lithium Battery
                                             7.2Wp & 7.4V/16AH
Light Source & Waterproof
                                                       LED & IP65
Speaker Power
                                                              3W
Control Strategy
                                        Adaptive Control Algorithm
Sound
                             Voice reminding or Background Music
Shell Material & Weight
                                       Polycarbonate (PC) & 3.5Kg
Patent & Quality Assurance
                      Chinese patents: 201320285.73.0& 9001:2015
Typical Applications



                                                                  Applications

                              Outdoor Lighting

                                         • Garden

                                         • Yard

                                         • Park







       Special Lighting

                  • Mountain
                  • Pond

                  • Fence

Related Products

Solar Voice Reminder

Solar Obstruction Light


Solar Tree

Our Company
Certifications
FAQ
1.How to install this UFO solar pathway light?

The installation of this UFO solar pathway  light is very easy.We recommend three installationmethods as follows.

Method 1: Process a straight pole on which a flange is connected, then fix the UFO lamp on the flange. The total height is about 2 meters to 3 meters.

Method 2: This installation method is suitable for dual-lamp applications. The lamp pole is a square tube of 60mm × 60mm, at the top with a symmetrical lamp arm which is connected a flange, then the UFO lamp is fixed on the flange. The total height is about 3~4 meters. Because the appearance looks like Libra, it also is called as a solar Libra lamp.


Method 3: In order to more quickly install and use the UFO lamp, a stainless adapter can be provided. When the installation condition is harsh, this simple installation method is a good choice.

As shown below, you may use the iron pipe,wood, bamboo or PVC pipe as a lamp pole and connect the pole and lamp with the adapter, then fix the pole in a place you want.


                                 Method 1 Drawing


             Mothod 1 Solar UFO Light in Water


                                   Method 2 Drawing


                  Method 2   4M Solar Libra Light


                                Method 3  Drawings

          Method 3  Hill Lighting with a wooden Pole

Packing & Delivery

Packing

The package of DWS603 is a 340*340*230mm carton that can be loaded with one light.The total weight of one carton is 4Kg after packing .


Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
