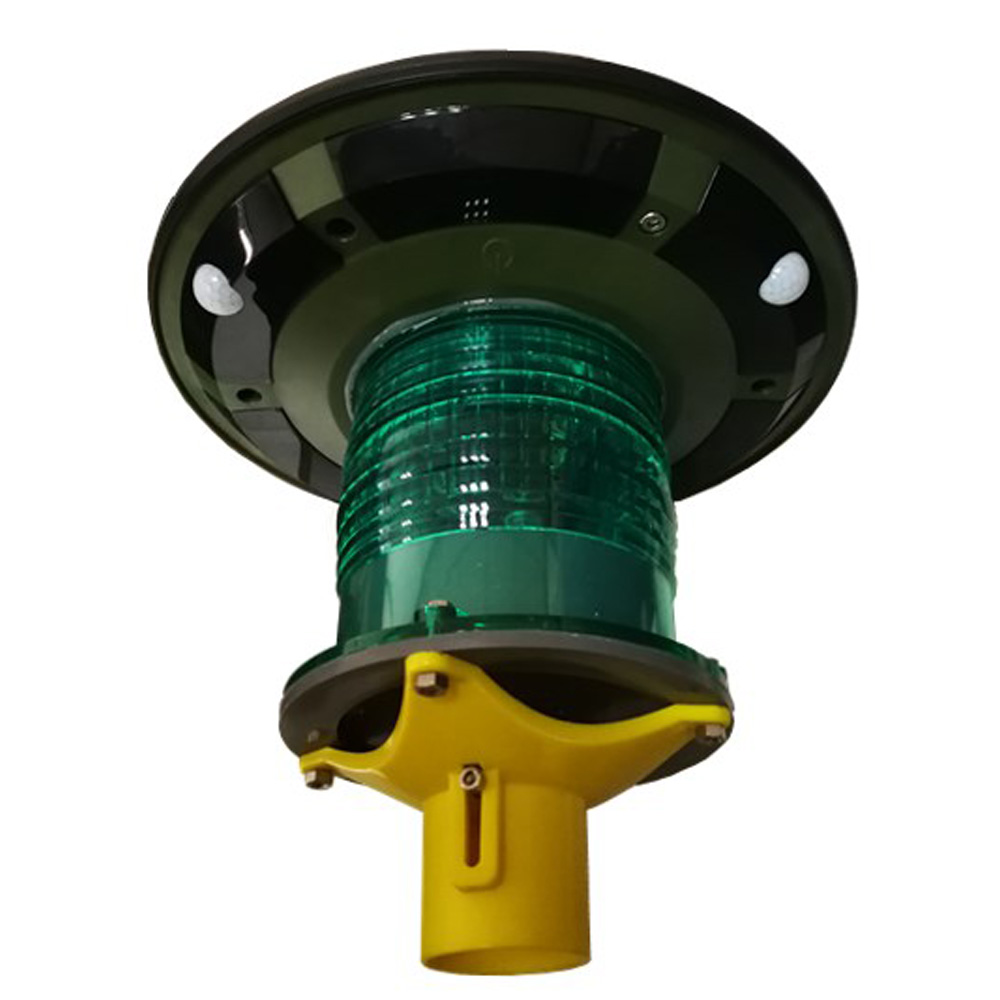

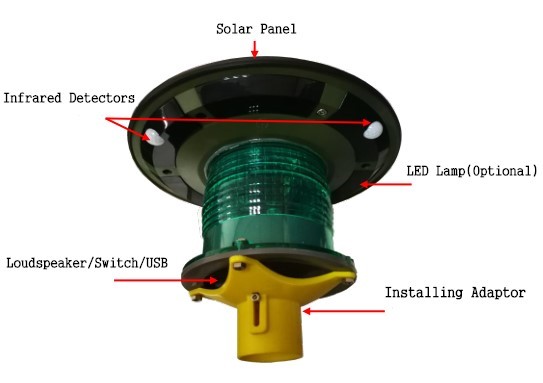

Solar integrated design: All-In-One.
The infrared detecting angle is more than 200°and its detecting distance is about 10 meters.
The Play Mode, Voice selection and Volume can easily be adjusted by a remote controller.
Only Weight 1.8Kg and easy-installation.
If necessary, the Wireless Alarming can be equipped with a GSM card.
Main Specifications | ||
Work Voltage | DC 7.4V | |
Detectors | 2 * Pyroelectric infrared detectors | |
Detecting Angle & Distance | ≥200°and10m | |
Audio Format | MP3 | |
Storage Capacity | Built-in 128M Flash Card | |
Solar Panel & Lithium Battery | 7.2Wp & 7.4V/16AH | |
Light Source & Waterproof | LED & IP65 | |
Speaker Power | 3W | |
Control Strategy | Adaptive Control Algorithm | |
Sound | Voice reminding or Background Music | |
Shell Material & Weight | Polycarbonate (PC) & 3.5Kg | |
Patent & Quality Assurance | Chinese patents: 201320285.73.0& 9001:2015 | |
Outdoor Lighting
• Yard
• Park
Special Lighting
• Mountain
• Pond
• Fence
Solar Voice Reminder
Solar Obstruction Light
Solar Tree
The installation of this UFO solar pathway light is very easy.We recommend three installationmethods as follows.
Method 1: Process a straight pole on which a flange is connected, then fix the UFO lamp on the flange. The total height is about 2 meters to 3 meters.
Method 2: This installation method is suitable for dual-lamp applications. The lamp pole is a square tube of 60mm × 60mm, at the top with a symmetrical lamp arm which is connected a flange, then the UFO lamp is fixed on the flange. The total height is about 3~4 meters. Because the appearance looks like Libra, it also is called as a solar Libra lamp.
Method 3: In order to more quickly install and use the UFO lamp, a stainless adapter can be provided. When the installation condition is harsh, this simple installation method is a good choice.
As shown below, you may use the iron pipe,wood, bamboo or PVC pipe as a lamp pole and connect the pole and lamp with the adapter, then fix the pole in a place you want.
Method 1 Drawing
Mothod 1 Solar UFO Light in Water
Method 2 Drawing
Method 2 4M Solar Libra Light
Method 3 Drawings
Method 3 Hill Lighting with a wooden Pole
Packing
The package of DWS603L is a 340*340*230 carton that can be loaded with one light.The total weight of one carton is 4Kg after packing .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
