Product Details

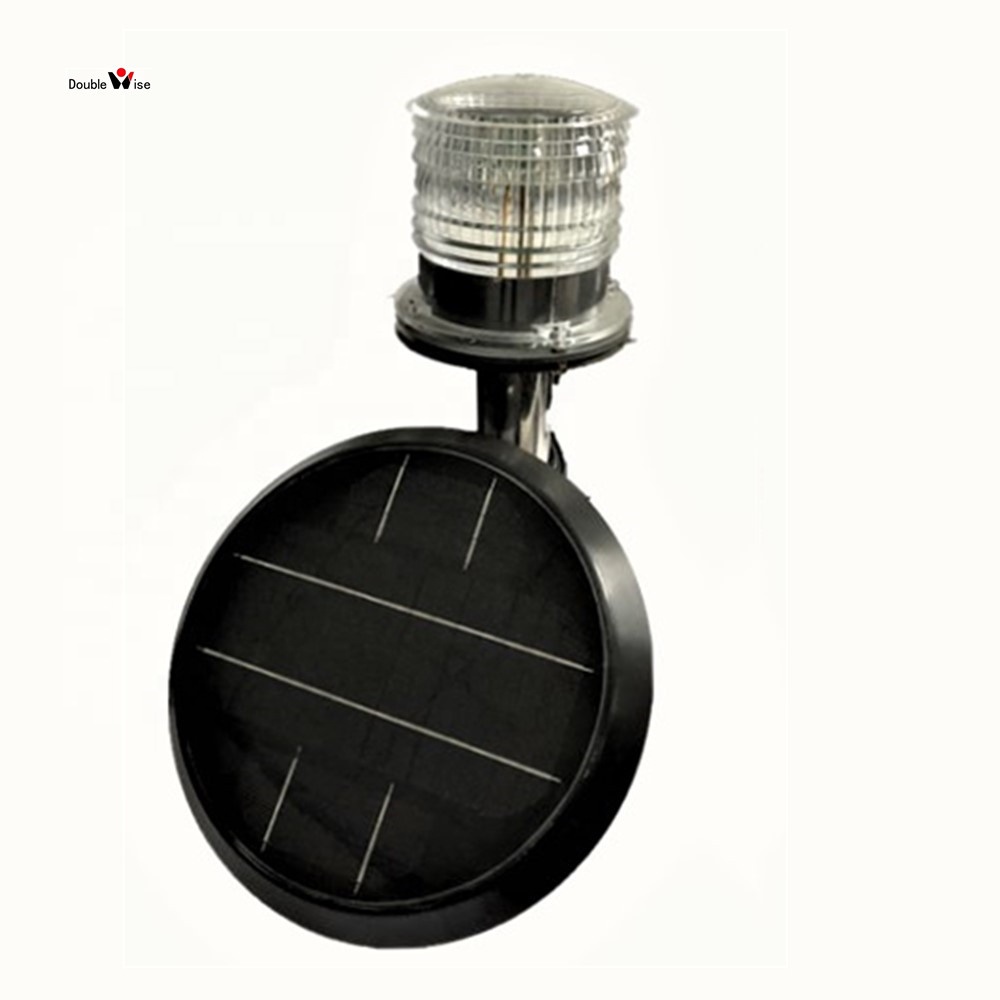

ICAO/FAA Airport Lighting Equipment Solar Power Airfield Runway threshold Light
DWSAN605 is an ICAO/FAA standard solar powered airfield runway threshold and edge light that complies with ICAO Annex 14 Volume Ⅰ and FAA. It meets traditional airport requirements in a low-cost, easy-to-install and low-maintenance way. Because of the characteristics of self-contained, durable and anti-UV, it can be widely used for Aeronautical Ground Lighting system without High-voltage and cabling. It can also support the remoting configuration, monitor and control. There are some solar airfield Ground Lighting system references in airports including USA, Brazil, Maldives, Canada and China etc..
Features & Benefits
Runway edge light Color in 180° white +180° yellow or 180° white +180° white;
Runway Threshold light color in 180° Red +180° Green.
High-efficiency mono-crystalline solar panel and long-lasting Lithium battery.
Individual dome can protect the solar panel and raise its efficiency.
Completely self-contained.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Wireless communicate can Remote configurate, monitor and control.
Manufactured to ISO9001:2015 QAS.
Product Paratmeters
Typical Applications
Product Selection
Our Company
Certifications
FAQ
1. What are benefits of the Solar Airport Lighting?
In general,the solar airport lighting is the better choice in the following cases:
•Airfields that are not needed to fly at night every day;
•Airstrips not easily connected the electrical cable or without electricity;
•Airport renovation or temporary airports.
There are many benefits of Solar Airport Lighting System as follows:
• No High Voltage | • No Isolation Transformers | • No Base Cans |
• No cabling | • No Cable Conduits | • No Grounding |
• No CCRS | • No Vault | • No Bulbs |
• No Glass Lens |
2. Why choose DOUBLEWISE Solar Airport Lights?
•Low Cost
•Low Maintenance
•Advanced Technology
•Complete Compliance
•Easy Installation and Operatio
•Flexible Movement and Deployment
3.Can the remote control be achieved in the Airport Tower for solar navigation lights?
Yes, these lights can be controlled to turn on/off and adjust the intensity by a wireless control terminal.
Packing & Delivery
Packing
The package of DWSAN605 is a 340*340*230mm carton for one light. The weight of one light is 4.5Kg after packing.
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
