Home > Products > COLREGS 3NM LED Solar Marine Boat Lighting Navigation Safety Equipment

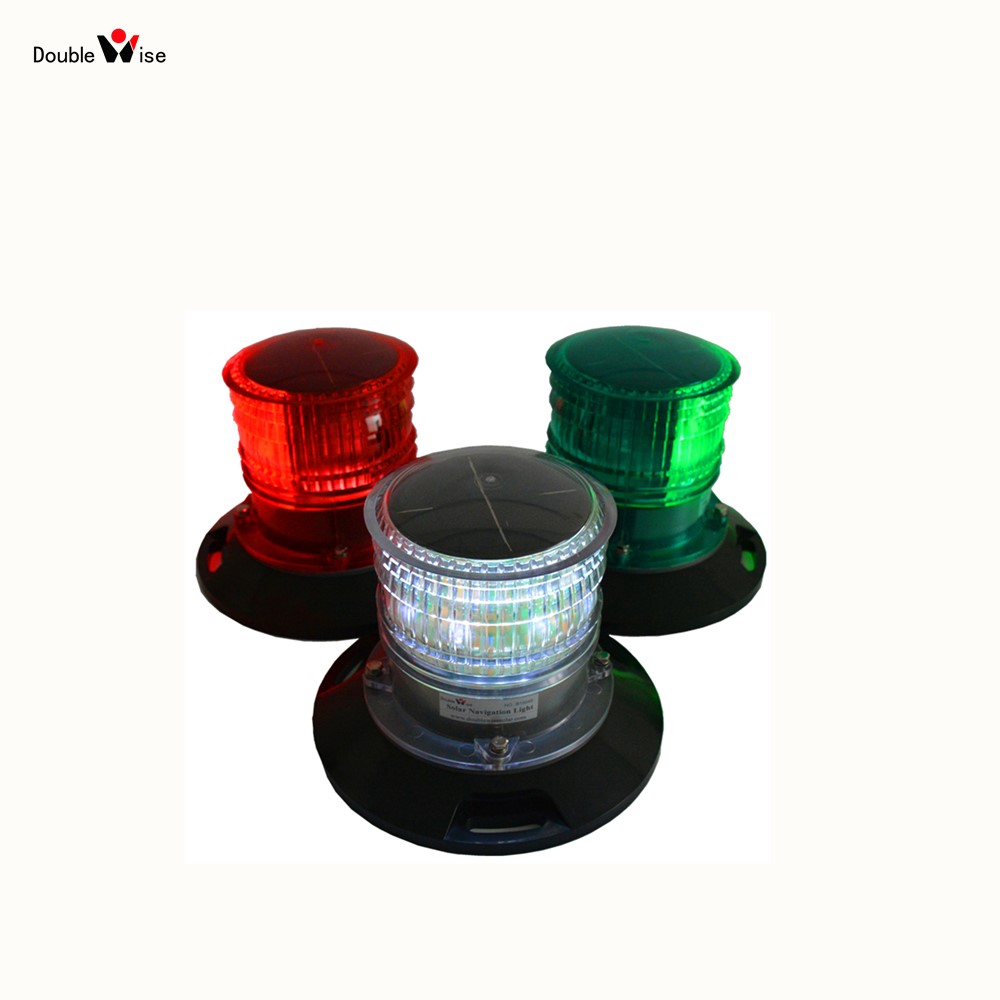

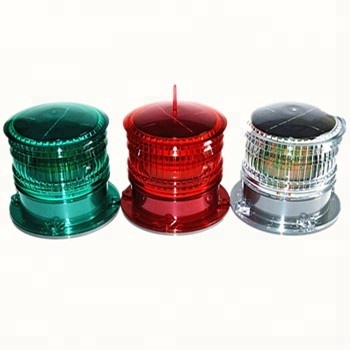

COLREGS 3NM LED Solar Marine Boat Lighting Navigation Safety Equipment
Click on the image to view the original image
Product： views：4COLREGS 3NM LED Solar Marine Boat Lighting Navigation Safety Equipment
Branch： Doublewise
Type： Mono-crystalline
Size： 17X17X17 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shaanxi, China
Light Source:
LED
Input Voltage(V):
2.4
Lamp Luminous Flux(lm):
120
CRI (Ra>):
85
Working Temperature(℃):
-40-70
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE
Warranty(Year):
1
Brand Name:
Doublewise
Model Number:
DWS305/3NM
Application:
Navigation light, marine buoy, wharf, water tower
Power Supply:
Solar
Beam Angle(°):
15
Light Output:
LED strobe lights for warning safety
Color:
Blue Green Red Transparent(white) Amber
Type:
Mono-crystalline
Visibility:
3NM
Minimum Autonomy:
100Hours
Mounting Option:
4 boltsorMagnetic base
Certificate:
ISO9001,CE,BV

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X17X17 cm
Single gross weight:
1.5 kg
Package Type:
COLREGS 3NM LED Solar Boat Lighting Marine Navigation Equipment Packing detaills are, 6pcs light in One carton, total size:540*360*200mm , total G.W.:9kg
Lead Time:
Quantity(Piece)1 - 6>6
Est. Time(days)15To be negotiated
Video Description

COLREGS 3NM LED Solar Marine Boat Lighting Navigation Safety Equipment
Product Description

DWS305/3NM is a 3NM solar marine navigation lantern specially designed for the navigation safety of the non-powered seagoing vessels such as Barge, Dredger or Tug boats etc.. It complies with COLREGS (1972), UL 1104 and EN 60945(2002). It has the characteristics of solar self-contained, durable, anti-UV & easy-installation and can be controlled by a remote controller if necessary. The light can be easily installed on vessels without cable and professional training.

Features and benefits


Steady-on and its visibility: 3NM


Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.


Light Output :112.5°Port/Starboard;135°Stern;225° Masthead.


Turns on at dusk and off at dawn automatically.


Completely self-contained.


Charge under nearly all weather conditions and up to 120 hrs of operating capacity from a full charge.


Individual dome can protect the solar panel and raise its efficiency.


Lens is polycarbonate with anti-UV which is produced by Bayer.


Manufactured to ISO9001:2015 QAS and certified CE.

Product Parameters
Typical Application
Product Selection
View All Products...
Company Profile
More Information...
Certifications
FAQ

1.What kind of vessels are suitable for using solar navigation light?


  Using solar navigation lanterns is a best choice for non-powered vessels such as barge, Dredger, Tug or Tow boats etc..



2.Is there an adaptor that is suitable for a variety of installation methods?


Yes, there is the installing adapter Flange Base as follows. In order to better heat insulation and waterproof, we recommend to use it.

Packing & Delivery

Packing

The package of DWS305/3NM is a 540mm*360mm*200mm carton that can be loaded with 6 lights.Each light has a small carton 170mm*170mm*170mm.The weight of one light   is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .


Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
