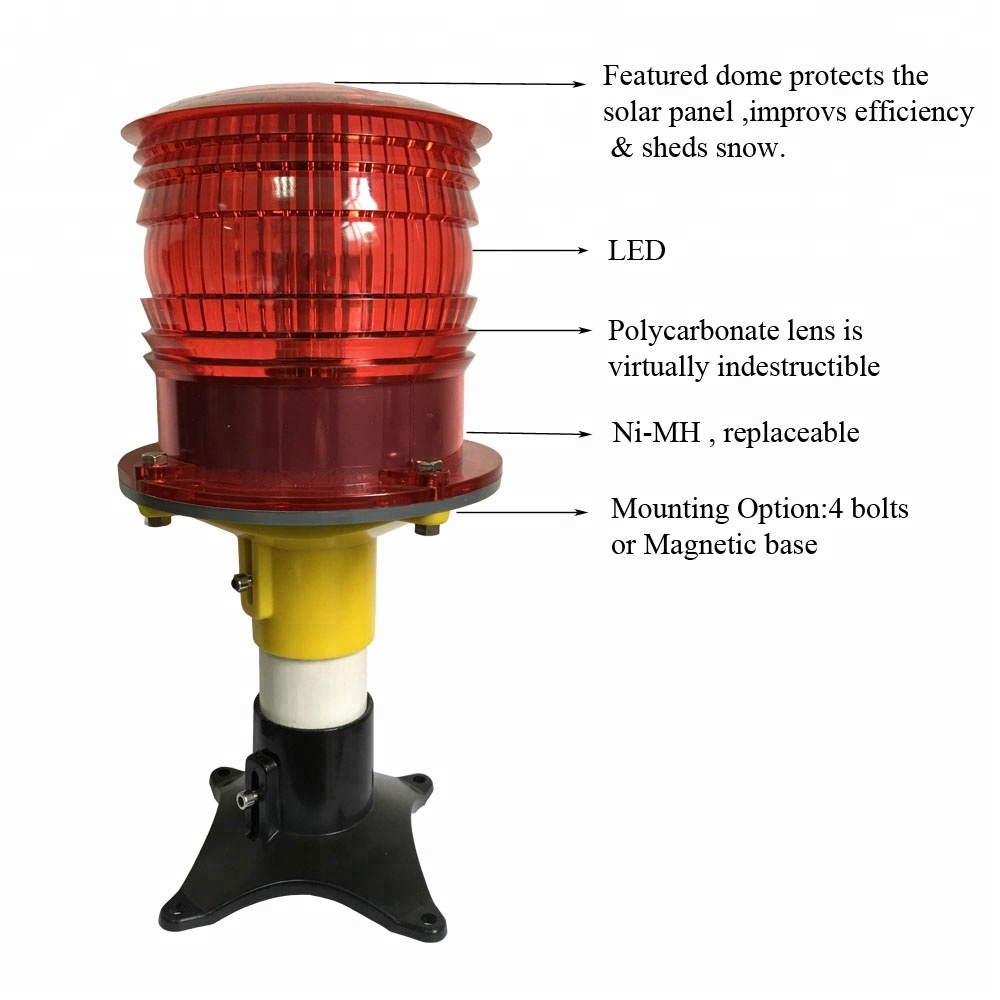

FAA L810 Led Tower Chimney Building Aircraft Obstruction Solar Aviation Warning light
DWS301A is a classical FAA L810 Led Tower chimney building Aircraft Obstruction Solar Aviation Warning light with the characteristicsofself-contained, durable and anti-UV .It is widely usedin the Aviation Obstacle Warning of Telecommunication/Power Towers,Chimneys,Cranes,High-Buildings and other dangerous Prominent Parts as a steady-burning L-810 or a low-intensity Type A of ICAO.
It installs in minutes and requires no maintenance or servicing for up to five years.
Features and Benefits
Red,Steady-on and its intensity is more than 10cd.
Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.
Turns on at dusk and off at dawn automatically.
To charge under nearly all weather conditions and its minimum autonomy up to 70 hrs from a full charge.
Completely self-contained and waterproof IP65.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Individual dome can protect the solar panel and raise its efficiency.
Manufactured to ISO9001:2015 QAS and certified CE.
Typical Applications
• Crane
• High-Building
•Water or Cooling Tower
•Chimney
• Wind Power Generator
Solar Wind Vane Light
Medium-intensity Solar Obstruction Light DWS702
Solar Aviation Light
DOUBLEWISE engages in solar self-contained lights since 2001 and has become an energetic team in solar lighting,warning and alarm system:11 Chinese patents,15 years" experience and 9600 square meters facility.
Our Mission: To Charge ourselves in thought and technology,to light others!
Our Vision: To be the most reliable global provider of creative solar and LED products,services and solutions.
• Drive quality into all we do;
• Easy operation,Compact,Endless realiability and Durability;
• Details matter.
According to ICAO standards,the characteristics of low-intensity obstacle lights are as follows.
Light Type Color Signal Type/(flash rate) Peak Intensity(cd) Intensity(cd) at given angles +6° +10°
Low-intensity,Type A Red Fixed 10 Min. 10 Min. 10 Min.
(fixed obstacle)
Low-intensity,Type B Red Fixed 32 Min. 32 Min. 32 Min.
(fixed obstacle)
Low-intensity,Type C Yellow/Blue Flashing 40 Min.
(mobile obstacle) (60~90fpm) 400 Max.
Low-intensity,Type D Yellow Flashing 200 Min.
(Follow-me Vehicle) (60~90fpm) 400 Max.
2.Is there the installation accessory?
Yes,there is the Flange Base for easy installation.
Packing
The package of DWS301A is a 540*360*200 carton that can be loaded with 6 lights.Each light has a small carton 170*170*170.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
