Overview
Quick Details
- Place of Origin:
- Shaanxi, China
- Light Source:
- LED
- IP Rating:
- IP65
- Certification:
- CE
- Model Number:
- DWSAN605S
- Application:
- Airport Light
- Power Supply:
- Solar
- Control Model:
- Remote Control
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 36X28X17 cm
- Single gross weight:
- 3.0 kg
- Package Type:
- One Packing Box can includes 6 lights: 540*360*2109KG
- Lead Time:
Quantity(Set) 1 - 8 >8 Est. Time(days) 15 To be negotiated
Video Description
Product Description

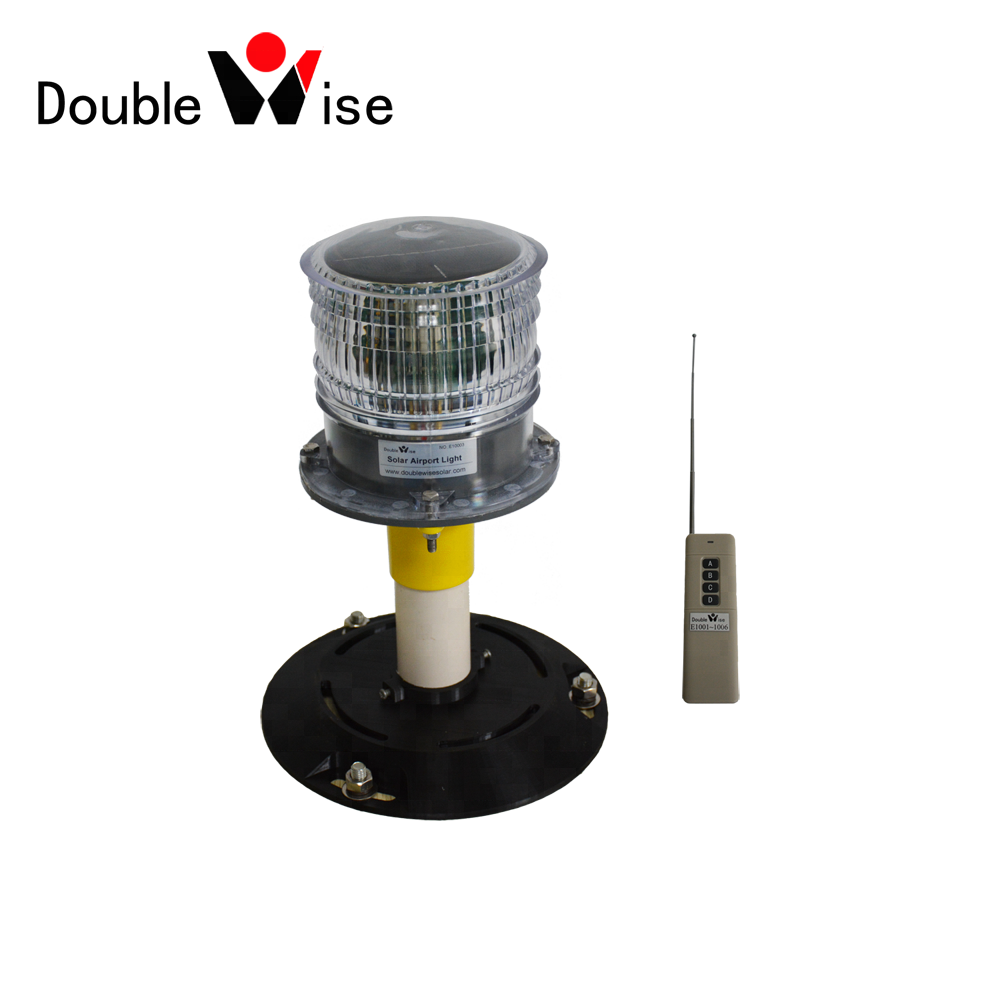

Doublewise ICAO led solar powered airfield runway edge light
DWSAN605S is a wireless solar runway edge light that complies with ICAO Annex 14 Volume Ⅰand FAA. It meets traditional airfield lighting in a low-cost, easy-to-install and low-maintenance way. Because of the characteristics of self-contained, durable and anti-UV, it can be suitably used for Airfield Ground Lighting system without High-voltage and cabling. It has operated and tested maintenance-free for many years in some airfields including USA, Brazil, Pakistan, Maldives, Canada, Australia and China etc..
Features and Benefits
The Wireless Remote Controller can provides on-demand operations from up to 1Km away.
Color in 180° white +180° yellow ,180° Red +180° Green or 180° white +180° white.
3-step intensity adjustment.
High-efficiency mono-crystalline solar panel and long-lasting Ni-Mh battery.
Lens is made from durable, anti-UV Bayer® polycarbonate.
Optional NVG operations.
Manufactured to ISO9001:2015 QAS and certified CE.
Product Parameters
Typical Applications
Product Selection
Company Profile
Certifications
FAQ
1. What are benefits of the Solar Airport Lighting?
In general,the solar airport lighting is the better choice in the following cases:
•Airfields that are not needed to fly at night every day;
•Airstrips not easily connected the electrical cable or without electricity;
•Airport renovation or temporary airports.
There are many benefits of Solar Airport Lighting System as follows:
• No High Voltage | • No Isolation Transformers | • No Base Cans |
• No cabling | • No Cable Conduits | • No Grounding |
• No CCRS | • No Vault | • No Bulbs |
• No Glass Lens |
2. Why choose DOUBLEWISE Solar Airport Lights?
•Low Cost
•Low Maintenance
•Advanced Technology
•Complete Compliance
•Easy Installation and Operatio
•Flexible Movement and Deployment
3.Can the remote control be achieved in the Airport Tower for solar navigation lights?
Yes, these lights can be controlled to turn on/off and adjust the intensity by a wireless control terminal.
4.Is there the Fragile Pole complied with IACO?
Yes,there is the fragile pole and complies with IACO Annex 14,Volume I as follows.
Packing & Delivery
Packaging
The package of Doublewise solar airfield runway edge light is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The gross weight of each light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg.
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
