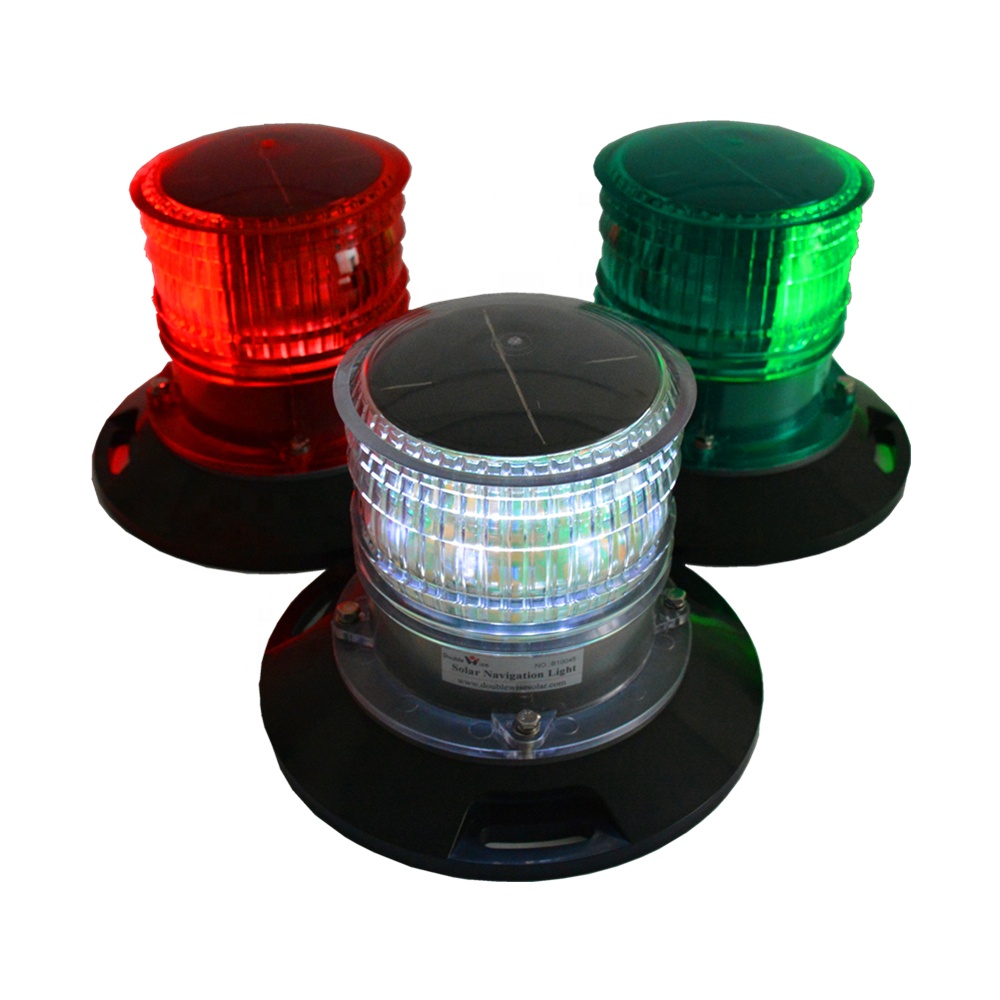

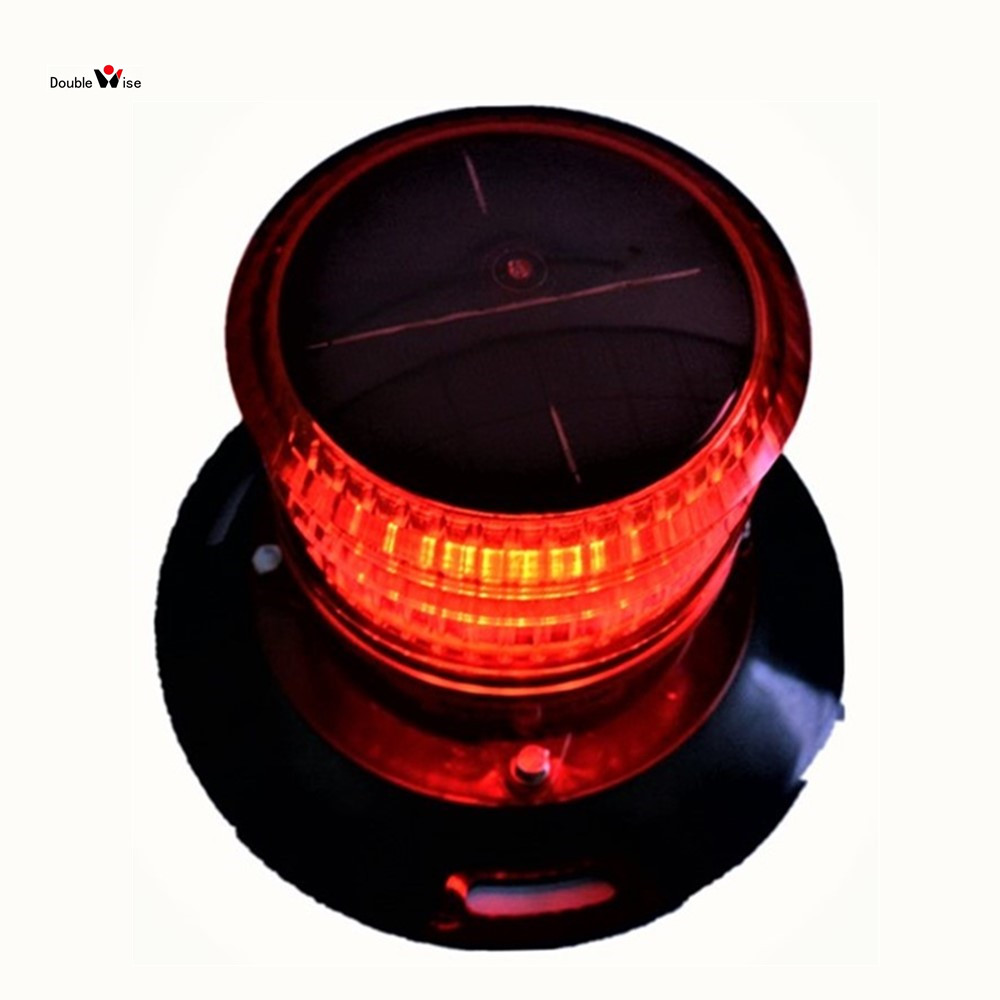

DWS305/3NM is a 3NM solar marine navigation lantern specially designed for the navigation safety of the non-powered seagoing vessels such as Barge, Dredger or Tug boats etc.. It complies with COLREGS (1972), UL 1104 and EN 60945(2002). It has the characteristics of solar self-contained, durable, anti-UV & easy-installation and can be controlled by a remote controller if necessary. The light can be easily installed on vessels without cable and professional training.
Product Description
Doublewise LED Marine Signal SolarBarge/Vessel Navigation Lights
Features and benefits
Steady-on and its visibility: 3NM
Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.
Light Output : 112.5°Port/Starboard;135°Stern;225° Masthead.
Turns on at dusk and off at dawn automatically.
Completely self-contained.
Charge under nearly all weather conditions and up to 120 hrs of operating capacity from a full charge.
Individual dome can protect the solar panel and raise its efficiency.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS and certified CE.
SPECIFICATIONS | ||||||
Peak Intensity (360°average) | White | 26cd | ||||
Red | 24cd | |||||
Green | 25cd | |||||
Amber | 20cd | |||||
Visible Range | 3NM | |||||
Horizontal Output | 112.5° 135° 225° 360° | |||||
Vertical Output | 7.5° | |||||
Minimum Autonomy | 100Hrs | |||||
Available Color | Red White Green Amber | |||||
On/Off Level | 60/100 Lux | |||||
Lifespan of LEDs | up to 100,000hrs | |||||
Solar Module | mono-crystalline, 1.5Watts, 16% | |||||
Battery | Ni-MH, 2.4V/4.8Ah, replaceable | |||||
Lens Material | UV resistance PC | |||||
Temperature Range | -40℃ to +80℃ | |||||
Waterproof | IP67 | |||||
Weight | 0.9kg | |||||
Size | 166*166*155mm | |||||
Typical Application
Product Selection
Company Information
Certifications
FAQ
1.What kind of vessels are suitable for use in solar navigation light?
Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..
2. Can this lantern easily be turned off when it isn't used for a long period?
Yes, there is the FlangeBase as follows. For better heat insulation and waterproof, we recommend to use it.
Packing & Delivery
Packaging | ||
Size | 540*360*200mm | |
Weight | Total G.W.:9kg | |
Packaging Details | Each light carton: 170*170*170mm N.W.:0.9kg; G.W.:1.5kg 540*360*200mm carton size contents 6 lights , total G.W.:9kg | |
