Home > Products > Steady-On FAA l810 or ICAO Low-intensity Solar Powered Led Aviation Obstruction Light

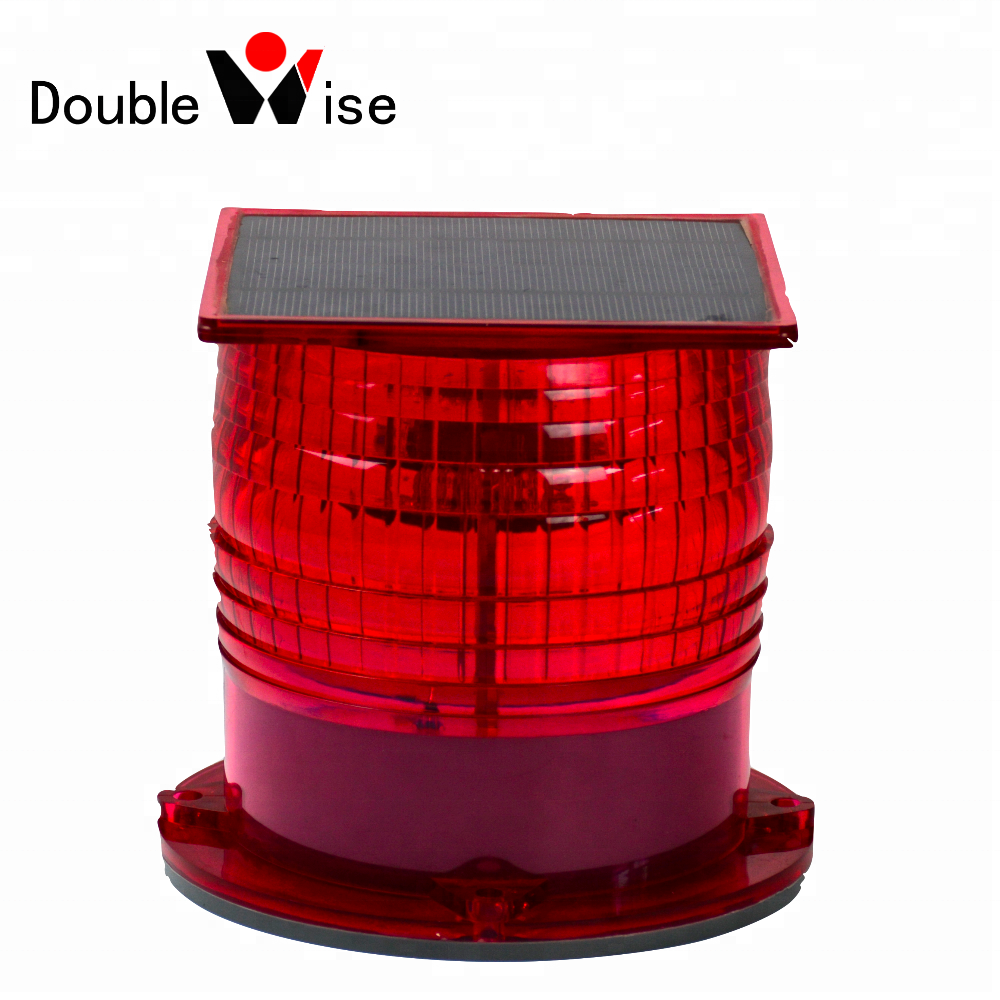

Steady-On FAA l810 or ICAO Low-intensity Solar Powered Led Aviation Obstruction Light
Click on the image to view the original image
Product: views:4Steady-On FAA l810 or ICAO Low-intensity Solar Powered Led Aviation Obstruction Light
Branch: DoubleWise
Type: Aviation Obstruction Lights
Size: 17X17X17 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
4.8
Lamp Power(W):
2.7
CRI (Ra):
85
Color Temperature(CCT):
2000-6000
Beam Angle(°):
360
IP Rating:
IP67
Certification:
BV, CE
Emitting Color:
Red Green White Amber Blue
Lamp Body Material:
PC
Base Type:
E27
Light Source:
LED
Place of Origin:
Shaanxi, China
Brand Name:
DoubleWise
Usage:
high building, chimney, aairport, communication tower, oil platform

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X17X17 cm
Single gross weight:
1.5 kg
Package Type:
Steady-On FAA l810 or ICAO Low-intensity Solar powered Led Aviation Obstruction Light packaging is a 540*360*200 carton that can be loaded with 6 lights.Each light has a small carton 170*170*170.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
Lead Time:
Quantity(Set)1 - 6>6
Est. Time(days)15To be negotiated
Video Description

Doublewise High Quality IP68 Solar Aviation Obstruction LED Warning Light

Steady-On FAA l810 or ICAO Low-intensity Solar Powered Led Aviation Obstruction Light



Product Description


Steady-On FAA l810 or ICAO Low-intensity Solar Powered Led Aviation Obstruction Light DWS501A is a solar aviation warning light with the characteristics  of  self-contained, durable and anti-UV .It is widely used  in the Aviation Obstacle Warning of Telecommunication/Power Towers,Chimneys,Cranes,High-Buildings and other dangerous Prominent Parts. It installs in minutes and requires no maintenance or servicing for up to five years.



Features and Benefits





Red,Steady-on and its intensity more than 32cd.

Solar panel 2.7Wp, replaceable Ni-HM battery 4.8Ah/4.8V.

Turns on at dusk and off at dawn automatically.

Completely self-contained and waterproof IP65.

Lens is polycarbonate with anti-UV which is producedby Bayer.

Individual dome can protect the solar panel and raise its efficiency.

Manufactured to ISO9001:2015 QAS and certified CE and BV.



DWS501A SPECIFICATIONS

Light Output

STEADY ON, Red

Standards

ICAO Annex 14 Vol. Ⅰ and FAA AC 70/7460-1k

Intensity

            ≥32cd

Visibility

           5KM

Horizontal Output

            360°

LED Numbers

           12PCS

Minimum Autonomy

150hrs



Latitude Range

55°S  to  55°N

On/Off Level

60/100 Lux

Lifespan of LEDS

up to 50,000 Hrs

Solar panels

Mono-crystalline;Maximum Power 2.7Wp;Efficiency 16%

Battery

Ni-Mh , replaceable;4.8Ah/4.8V

Lens Material

Polycarbonate

Weight

1.2kg

Mounting Option

4 bolts  or   Magnetic base

Temperature Range

-40℃ to +80℃

Waterproof

IP65

Quality Assurance

ISO9001:2008

CE

CTR090817073E

Patents

ZL201430444455.3

Alarm output

Optional

Typical Application
  •  Iron Tower
  •  Crane
  •  Wind Power Generator
  •  Water or Cooling Tower
  •  Chimney
  •  High-Building



By now, there are 120,000 sets of Doublewise High Quality IP68 Solar Aviation Obstruction LED Warning Light operating in more than 80 countries all over the world. Eight Chinese patents and over 20 kinds of solar products are a reward for our efforts.





Company Information

 Our Mission is to charge ourselves in thought and technology,then to light others. At first we must raise our understanding ability about nature and humanity by repeating continuously this process: Learning, Practicing, Thinking and Solving; Secondly, these ability can help us have a better life; Finally, we can also help other people around us.
Our Vision is to be the most reliable global provider of innovative solar and LED products, services and solutions.
1. Drive quality into all we do;

2. Strictly abide by the principles of product design: Easy operation, Compact, Endless reliability and Durability;
3. Details matter.







Home...

FAQ

 Q1. How to proceed an order for led light?

    1.Let us know your requirements or application.
    2. We quote according to your requirements or our suggestions.
    3.Customer confirms the samples and places deposit for formal order.
    4.We arrange the production.

Q2. How about your delivery time?
  Generally, it will take 5 to 15 days after receiving your advance payment. The specific delivery time depends
  on the items and the quantity of your order.

Q3. How do you make our business long-term and good relationship?

  1. We keep good quality and competitive price to ensure our customers benefit ;
  2. We respect every customer as our friend and we sincerely do business and make friends with them,
      no matter where they come from.

Q4: Do you offer guarantee for the products?

    Yes, we offer 1-3 years warranty to our products.



Packaging & Shipping



Packing

The package of DWS502 is a 540*360*200 carton that can be loaded with 6 lights.Each light has a small carton 170*170*170.The weight of one light   is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .



Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
