Home > Products > Doublewise Boat Signal Solar Powered LED Marine Navigation Light
Doublewise Boat Signal Solar Powered LED Marine Navigation Light
Click on the image to view the original image
Product： views：3Doublewise Boat Signal Solar Powered LED Marine Navigation Light
Branch： Doublewise
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
2.4
Lamp Power(W):
1
Lamp Luminous Flux(lm):
120
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra):
86
Color Temperature(CCT):
Warm White
Beam Angle(°):
360
IP Rating:
IP65
Certification:
BV, CE
Emitting Color:
Red, Green, White
Lamp Body Material:
PC
Base Type:
E27
Light Source:
LED
Place of Origin:
Shaanxi, China
Brand Name:
Doublewise
Visible Range::
3NM
Autonomy::
100Hrs
Light Color::
Red, Green, White,Amber
Battery Capacity::
Ni-MH 5Ah/2.4V
Application::
Dredger Tug Boat Tow Yacht
Certification::
CE, BV, ISO9001
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month Solar LED Marine Barge Signal Navigation Light
Packaging & Delivery
Packaging Details
Solar LED Marine Barge Signal Navigation Light Packing detaills are,
Each light carton: 170*170*170mm N.W.:0.9kg; G.W.:1.5kg
6pcs light in One carton, total size:540*360*200mm , total G.W.:9kg
Port
Shanghai,Shenzhen
Lead Time:
Quantity(Sets)1 - 10 >10
Est. Time(days)10To be negotiated
Product Description
Doublewise Boat Signal Solar Powered LED Marine Navigation Light

DWS 305/3NM Doublewise Boat Signal Solar Powered LED Marine Navigation Light is an industrial strength solar powered light designed for the harshest environments. This model is available in red, green, white and amber colors for dock lighting and safety applications. Available in a Constant Mode and Flashing Mode. Great for dock lighting, marinas, boat houses, safety lighting, channel markers, buoys , obstruction lighting, mooring lights.Super bright LEDs and powerful solar panel provide all night illumination. Mounts virtually anywhere in minutes providing a fast cost effective solution. Easy hassle free mounting, no wires, no mess, no electrical cost.
Factory Price Solar LED Marine Barge/Deck Signal Navigation LightFactory Price Solar LED Marine Barge/Deck Signal Navigation Light Light
SPECIFICATIONS

Peak Intensity (360°average)
White
26cd
Red
24cd
Green
25cd
Amber
20cd
Visible Range
3NM
Horizontal Output
112.5° 135° 225° 360°
Vertical Output
7.5°
Minimum Autonomy

100Hrs
Available Color
Red White Green Amber
On/Off Level
60/100 Lux
Lifespan of LEDs
up to 100,000hrs
Solar Module
mono-crystalline, 1.5Watts, 16%
Battery
Ni-MH, 2.4V/4.8Ah, replaceable
Lens Material
UV resistance PC
Temperature Range
-40℃ to +80℃
Waterproof
IP67
Weight
0.9kg
Size
166*166*155mm

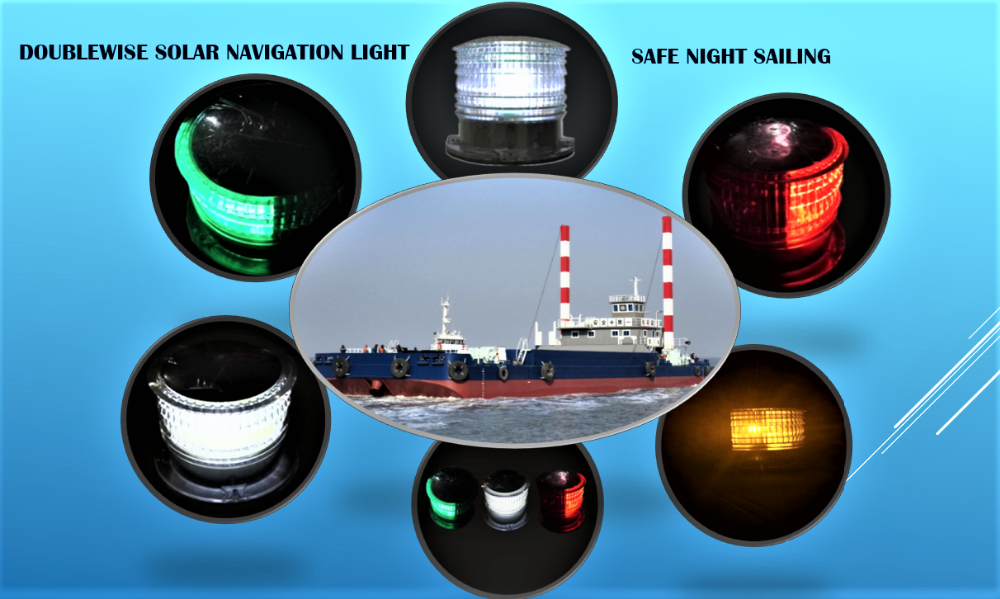

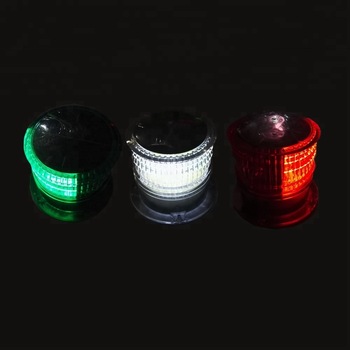

Detailed Images


Main Features & Benefits

￭ Flashing and three nautical mile of visible range
￭ Sturdy polycarbonate construction
￭ Lens available in all approved IALA colours

￭ Light and durable, designed for long term use in the harshest marine environments
￭ Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion

Main Features & Benefits

￭ Installs in minutes&operates maintenance free for up to 5 years
￭ Ni-MH battery for long service life& wide temperature range
￭ Turns on at dusk and off at dawn automatically.
￭ Manufactured to ISO9001:2008 QAS .
￭ Optionally integrated 16 flashing IALA
￭ Optionally integrated GPS synchronization/positioning
Typical Application
￭Port/Tug Boat
￭dock entrance&walkway
￭Offshore gas&oil platform
￭Buoy marking
￭Shore beacon
￭Pier instructions
￭ Harbor/Dredger

By now, there are 120,000 sets of Double Wise Factory Price Solar LED Marine Barge/Deck Signal Navigation Light or lighting lamps operating in more than 80 countries all over the world. Eight Chinese patents and over 20 kinds of solar products are a reward for our efforts.

Related Products

            DWS305/5NM

             DWS305/4NM


              DWS305/7NM


Company Information

Our Mission is to charge ourselves in thought and technology,then to light others. We focus on providing the best products and service to clients and which is the reason for Doublewise"s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.


Home...

We will reply you for your inquiry in 24 hours. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

Certifications
Packing & Delivery
Packaging
Size
540*360*200mm
Weight
Total G.W.:9kg
Packaging Details
Each light carton: 170*170*170mm N.W.:0.9kg; G.W.:1.5kg

540*360*200mm carton size contents 6 lights , total G.W.:9kg
FAQ

 1.What kind of vessels are suitable for use in solar navigation light?


Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..


2. Can this lantern easily be turned off when it isn"t used for a long period?


Yes,you can easily turn off this lantern by a touch switch in the side of it.We also suggest that you turn off it when it isn"t used for a long time.So it is only charged during the day and discharged at night.


3.Is there an attachment that is suitable for a variety of installation methods?


Yes,there is the adapter as follows. In order to better heat insulation and waterproof,we recommend to use a pole that consists of two adapters and a section of PVC or steel pipe.

 Adapter
Material:ABS engineering plastic
Colors:Yellow, Black
Dimensions:122mm×122mm×75mm
Connection:Conduits with φ<50mm
Materials of Compatible Conduits:Galvanized Stainless-steel, PVC, Nylon, etc.
Compatibility:DWS30X Series, DWS50X Series, DWS70X Series
