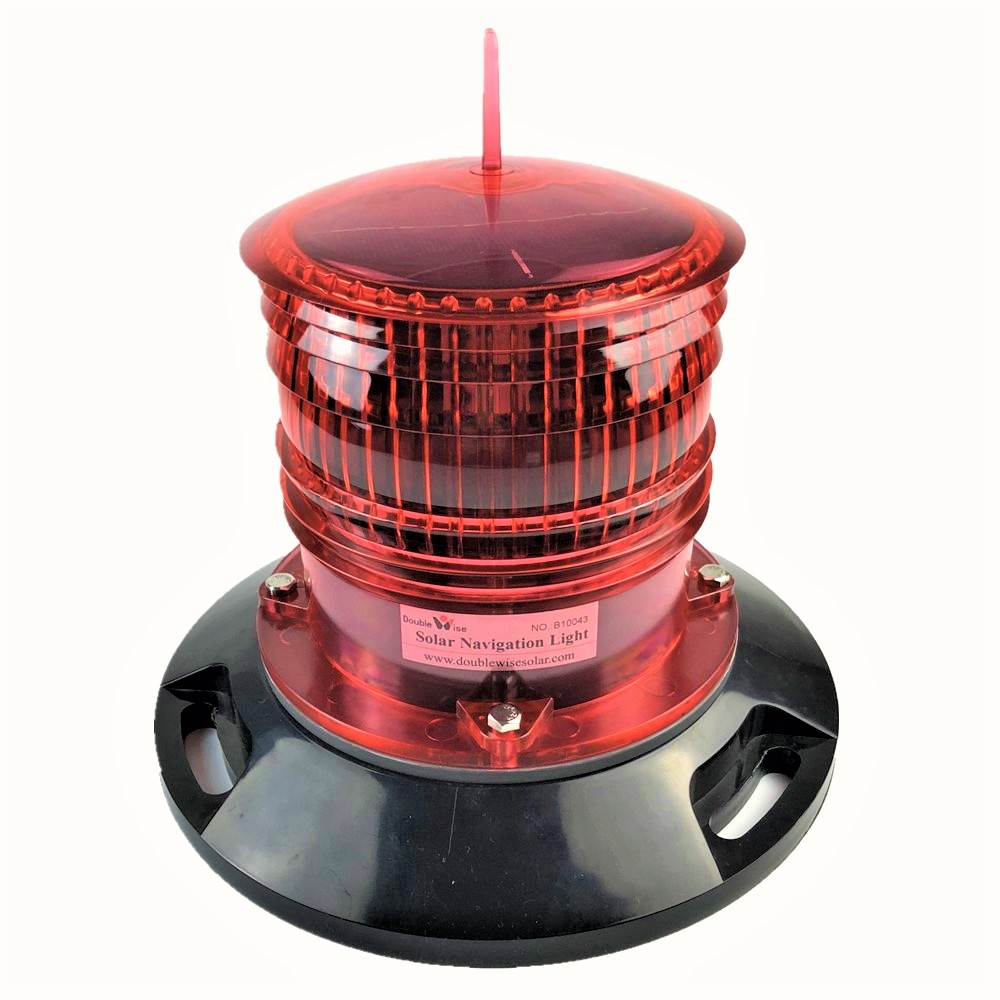

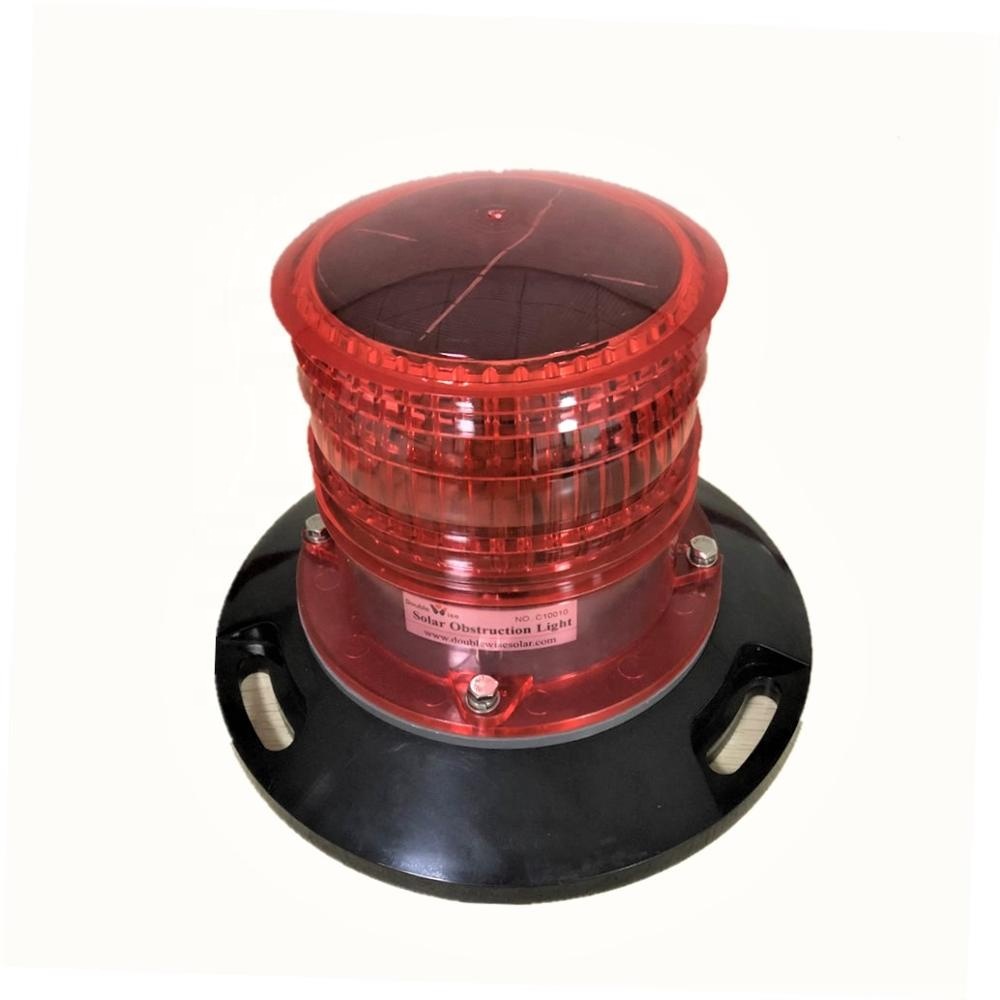

FAA L810 Led Tower Aviation Obstruction Solar Powered Aircraft Obstacle light
Click on the image to view the original image
Product： views：4FAA L810 Led Tower Aviation Obstruction Solar Powered Aircraft Obstacle light
Branch： Doublewise
Type： Aviation Obstruction Lights
Size： 17X17X17 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
DC 2.4V
Lamp Power(W):
0.5
Lamp Luminous Flux(lm):
Red 18000mcd
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra):
85
Color Temperature(CCT):
2000 to 6000
Beam Angle(°):
360 Degree
IP Rating:
IP67
Certification:
BV, CE
Emitting Color:
red
Lamp Body Material:
PC
Base Type:
C6
Light Source:
LED
Place of Origin:
Shaanxi, China
Brand Name:
Doublewise
Solar Panel:
1.5Wp
Battery:
Ni-MH 4.8Ah/2.4V

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X17X17 cm
Single gross weight:
1.5 kg
Package Type:
One Carton: 6 lights, 540*360*200,9Kg.
Lead Time:
Quantity(Set)1 - 6>6
Est. Time(days)12To be negotiated
Video Description
Product Description


FAA L810 Led Tower Aviation Obstruction Solar Powered Aircraft Obstacle light


DWS301A is a classical solar aircraft obstacle light with the characteristicsofself-contained, durable and anti-UV .It is widely usedin the Aviation Obstacle Warning of Telecommunication/Power Towers,Chimneys,Cranes,High-Buildings and other dangerous Prominent Parts as a steady-burning L-810 or a low-intensity Type A of ICAO.

It installs in minutes and requires no maintenance or servicing for up to five years.


 Features and Benefits


Red,Steady-on and its intensity is more than 10cd.

Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.

Turns on at dusk and off at dawn automatically.

Charge under nearly all weather conditions and its minimum autonomy up to 70 hrs  from a full charge.

Completely self-contained and waterproof IP65.

Lens is polycarbonate with anti-UV which is produced by Bayer.

Individual dome can protect the solar panel and raise its efficiency.

Manufactured to ISO9001:2015 QAS and certified CE.

Product Parameters
 Main Specifications
Model      /     Name
                                  DWS301A      /      Solar Obstacle Light
Standards
                              ICAO Annex 14 Vol. Ⅰ and FAA AC 70/7460-1k
Intensity
                                                Steady-burning Red,   more than 10cd
Visibility     /    Source
                                             3Km        /       Ultra-intensity LED
Vertical Divergence
                                                   ±7.5° at 50% intensity
Horizontal Output
                                                                   360°
Minimum Autonomy
                                                            70 Hours
Solar Panel
                        Mono-crystalline , Maximum Power : 1.5 watts , Efficiency:20%
Battery
                                     Ni-Mh battery, Replaceable , 4.8Ah/2.4V
Lens Material  / Weight
                             Polycarbonate        /        0.9kg
Waterproof
                                                                IP65
Quality Assurance
                                ISO9001:2015         CE:  CTR090817073E
Patents
                          Chinese patents:  02224444.1 and 2014304444553
Typical Applications



• Iron Tower

• Crane

• High-Building




•Water or Cooling Tower
•Chimney
• Wind Power Generator

The Red Steady-burning L-810 of FAA


Dimension Drawings


DWS301A in a High-building


The Obstacle Warning in Dalian Site


Related Products

Solar Wind Vane Light

DWS807

Medium-intensity Solar Obstruction Light   DWS702


Solar Aviation Light

DWS501A
Our Company
Certifications
FAQ
1.How to determine the kind of an obstacle light?

According to ICAO standards,the characteristics of low-intensity obstacle lights are as follows.

     Light Type                 Color           Signal Type/(flash rate)    Peak Intensity(cd)    Intensity(cd) at given angles                                                                                                                                                      +6°               +10°
Low-intensity,Type A      Red                      Fixed                            10  Min.                   10 Min.          10  Min.
  (fixed obstacle)
Low-intensity,Type B        Red                      Fixed                            32  Min.                    32 Min.          32  Min.
  (fixed obstacle)
Low-intensity,Type C       Yellow/Blue         Flashing                          40     Min.
   (mobile obstacle)                                       (60~90fpm)                   400  Max.
Low-intensity,Type D       Yellow                  Flashing                          200  Min.
 (Follow-me Vehicle)                                  (60~90fpm)                   400  Max.


2.Is there the Fragile Pole complied with IACO?


Yes,there is the fragile pole and complies with IACO Annex 14,Volume I as follows.

Packing & Delivery

Packing

The package of DWS301A is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light   is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg.


Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
