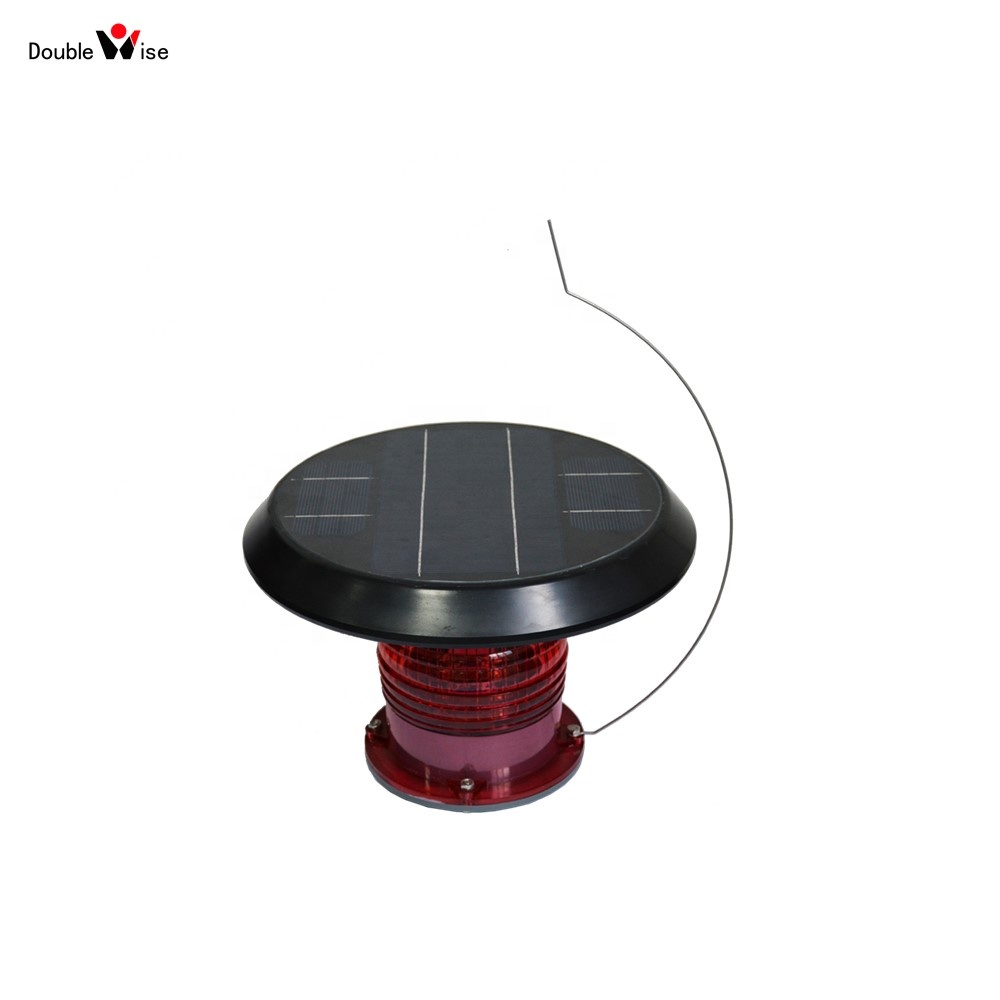

The DWS702 is a high-quality Medium intensity Obstacle Warning Solar-Powered Aviation Tower Obstruction Light which complies with FAA AC70/7460-1k and ICAO Annex 14 Volume Ⅰ. The self-contained design makes it concision, reliability, durability and easy-operation. Because its shape looks like a mushroom, it also is called as "Solar Mushroom Light". It can complete the synchronization of many lamps by GPS and is widely used in Aviation Warning of Iron towers,Chimneys,Buildings,Crane etc..
Product Description
Medium Intensity Obstacle Warning Solar-Powered Aviation Tower Obstruction Light
Features and Benefits
Medium intensity ICAO/FAA flashing patterns.
Solar panel 7.2Wp, replaceable LIthium Battery 16Ah/7.2V..
Light Output : 360° or Any Sector.
Turns on at dusk and off at dawn automatically or by a touch switch.
Completely self-contained and waterproof IP67.
Charge under nearly all weather conditions and its minimum autonomy up to 200 hrs from a full charge.
Lens is polycarbonate with anti-UV which is produced
by Bayer.
Manufactured to ISO9001:2015 QAS.
Product Parameters
Main Specifications | |
Model / Name | DWS702 / Medium-intensity Solar Obstruction Light |
Peak Intensity | 2000 cd ±25% |
Source | Ultra-intensity LED |
Vertical Divergence | ±7.5° at 50% intensity |
Horizontal Output | 360° |
Minimum Autonomy | 200 Hours |
Solar Panel | Mono-crystalline , Maximum Power : 7.2 watts , Efficiency:16% |
Battery | Lithium , 16Ah/7.2V,Replaceable |
Lens Material / Weight | Polycarbonate / 3.4kg |
Waterproof | as per IP67 |
Patents | Chinese patents: 201320285.73.0 Other patents pending |
Optional | GPS Synchronization |
Related Products
Mini Solar Obstruction Light
DWS202
Solar Obstacle Light
DWS501A
Solar Obstruction Light DWS301A
Typical Applications
● Iron Tower
● Crane
● High-Building
● High-Building
● Water or Cooling Tower
● Chimney
● Wind Power Generator
Our Company
Certifications
FAQ
1. How to complete the synchronization of all the lights in an area?
DWS702 accomplishes the synchronization of many lights through the GPS.Because this way is wireless,the number of synchronized lights is unlimited and the cost is more economical than these needed a wire-controller.
2.Is there an attachment that is suitable for a variety of installation methods?
Yes,there is the FlangeBase as follows. In order to better heat insulation and waterproof,we recommend to use it.
Packing & Delivery
Packing
The package of DWS702 is a 350*350*230mm carton that can be loaded with one light.The weight of one light is 6Kg after packing .
