Home > Products > COLREGS Boat Navigation Equipment 3NM Solar Powered LED Marine Signal Light

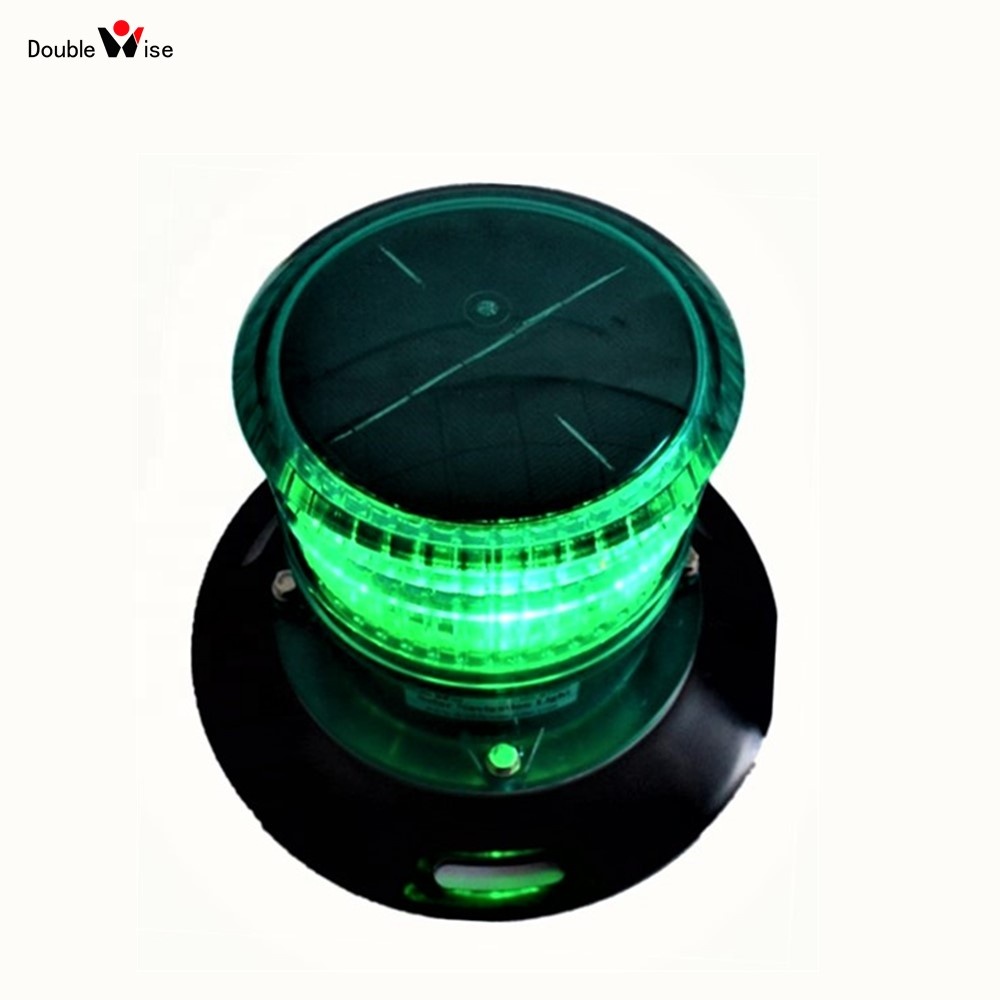

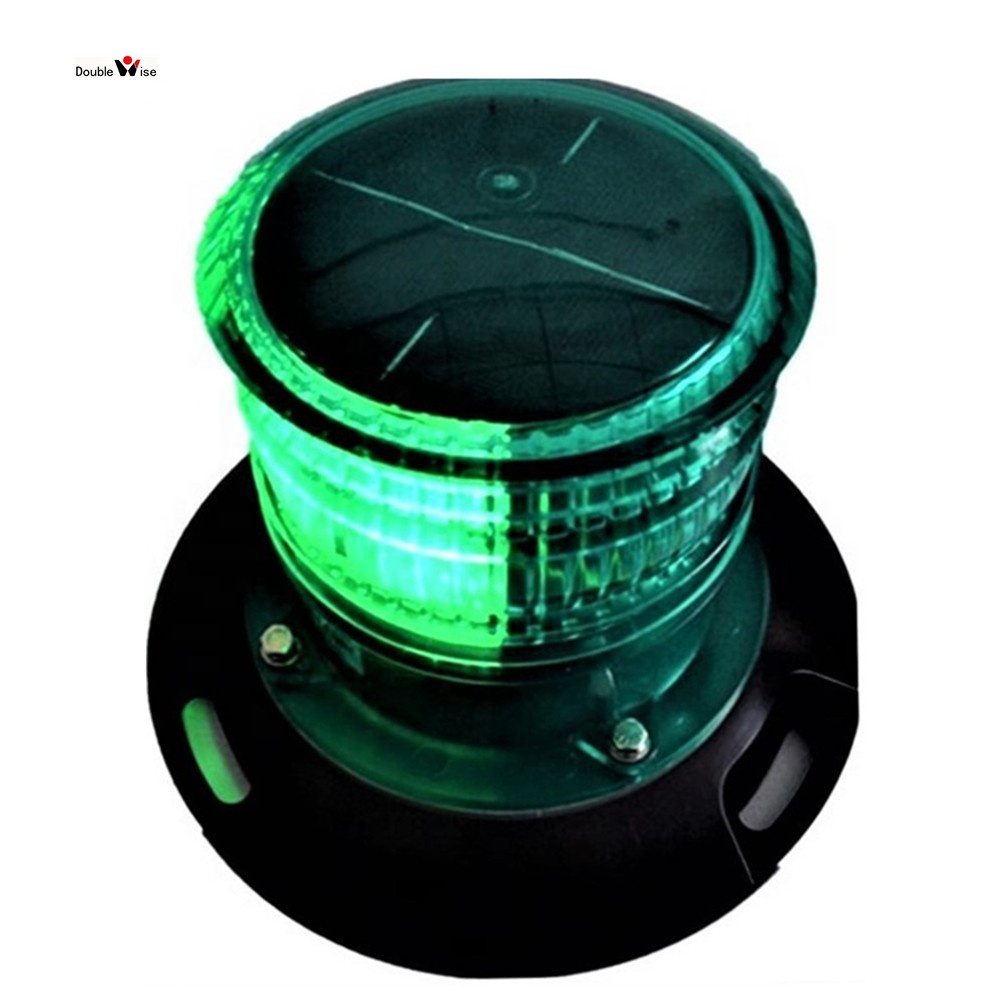

COLREGS Boat Navigation Equipment 3NM Solar Powered LED Marine Signal Light
Click on the image to view the original image
Product： views：3COLREGS Boat Navigation Equipment 3NM Solar Powered LED Marine Signal Light
Branch： Doublewise
Size： 17X17X17 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED, Fluorescent
Item Type:
Pool Lights, Pool Lights
Input Voltage(V):
2.4
Lamp Power(W):
1
Lamp Luminous Flux(lm):
120
CRI (Ra>):
86
Working Temperature(℃):
-40 - 70
Working Lifetime(Hour):
50000
IP Rating:
IP65, IP65
Certification:
CE
Lamp Body Material:
PC, PC
Place of Origin:
Shaanxi, China
Brand Name:
Doublewise
Model Number:
DWS305/3NM
Application:
navigation light
Beam Angle(°):
360
Lamp Luminous Efficiency(lm/w):
120
Lamp Body Material::
UV resistance PC
Battery Capacity::
Ni-MH 5Ah/2.4V
Application::
Barge, Dredger, Tug Boat, Tow Yacht

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X17X17 cm
Single gross weight:
1.5 kg
Package Type:
Each light carton: 170*170*170mm N.W.:0.9kg; G.W.:1.5kg 6pcs lights in One carton, total size:540*360*200mm , total G.W.:9kg
Lead Time:
Quantity(Piece)1 - 6>6
Est. Time(days)15To be negotiated
Video Description
Product Description

COLREGS Boat Navigation Equipment 3NM Solar Powered LED Marine Signal Light

DWS305/3NM is a 3NM solar marine navigation lantern specially designed for the navigation safety of the non-powered seagoing vessels such as Barge, Dredger or Tug boats etc.. It complies with COLREGS (1972), UL 1104 and EN 60945(2002). It has the characteristics of solar self-contained, durable, anti-UV & easy-installation and can be controlled by a remote controller if necessary. The light can be easily installed on vessels without cable and professional training.

Features and benefits


Steady-on and its visibility: 3NM


Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.


Light Output : 112.5°Port/Starboard;135°Stern;225° Masthead.


Turns on at dusk and off at dawn automatically.


Completely self-contained.


Charge under nearly all weather conditions and up to 120 hrs of operating capacity from a full charge.


Individual dome can protect the solar panel and raise its efficiency.


Lens is polycarbonate with anti-UV which is produced by Bayer.


Manufactured to ISO9001:2015 QAS and certified CE.

Product Parameters
Typical Application
Product Selection
Company Information

More Information

Certifications
FAQ

 1.What kind of vessels are suitable for use in solar navigation light?


Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..


2. Can this lantern easily be turned off when it isn't used for a long period?


Yes,you can easily turn off this lantern by unplugging the battery connecting wire inside it.

We also suggest that you turn off it when it isn't used for a long time.So it is only charged during the day and discharged at night.


3.Is there an attachment that is suitable for a variety of installation methods?


Yes,there is the adapter as follows. In order to better heat insulation and waterproof,we recommend to use it.

Packing & Delivery
Packaging
Size
540*360*200mm
Weight
Total G.W.:9kg
Packaging Details
Each light carton: 170*170*170mm N.W.:0.9kg; G.W.:1.5kg

540*360*200mm carton size contents 6 lights , total G.W.:9kg
